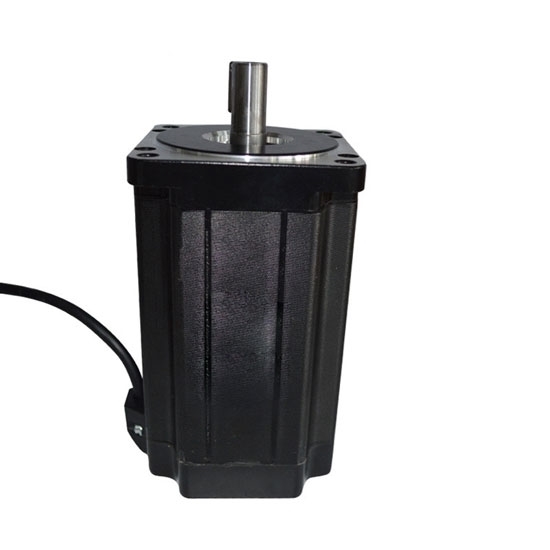

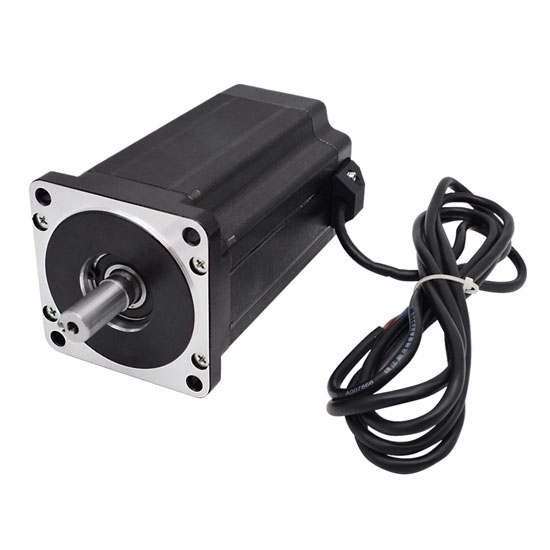

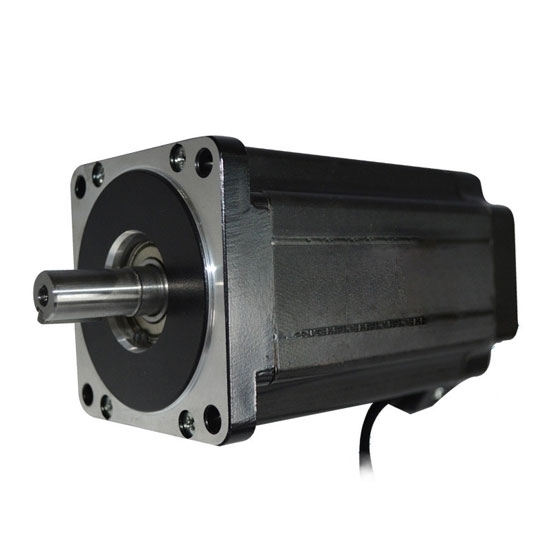

Nema 34 Stepper Motor, 3 Phase, 3A, 6N·m

0 reviews • Write a review

from

$214.38

Ex Tax: $214.38

Stock: In Stock
Model: RDDLZ-STEP-34L300
Weight: 1.00
SKU: RDDLZ-STEP-34L300

Available Options

With Matched Driver

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Favorable price Nema 34 hybrid stepper motor has 125mm length for CNC machine, 3D printer, robot arm, laser cutter and so on. This 3 phase bipolar stepper motor has the best attributes of the variable reluctance stepper motor and a permanent magnet stepper motor.

Physical Specification

Model Number: RDDLZ-FY86TL300A
Matched the Driver Model: RDDLZ-FYTM2205T
Flanged Size: 86 x 86mm (Nema 34)
Motor Length: 125mm
Shaft Diameter: 14mm
Number of Leads: 4 wire
Weight: 3.8kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.2°
Rated Current: 3A
Holding Torque: 6 N·m (600 N·cm, 850 Oz.in)
Phase Resistance: 2Ω
Phase Inductance: 8mH
Rotor Inertia: 3480g·cm²

Dimensions (Unit: mm)

L=125mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: 2 main advantages of stepper motor

Because the stepper motor is no brush, the reliability of this motor is high. Its life depends only on the life of the bearing. As long as the life of the bearing is long enough, the life of the entire device will be very long.
The response of the stepper motor is only determined by the digital input pulse, which can facilitate the use of open-loop control, the structure is simple, and the cost of control is greatly reduced.
