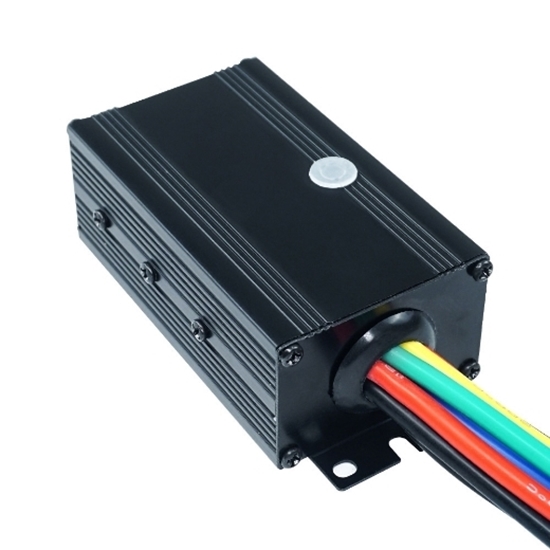

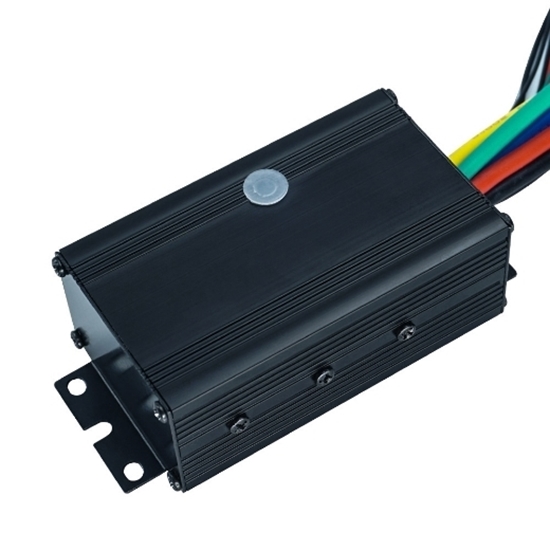

100A 4-20S Electronic Speed Controller (ESC) For Single BLDC Motor

0 reviews • Write a review

from

$279.42

Ex Tax: $279.42

Stock: In Stock
Model: RDDLZ-ESC-100-420S
Weight: 1.00
SKU: RDDLZ-ESC-100-420S

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 100A ESC controller for sale online. BLDC electronic speed controller features 14-84V (4-20S) safe voltage, used in remote control and vehicle applications. The ESC controller can automatically help stabilize your car when it detects a momentary loss of control.

Specifications

Model: RDDLZ-VC-75S-N-100
Voltage: 14V-84V (4-20S)
BEC: 5V@1A
Continuous Current: 100A
Instantaneous Current: 120A
Size: 85mmx50.7mmx33.8mm
EPRM: 150000
Weight: 0.5kg

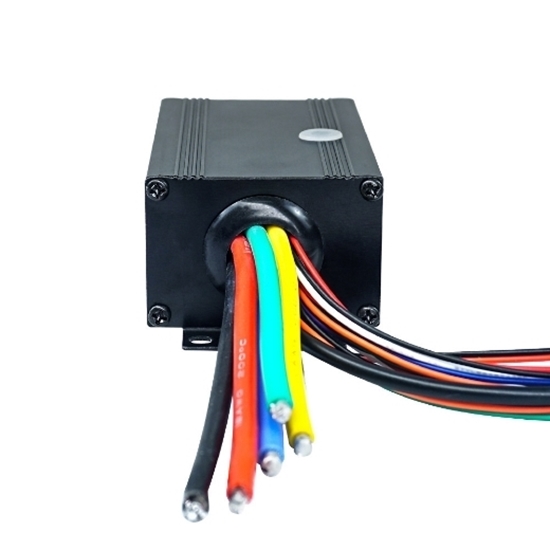

Wire Size: 12 AWG
Regenerative capacity: Yes
Programmable: Yes

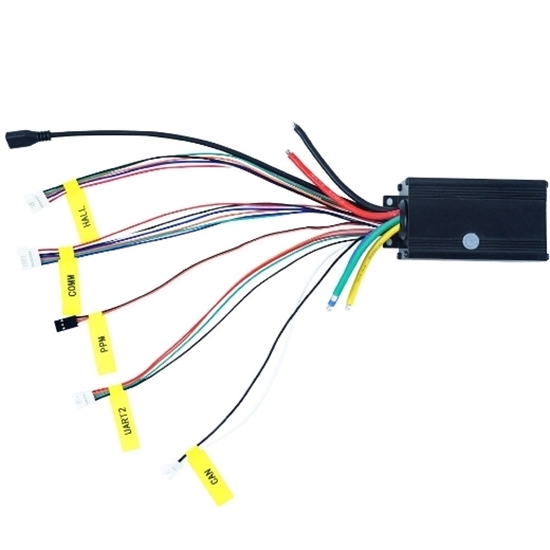

Communication Method: PPM, ADC, NRF, UART
Communication Ports: USB, CAN, UART
Supported Sensors: ABI, HALL, AS5047, AS5048A

Dimension (Unit: mm)

Wiring diagram

Tips: What is an electronic speed controller?

The electronic Speed Controller (ESC) is an important part of the electric propulsion system hardware. It acts like the brain of the system, telling the motor how fast to run based on data signals it receives from the throttle controller.

For smaller applications such as drones and RC vehicles, the controller is named "ESC," while for larger manufacturing applications it might be called an electronic control unit, inverter, or motor controller.
