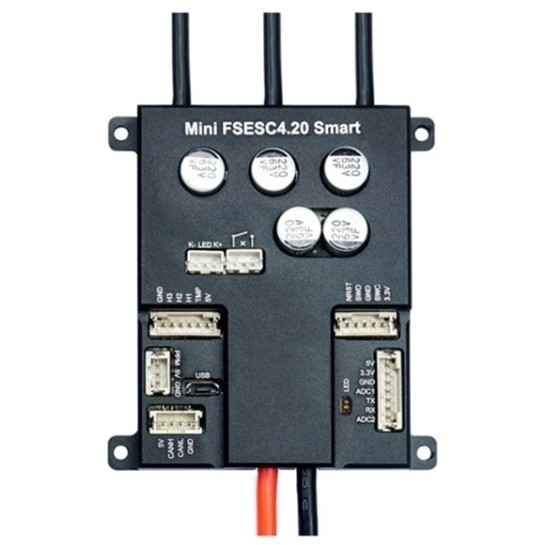

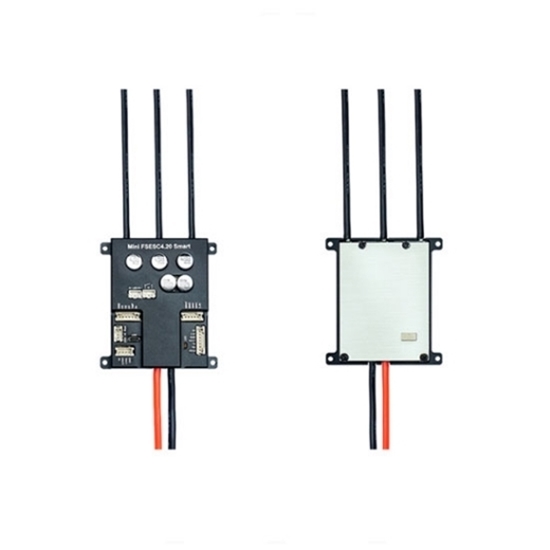

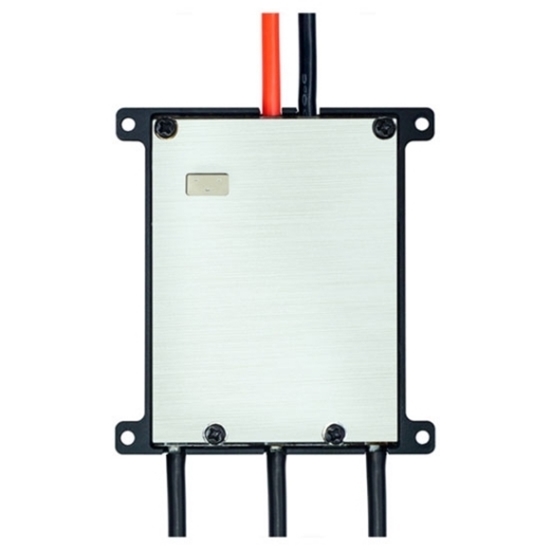

50A 3-12S Electronic Speed Controller (ESC) For Single BLDC Motor

0 reviews • Write a review

from

$455.86

Ex Tax: $455.86

Stock: In Stock
Model: RDDLZ-ESC-50-312S
Weight: 1.00
SKU: RDDLZ-ESC-50-312S

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50A electronic speed controller is used for a brushless motor. Low price brushless ESC controller has a safe voltage of 8V-60V (4-12S) and is designed to automatically help stabilize your car when it detects a momentary loss of control, widely used in remote control and vehicle applications.

Specifications

Model: RDDLZ-ESC-S50A
Voltage: 8V-60V (3-12S)
Firmware: Latest firmware version
Power Current: 50A continuous/200A peak
Signal: PWM input
Communication Port: USB, CAN, UART
Control Modes: BLDC, FOC
Size: 83mmx62mmx22.5mm
Switch Off: Fireproof flower/intelligent version of fireproof flower switch
Input Source: PPM, analog, NRF, NYKO, KAMA, NUNCHUCK
Support Sensor: ABI, HALL, AS 5047, AS5048A

Dimension (Unit: mm)

Wiring diagram

Tips: How does an electronic speed controller control speed?

An ESC or an Electronic Speed Controller controls the brushless motor movement or speed by activating the appropriate MOSFETs to create the rotating magnetic field so that the motor rotates. The higher the frequency or the quicker the ESC goes through the 6 intervals, the higher the speed of the motor will be.
