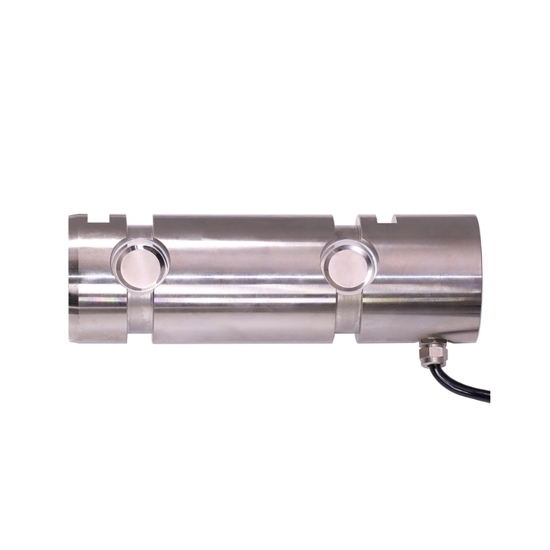

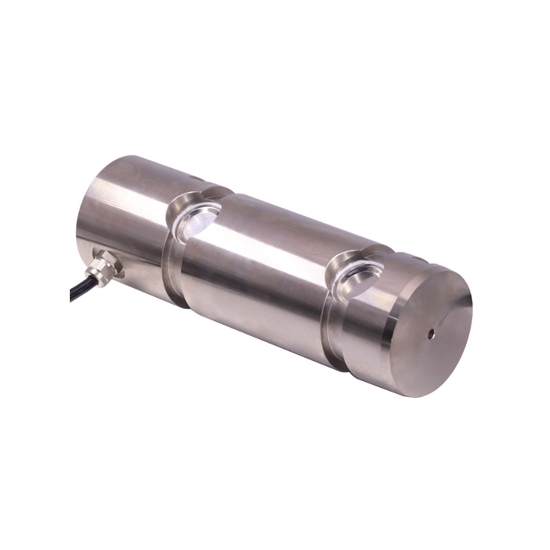

Pin Load Cell For Crane, 2 Ton/5 Ton/10 Ton To 100 Ton

0 reviews • Write a review

from

$326.52

Ex Tax: $326.52

Stock: In Stock
Model: RDDLZ-LC-ZX001
Weight: 1.00
SKU: RDDLZ-LC-ZX001

Available Options

Range

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

The pin load cell has a 0-100 ton range, 2.0 ± 0.01 mV/V sensitivity, 350Ω impedance, and supports up to 300% overload. With a durable hollow shaft design and 5-15V excitation, it’s ideal for cranes, hoists, and industrial lifting systems.

Specification

Model	RDDLZ-DYZX-001
Measuring Range	0-100 ton
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Sensitivity	2.0±0.01mV/V
Non-Linearity	±0.1%F.S.
Hysteresis	±0.1%F.S.
Repeatability	±0.05%F.S.
Creep (30 minutes)	±0.05%F.S.
Zero Output	±2%F.S.
Zero Temp Coefficient	0.05%F.S./10°C
Sensitivity Temp Coeff.	0.05%F.S./10°C
Input Impedance	350±20Ω
Output Impedance	350±5Ω
Safe Overload	150%F.S.
Ultimate Overload	300%F.S.
Insulation Resistance	≥5000MΩ/100VDC
Material	Alloy Steel
Recommended Excitation Voltage	5-15V
Cable Specification	φ5×3m
Cable Tension Strength	98N

Feature

High Accuracy: The load pin load cell offers ±0.1% F.S. accuracy with excellent long-term stability.
Durable Design: Made of 42CrMo alloy steel, resistant to corrosion, high temperatures, and repeated impacts.
Compact and Reliable: Hollow shaft structure ensures strong resistance to torsion and bending, ideal for harsh environments.
Customizable and Versatile: Pin type load cell supports loads from 0 to 100 tons, widely used in cranes, hoists, and industrial lifting systems.
Easy to Install: Simple installation with low maintenance requirements.

Dimension (unit: mm)

Range (t)	A	B	C	D	E	F	G	H	K	M
2/3/5 ton	50	180	66	27	4.5	6.5	32	7	9	3
7/10 ton	60	190	96	14	10	9	33	9	9	5
10/15 ton	65	210	116	14	10	9	32	9	8	5
20/30 ton	80	225	109	20	12	11	40	10	8	6
40/50/100 ton	120	275	153	25	14	13	51	15	12	6

Wiring Method

Tips: What is a Pin Load Cell, and how is it used in cranes?

A pin load cell is a highly specialized device used to measure the load or force applied in lifting systems. It replaces the standard load-bearing pin in cranes and other hoisting equipment. By integrating strain gauges into its structure, the pin load cell detects deformations caused by the applied load and converts these into electrical signals. This real-time load data is then displayed or recorded, ensuring that crane operators have accurate and instant information about the weight being lifted. Pin load cells are widely used in overhead cranes, mobile cranes, tower cranes, and winching systems, where precise load monitoring is critical for safety and efficiency.
