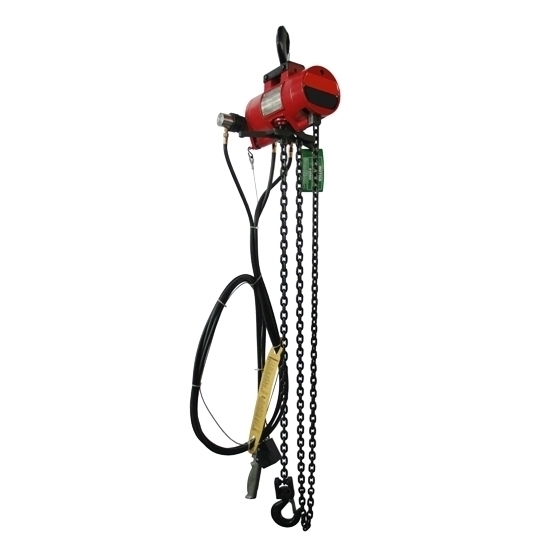

1000 Lb. 10 Ft. Air Chain Hoist

0 reviews • Write a review

from

$3,269.99

Ex Tax: $3,269.99

Stock: In Stock
Model: RDDLZ-ACH-100010
Weight: 1.00
SKU: RDDLZ-ACH-100010

Available Options

Short Description

Metal Chain Container

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 1/2 ton cap. 10 ft. lift air chain hoist from us to lift and move heavy loads easily and safely in dusty or dirty environments.

Feature

Pendant throttle allows 1-handed control.
Aluminum frames and cover.
Top and bottom latch hooks swivel 360°.
Eight vanes air motor has tapped exhaust port.

Specification

Air Chain Hoist	Model	RDDLZ-29HX86
	Capacity	1000 lb. (0.5 ton)
	Lift	10 ft.
	Lift Speed	0 to 45 fpm
	Min Between Hooks	15 1/4 in.
	Reeving	1
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	46 lbs (21 kg)

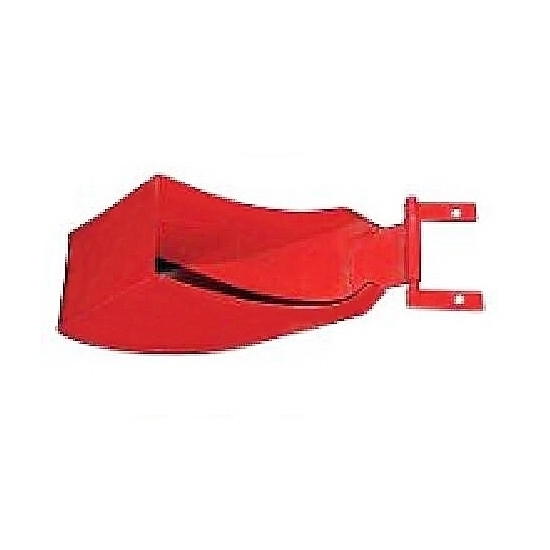

Metal Chain Container	Model	RDDLZ-29HX91
	Chain Lift	Single 20 ft.
	Width	4.5 in.
	Height	12 in.

Dimensions (Unit: mm)

Tips: Working principle of air chain hoist

The lifting mechanism includes air motor, planetary reducer, hanging assembly, brake, lifting chain, hook assembly and main control valve. The lifting mechanism controls the main control valve to realize the lifting and lowering of the lifting heavy object, and realizes the lifting and lowering positioning braking by opening and closing the brake. The air chain hoist ensures the safety of the lifting operation. The lifting mechanism of the pneumatic hoist can be fixed as a whole, or can be moved under the traveling mechanism. The main control valve controls the air motor and the planetary reducer to drive the driving wheels to move, so as to realize the horizontal movement of the lifting heavy object. The gas distribution system uses compressed air as the power source to control the lifting and running of the pneumatic hoist.
