1000 Lb. 20 Ft. Air Chain Hoist

0 reviews • Write a review

from

$3,357.89

Ex Tax: $3,357.89

Stock: In Stock
Model: RDDLZ-ACH-100020
Weight: 1.00
SKU: RDDLZ-ACH-100020

Available Options

Short Description

Metal Chain Container

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

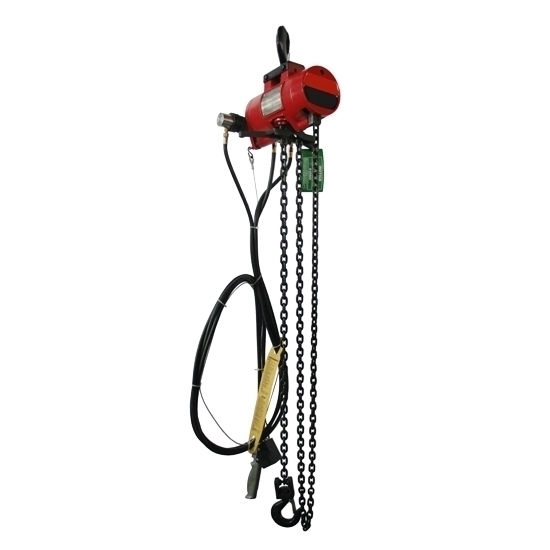

1/2 ton cap. 20 ft. lift air operated chain hoist is used for lifting and moving heavy loads easily and safely in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

Feature

Pendant throttle allows 1-handed control.
Aluminum frames and cover.
Top and bottom latch hooks swivel 360°.
Eight vanes air motor has tapped exhaust port.

Specification

Air Chain Hoist	Model	RDDLZ-29HX86
	Capacity	1000 lb. (0.5 ton)
	Lift	20 ft.
	Lift Speed	0 to 45 fpm
	Min Between Hooks	15 1/4 in.
	Reeving	1
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	46 lbs (21 kg)

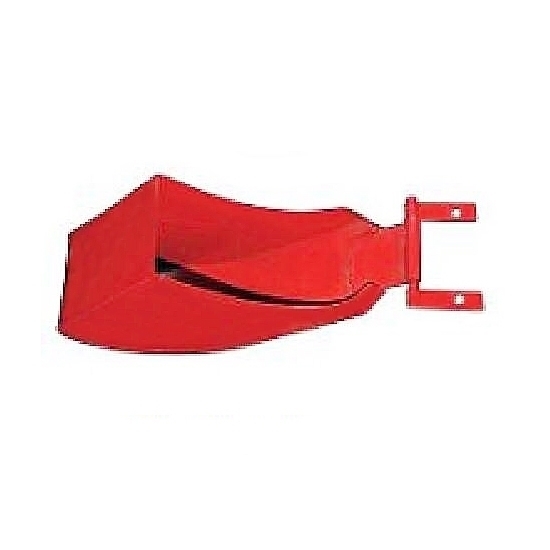

Metal Chain Container	Model	RDDLZ-29HX91
	Chain Lift	Single 20 ft.
	Width	4.5 in.
	Height	12 in.

Dimensions (Unit: mm)

Tips: Advantages of air chain hoist

Accurate positioning: Avoid the problem of inaccurate positioning of common lifting products, and can position the load to the "centimeter".
Adjustable speed: Stepless speed regulation when lifting or lowering; fast running speed, 3 times that of electric hoist; 5-10 times that of manual hoist.
Simple operation: The lever control operation is simple and easy to control, so that it can quickly respond to the action of the handle output when lifting or lowering.
Environmentally friendly, safe and reliable: Internal lubrication system eliminates air pollution. It is suitable for working in special or harsh environments such as moisture, humidity and high dust.
Effortless handling: In addition to paying attention to the beautiful appearance, the pneumatic hoist is smaller than the electric hoist, lighter in weight, easy to handle, and has a solid product structure design, making it reliable in operation and less maintenance.
Overload protection: RDDLZ air chain hoist completely masters the most critical brake system and low-maintenance production technology in the process to avoid damage to the product caused by overloading.
Air cut-off protection: Avoid sudden interruption of air supply and sudden drop of the load. The product has a quality assurance, which eliminates the user's troubles caused by lifting or falling off.
Durable: RDDLZ pneumatic chain hoist is durable, and its service life is significantly longer than that of other similar products.
