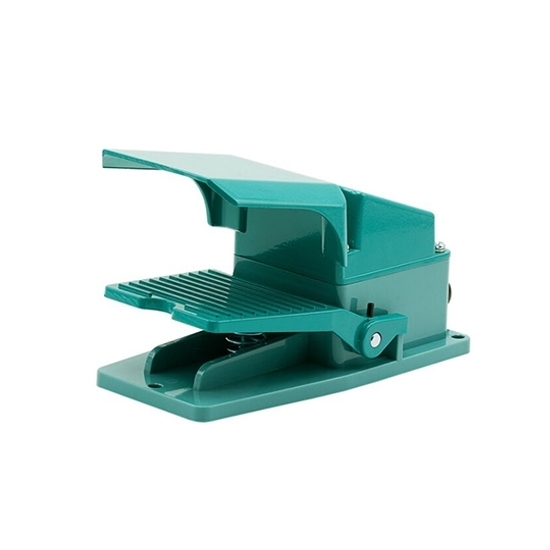

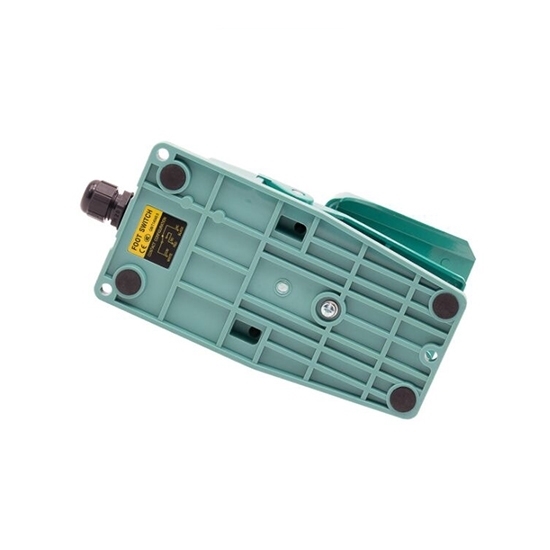

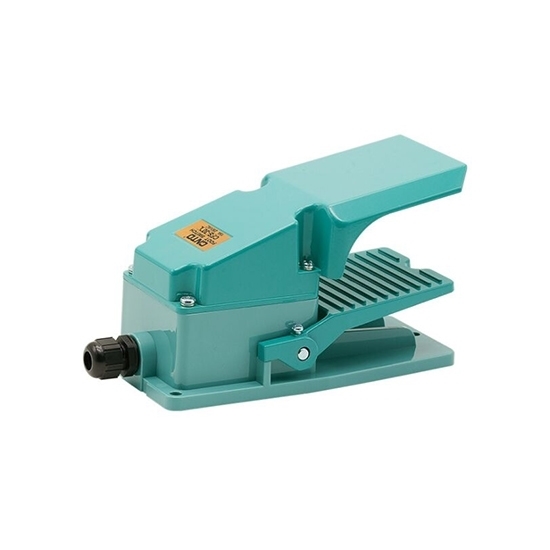

Momentary Foot Pedal Switch, 250V, 15A

0 reviews • Write a review

from

$45.56

Ex Tax: $45.56

Stock: In Stock
Model: RDDLZ-CFS-302
Weight: 1.00
SKU: RDDLZ-CFS-302

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A momentary foot pedal switch is a switch commonly used in industrial and laboratory environments that allows users to control the on/off status of electrical equipment through foot operation. They are suitable for a variety of applications, allowing users to operate power tools hands-free and multi-task. 250V foot switch with 3.2kg action force, momentary operation type, CMV-100D micro switch type, the momentary pedal switch design with aluminum cast material and it has 12 months warranty.

Specification

Model	RDDLZ-CFS-302
Rated voltage	250V AC
Rated current	15A
Operation type	Momentary
Micro switch type	CM-1704
Cable type	Accessory: Cable gland (No cable)
Contact	1NO1NC
Action force	3.2kg
Shell material	Aluminum Cast
Weight	0.85kg
Color	Green
Certificate	CE
Warranty	12 months

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

Dimension (unit=mm)

Tips: What are the features of foot switch?
1. The surface is spray-coated, with excellent impact resistance, abrasion resistance and high temperature resistance (180 degrees).
2. The cable lead-out part is equipped with a cable head, so the waterproof, oil-proof and impact-proof effect are outstanding.
3. The standard configuration of cable lead-out length is 2 meters, M type is 0.5 square meters; H type is 0.75 square meters.
4. The built-in micro switch has been certified by UL, VDE, TUV, CE, and CCC.
5. The built-in micro switch contacts are plated with 24K gold.
