Digital Shore O Hardness Durometer, 20 DO, 10~90H

0 reviews • Write a review

from

$699.77

Ex Tax: $699.77

Stock: In Stock
Model: RDDLZ-SHT-SO20
Weight: 1.00
SKU: RDDLZ-SHT-SO20

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Type O shore hardness durometer with ideal price, digital display. Max hardness value of the scale O hardness tester is 20 DO, measuring range 10~90H, accuracy ≤ ± 1H, resolution 0.1H. The rating O durometer gauge suits materials including soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings.

Specification

Model	RDDLZ-AS-120O
Hardness Scale	Type O
Hardness Value	Below 20 DO
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R1.2 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	soft rubber
	thermoplastic elastomers
	very soft plastics and thermoplastics
	medium-density textile windings

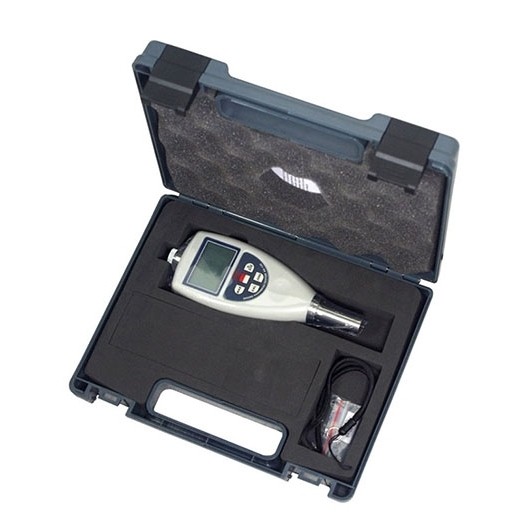

Accessories

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

Features

Shore O hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale O Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating O hardness tester has automatic shutdown and manual shutdown functions.
Shore type O hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
