Digital Shore C Hardness Durometer, 90 B~20 D, 10~90H

0 reviews • Write a review

from

$752.46

Ex Tax: $752.46

Stock: In Stock
Model: RDDLZ-SHT-SC9020
Weight: 1.00
SKU: RDDLZ-SHT-SC9020

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital rating C hardness durometer for sale, competitive price. Hardness value 90 B to 20 D, measuring range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H. The scale C shore hardness tester can test medium-hard materials including medium-hard rubber, thermoplastic elastomers, medium-hard plastics, thermoplastics and so on.

Specification

Model	RDDLZ-AS-120C
Hardness Scale	Type C
Hardness Value	90 B ~ 20 D (above 90 B, below 20 D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	0.79 Truncated (frustum) cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	medium-hard rubber
	thermoplastic elastomers
	medium-hard plastics and thermoplastics

Accessories

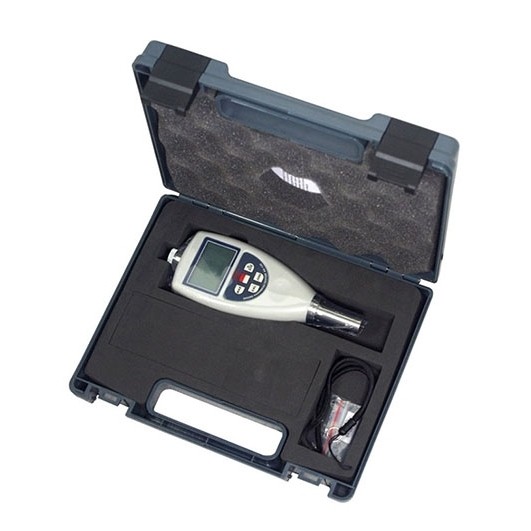

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

Features

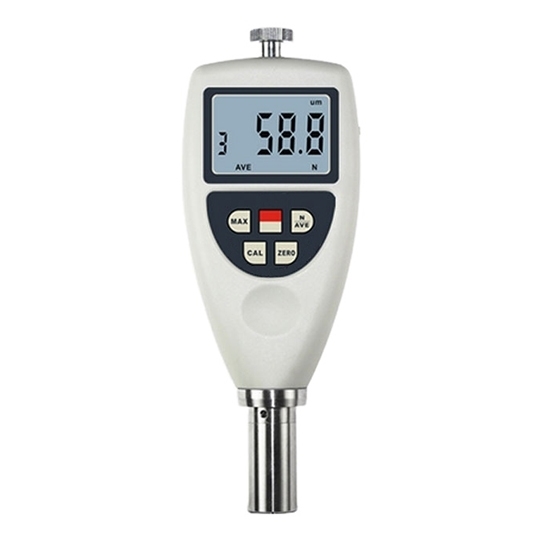

Shore C hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale C Shore hardness durometer has low battery alarm indication and average value calculation function.
The shore rating C hardness tester has automatic shutdown and manual shutdown functions.
Shore type C hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
