Digital Shore DO Hardness Tester, 90 C~20 D, 10~90H

0 reviews • Write a review

from

$806.31

Ex Tax: $806.31

Stock: In Stock
Model: RDDLZ-SHT-SDO9020
Weight: 1.00
SKU: RDDLZ-SHT-SDO9020

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

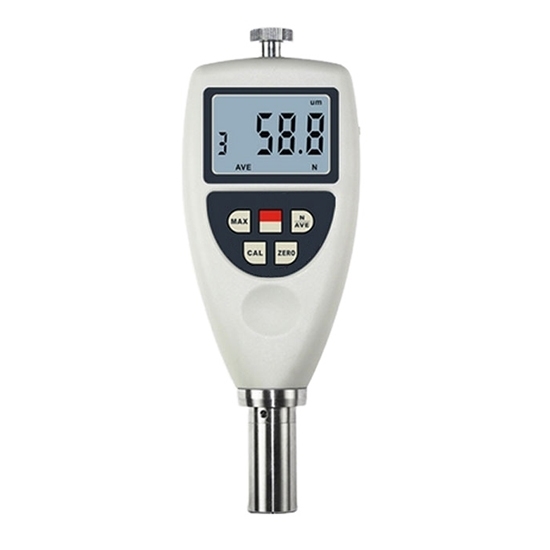

Low price scale DO shore hardness tester with digital display. Hardness value 90 C to 20 D, testing range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H. The type DO shore durometer measures materials with DO rating hardness, such as moderately hard rubber, thermoplastic elastomers, and very dense textile windings.

Specification

Model	RDDLZ-AS-120DO
Hardness Scale	Type DO
Hardness Value	90 C ~ 20 D (above 90 C, below 20 D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R1.2 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	moderately hard rubber
	thermoplastic elastomers
	very dense textile windings

Accessories

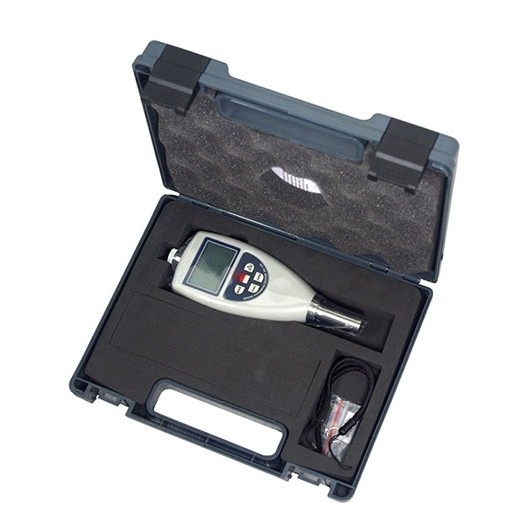

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

Features

Shore DO hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale DO Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating DO hardness tester has automatic shutdown and manual shutdown functions.
Shore type DO hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
