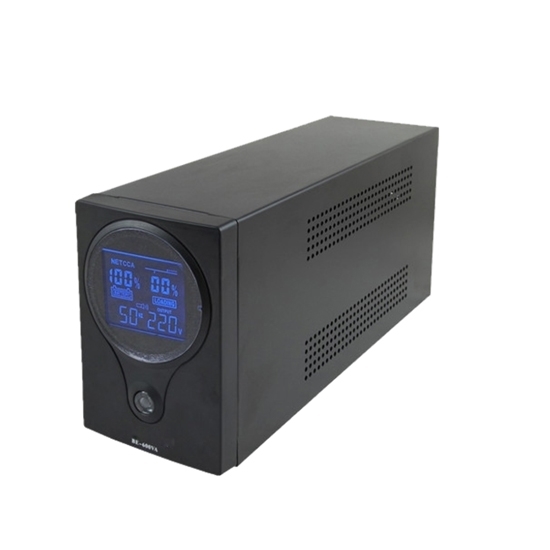

600VA 120V/220V UPS Backup Uninterruptible Power Supply

0 reviews • Write a review

from

$450.69

Ex Tax: $450.69

Stock: In Stock
Model: RDDLZ-UPS-600
Weight: 1.00
SKU: RDDLZ-UPS-600

Available Options

Short Description

Battery

Input & Output Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications

600VA/300 Watts UPS is an uninterruptible power supply to provide emergency power to a load, and it is mainly used in computer, office equipment, test equipment, light system, safe alarm system, ray equipment, medical equipment, copymachine, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment etc.

600VA UPS Specification

Basics	Model	RDDLZ-BE-600
	Rated Capacity	600VA/300W
	Phase	Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard.
	UPS Type	Line Interactive
	Weight	5.5kg
	Size	335100150mm
Input	Input Voltage Range	172-275V AC/ 85-135V AC
	Nominal Input Voltage	220V/230V/240V/110V/120V AC
	Input Frequency	45-65Hz
Output	Norminal Output Voltage	220V/120V AC
	Output Voltage Range (Normal Mode)	220V/120V AC±10%
	Output Voltage Range (Battery Mode)	220V/120V AC±10% (Modified Sine Wave)
	Output Frequency (Normal Mode)	Synchronized (Sine Wave)
	Output Frequency (Battery Mode)	50/60Hz±0.2%
	Wave Form	Modified Sine Wave
	Power Factor	0.9

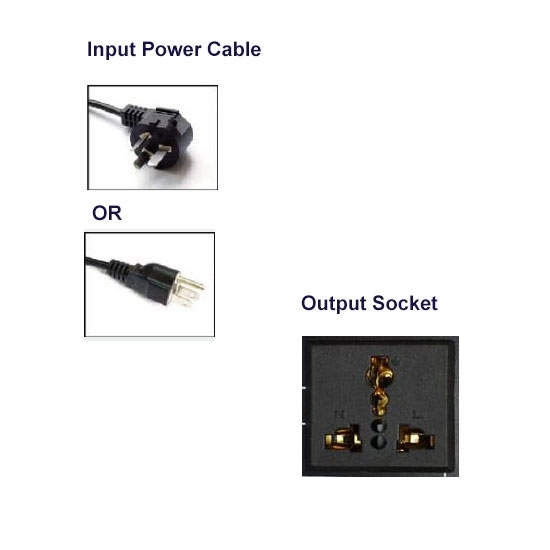

	Output socket	Universal socket
Efficiency		>90%
Transfer Time		6-8ms
Batteries & Runtime	Battery Type	Maintenance-free lead-acid battery
	Battery Modules (NOT Included)	12V7Ah1pcs/12V (Battery size: 1509060mm)
	Backup Time (full/half load)	5 Minutes Backup time; for long backup mode, it depends on outside battery
	Typical Charge Time	<12 hours (90%)
Display Status		LCD (NORMAL, FAULT, BATTERY, CHARGE, OVERLOAD)
Protection	Overload Protection	Automatic shut down when overload is within 110~130%
		Shut down after 300ms when above 130%
Others	Peak Ratio for Load	3:1 (Max.)
	Distortion Rate (full load) Linear Load	<3%
	Distortion Rate (full load) Non-linear Load	<6%
	Communication Software	NETCCA POWER
Operating Environment	Working Temperature	0°C~40°C
	Relative Humidity	20~90% Non-condensing

Note:

1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.

2. If you need other output voltage range, please contact us.

Details

Tips: What is an UPS (Uninterruptible Power Supply)? And how it works?

UPS (Uninterruptible Power Supply) is system equipment that converts the direct current of battery to the utility power through dc-to-ac converter and other modular circuit of main engine by connecting storage battery (most are lead-acid maintenance free storage battery) to the main engine. It is mainly used for providing stable and continuous power supply to personal computers, computer network systems or other power electronic devices. Generally, the UPS has a wide range of capacity, like 600VA/300Watts, 1000VA/600Watts, etc. for different applications.

When the mains supply is normal, it will be provided for load use after the voltage stabilization by UPS. The uninterruptible power supply plays a role of an AC voltage regulator at this time. Meanwhile, it also recharges the battery inside. When the utility power fails (unscheduled interruption), the UPS will immediately supply the 110V/220V AC to the load by converting the DC power of the battery with help of the inverter, to make sure that the load can keep normal operation and to protect the load software and hardware from being damaged.
