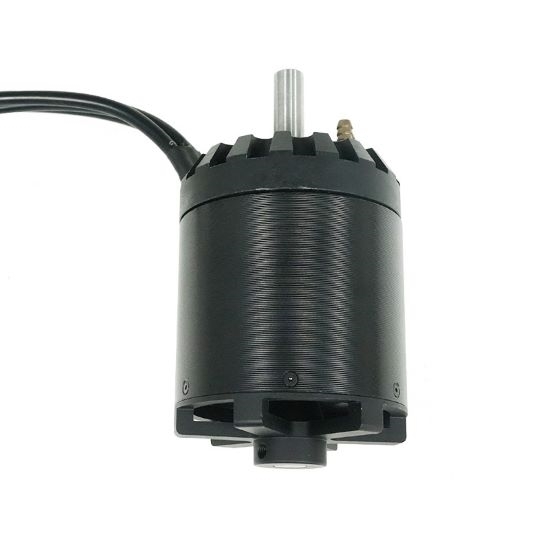

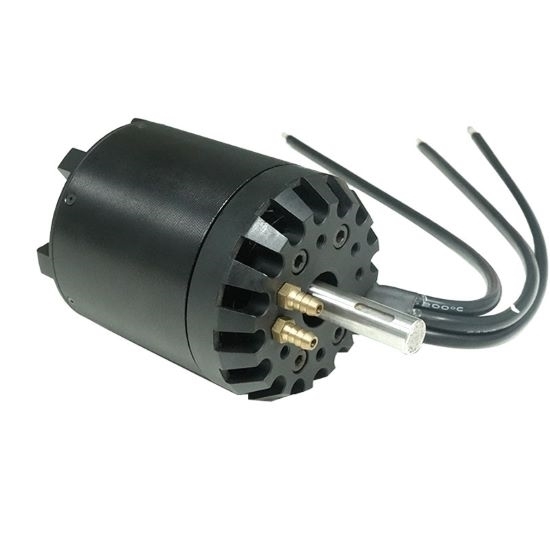

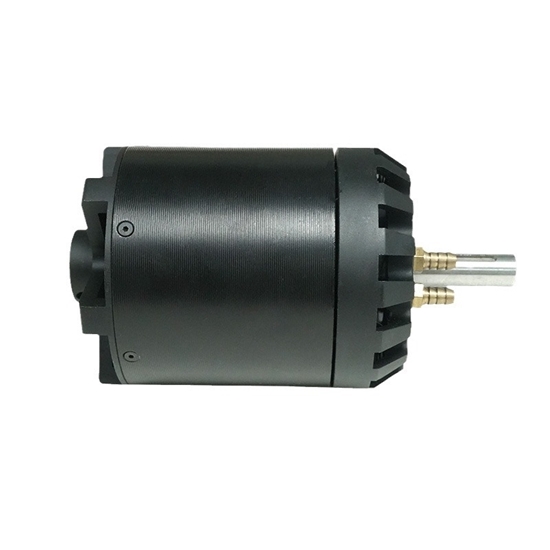

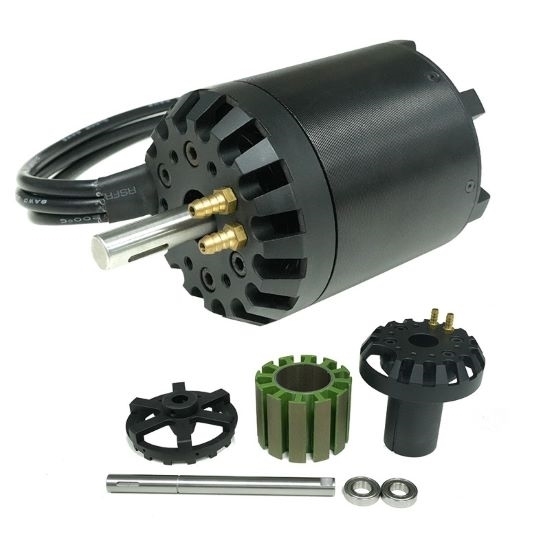

8000W 200KV 14S Outrunner Brushless Motor For Electric Skateboard

0 reviews • Write a review

from

$535.23

Ex Tax: $535.23

Stock: In Stock
Model: RDDLZ-BLDC-83100
Weight: 1.00
SKU: RDDLZ-BLDC-83100

Available Options

With ESC Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 200KV outrunner brushless DC motor at good price. High power 8kW, high torque 18 N.m, max input voltage DC 60 volts (powered by 14S batteries). Select a matching ESC controller to drive your electric skateboard better. Usually, RDDLZ recommends buying a kit of 8000W BLDC motor.

Specification

Model	RDDLZ-BLDC-83100
Max Power	8000W (10 hp)
Rotation Speed KV (RPM/V)	200KV
Max Current	158A
No-load Current	6.2A
Max Input Voltage*	DC 60V
Max Torque	18 N.m
Resistance	0.0133Ohm
Rotation Speed	12000~15000
Motor Length	100mm
Motor Diameter	83mm
Weight	2 kg
SHAFT diameter	12mm

*Note: The motor is powered by 14S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

Water Cooled Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for Water Cooled BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

Note: If you need to learn more details about ESC controllers, please contact us.
