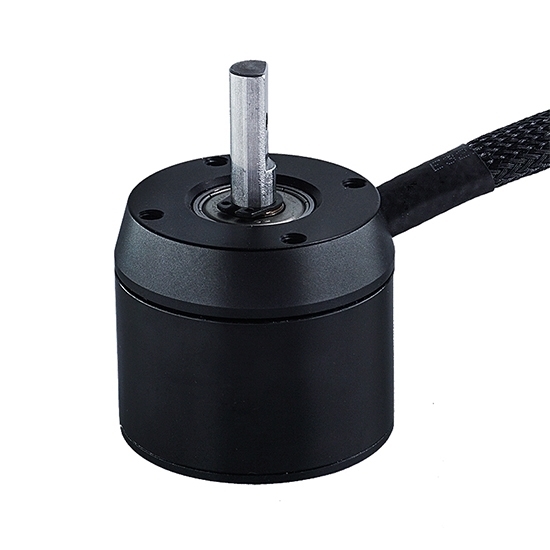

1000W 200KV 12S Outrunner Brushless Motor For Skateboard

0 reviews • Write a review

from

$138.15

Ex Tax: $138.15

Stock: In Stock
Model: RDDLZ-BLDC-H5045
Weight: 1.00
SKU: RDDLZ-BLDC-H5045

Available Options

With ESC Controller

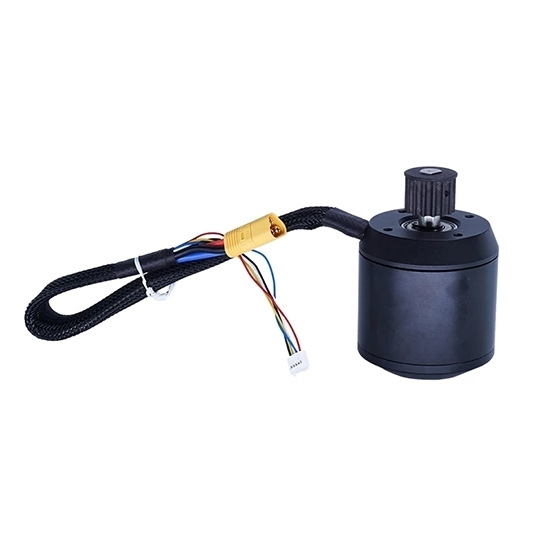

With Pulley

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200KV outrunner BLDC motor with 0.85N.m torque, max power 1kW (1-1/2 hp), max input voltage 12S (44 Volts). Optional matching with speed controller and D-shaft pulley. Brushless DC motor for electric skateboard/longboard/mountainboard.

Specification

Model	RDDLZ-BLDC-H5045
Max Power	1150W (1.5 hp)
Rotation Speed KV (RPM/V)	200KV
Max Current	32A
Max Input Voltage*	DC 44V
Max Torque	0.85 N.m
Recommend ESC	3-12S 50A (FSESC4.20 50A)
Motor Length	48.6mm
Motor Diameter	49.5mm
Weight	0.74 lb (0.34 kg)
No-Load Current	0.4A
Internal Resistance	0.11 ohm
SHAFT	Diameter: 8mm Length: 25mm (Recommended: RDDLZ 8mm D-shape motor pulley）
Motor Wire	300mm silicone 16AWG wire with MT30 male connector
Wire Configuration	Blue = U White = V Yellow = W
Number of poles	14
Sensor Wire	Standard RC Sensor Wire HY2.0-5P connector
Shipping Package	RDDLZ-H5045 motor1, free VESC sensor wire1

*Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

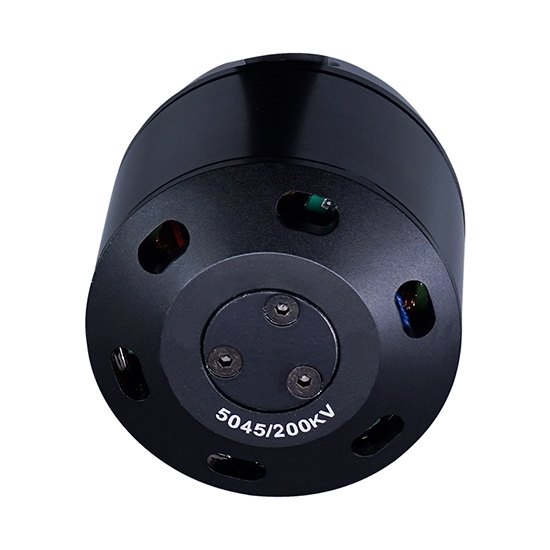

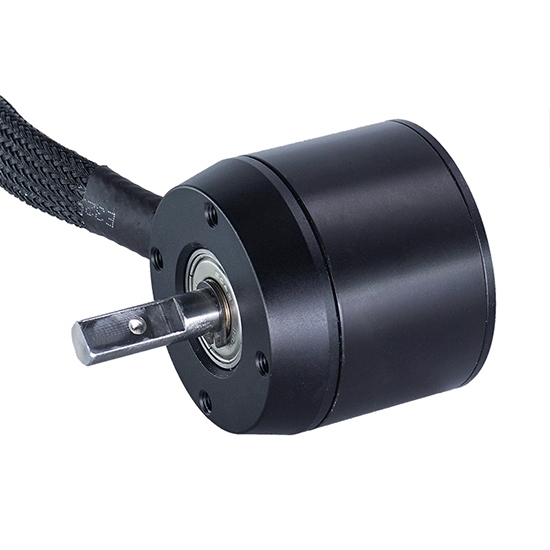

1000W Outrunner Brushless DC Motor Details

Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20*	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Functions of electric skateboard BLDC motor controller.

Controller is the core control device of an electric skateboard BLDC motor, which is used to control the start, stop, and speed of the electric skateboard motor. There are separate and integral types of electric skateboard brushless motor controllers.

Separate motor controller means that the main body of controller and display part are separated. This way shortens the connection distance between the controller, the power supply and the motor.

The control part and the display part of the integral motor controller are integrated into a special plastic box. There are unequal numbers of small holes on the panel of the box. The corresponding position in the hole is equipped with light-emitting diodes to indicate speed, power supply and remaining battery power.

Protection functions of the controller: brake power cutting, speed limit protection, over current protection, overload protection, under speed protection, under voltage protection.
