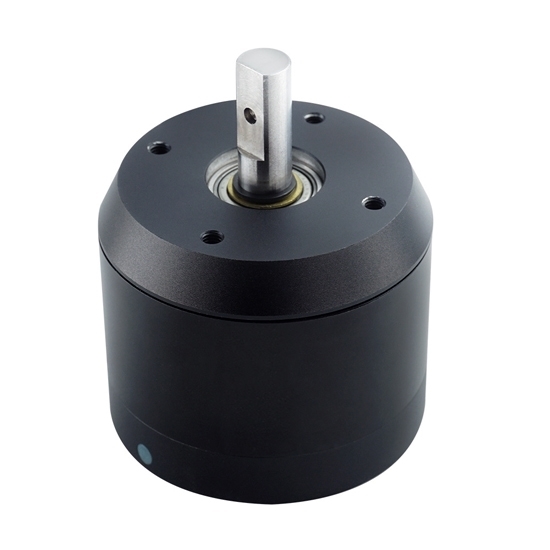

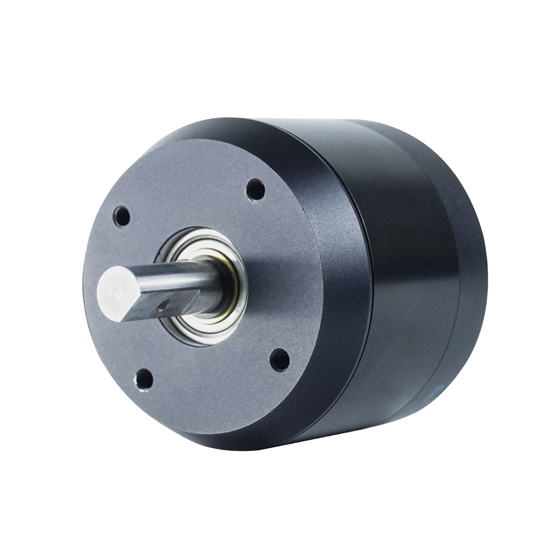

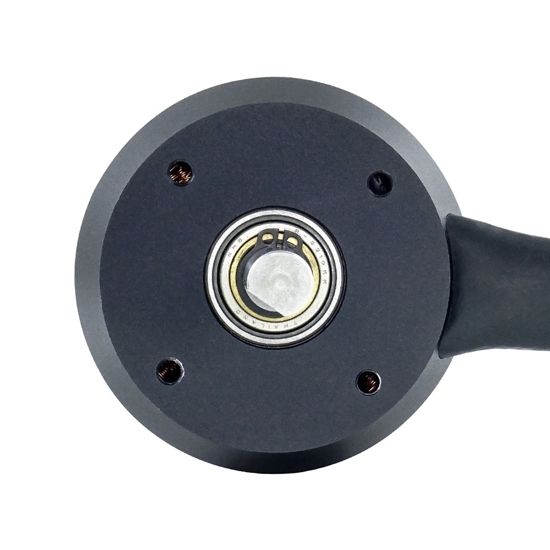

2400W 140KV 4-12S Outrunner Brushless Motor For Skateboard

0 reviews • Write a review

from

$257.60

Ex Tax: $257.60

Stock: In Stock
Model: RDDLZ-BLDC-ES2400
Weight: 1.00
SKU: RDDLZ-BLDC-ES2400

Available Options

Shaft Type

Rotation Speed KV

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Brushless outrunner motor with 2400W power for sale. 65A current and 7 N.m torque of this outrunner brushless motor. Stable structure and high temperature resistance are the biggest advantages of 140 KV brushless motor.

Specification:

Model	RDDLZ-BLDC-6354
Max Power	2450W
Rated Current	30A
Max Current	65A
Max Voltage	4S-12S
Max Torque	7 N.m
Bullet Connector	4 mm
Stator	0.2 mm silicon steel sheet
Rotation Speed KV (RPM/V)	140 KV / 190 KV
Hall Angle	120°
Internal Resistance	0.053 OHM
Motor Wire	320 mm 12 AWG
Number of Pole Pairs	7
Shaft Diameter	8 mm circuit shaft / 10 mm D-shaft
Motor Size	63*54 mm
Motor Weight	558g

Structure:

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.7 VESC6.6 single drive integration*	Continuous 70A, peak 200A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Why Choose Outrunner Brushless Motor For Electric Skateboard?

Brushless motor is usually digital frequency conversion control, strong controllability, from a few revolutions per minute, to tens of thousands of revolutions per minute can be easily realized. Brushless motor is an upgraded product, its life performance is better than the brush motor. But its control circuit is more complex, the aging of components screening requirements are more strict. Therefore, the selection of brushless motor should go through strict reliability test to ensure the relative desirability of quality electric vehicles brush better. It is used in the main point is low noise, outrunner brushless motor is the use of electronic circuit reversing, polarity detection components.
