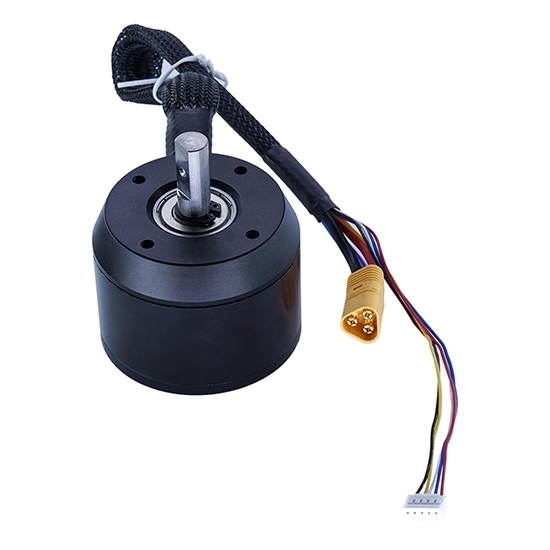

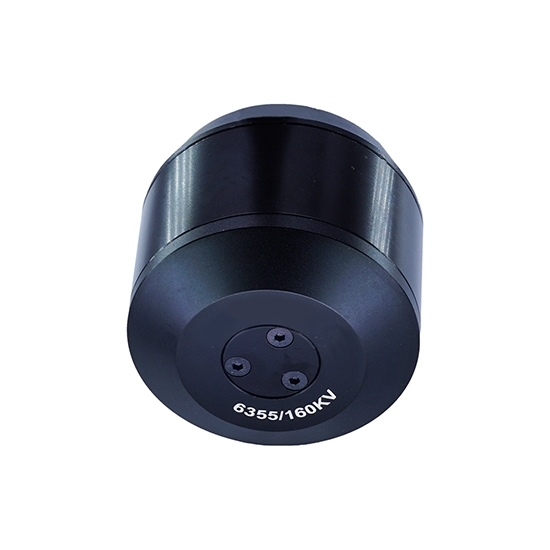

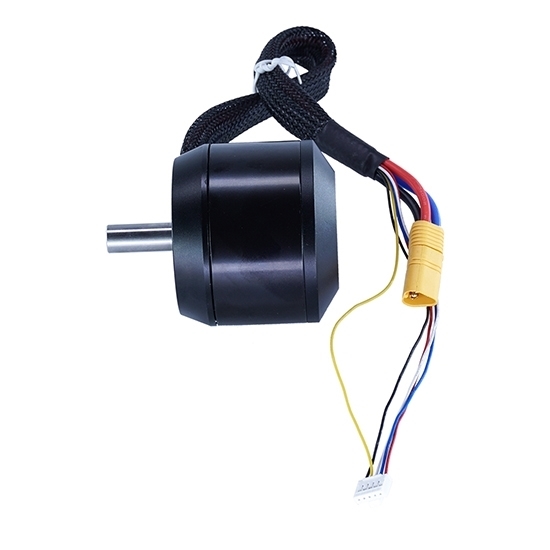

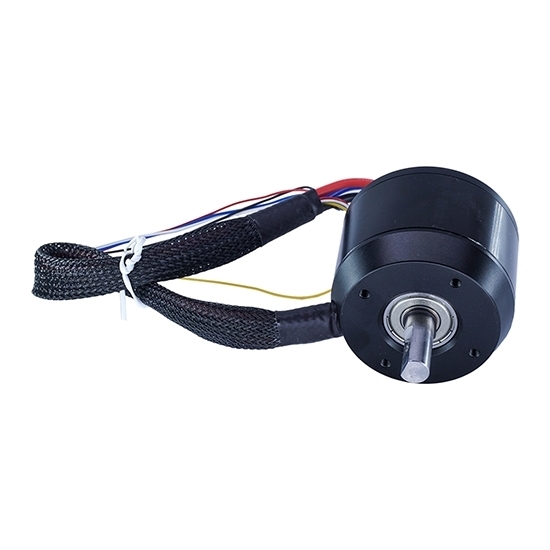

1600W 160KV 12S Outrunner Brushless Motor For Skateboard

0 reviews • Write a review

from

$152.92

Ex Tax: $152.92

Stock: In Stock
Model: RDDLZ-BLDC-H6355
Weight: 1.00
SKU: RDDLZ-BLDC-H6355

Available Options

With ESC Controller

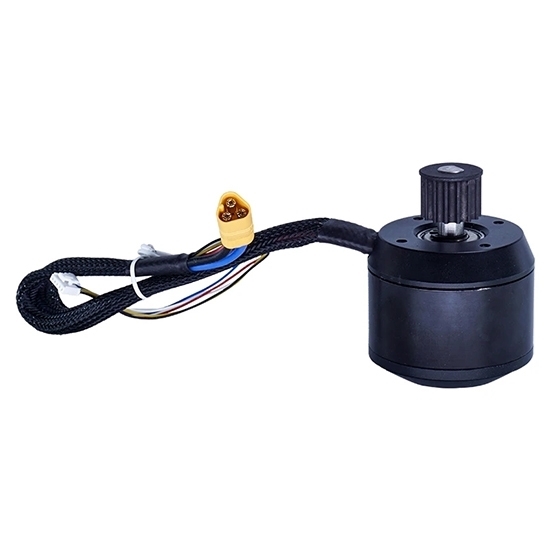

With Pulley

Speed KV (RPM/V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Affordable price outrunner brushless DC motor for sale, dedicated to electric skateboard/ longboard/ mountainboard. Speed 160KV/220KV for selection, max power 1.6kW, input voltage 12S (DC 44V). Optional BLDC motor driver and 10mm pulley for matching use.

Specification

Model	RDDLZ-BLDC-H6355
Max Power	1620W (2 hp)
Rotation Speed KV (RPM/V)	160KV, 220KV
Max Current	45A
Max Input Voltage*	DC 44V
Max Torque	1.9 N.m
Recommend ESC	3-12S 50A (FSESC4.20 50A)
Motor Length	55mm
Motor Diameter	63mm
Weight	1.259 lb (0.572 kg)
Internal Resistance	0.11 ohm
SHAFT	Diameter: 10mm Length: 25mm
Motor Wire	300mm silicone 14AWG wire with MT60 male connector
Wire Configuration	Blue = U White = V Yellow = W
Number of poles	14
Sensor Wire	Standard RC Sensor Wire HY2.0-5P connector
Shipping Package	RDDLZ-H6355 motor1, hall line1

*Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

Details

Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20*	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Why does electric skateboard brushless motor get hot?

First, use a non-contact infrared thermometer or the temperature measurement gear of multimeter (a multimeter with temperature measurement). Measure the temperature of motor end cover. When it exceeds the ambient temperature by more than 25°C, it indicates that the temperature rise of electric skateboard brushless motor has exceeded the normal range. Generally, the temperature rise of a motor should be below 20°C.

The direct cause of electric skateboard BLDC motor heating is excessive current. The relationship between motor current I, motor input electromotive force E1, motor rotation induced electromotive force (also called back electromotive force) E2, and motor coil resistance R is: I = (E1-E2) ÷ R

I increase, indicating that R becomes smaller or E2 is reduced. The decrease of R is generally caused by a short circuit or an open circuit of the coil. The reduction of E2 is generally caused by the short circuit or open circuit of the coil.
In the maintenance practice of electric skateboard brushless motor, the method to deal with the heating failure is generally to replace the motor.
