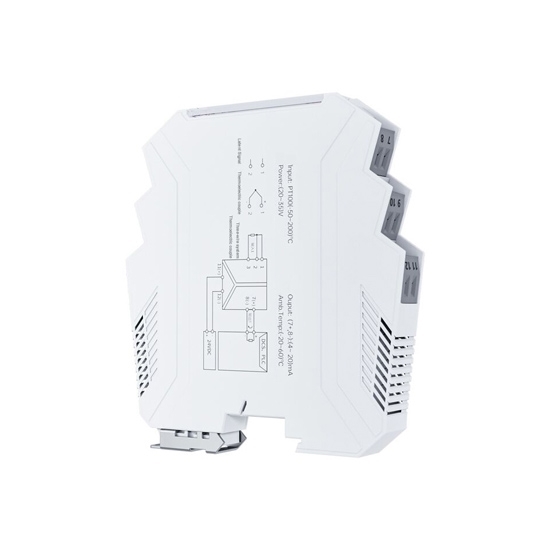

Thermocouple/RTD Signal Conditioner, Analog Output 0-20mA/4-20mA/0-5V

0 reviews • Write a review

from

$110.58

Ex Tax: $110.58

Stock: In Stock
Model: RDDLZ-SIGNI-503H
Weight: 1.00
SKU: RDDLZ-SIGNI-503H

Available Options

Short Description

Output Signal

Input Signal

Number of Input & Output Channels

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Thermocouple/RTD signal conditioner can input signal of K/B/S/E/PT100 and output signal of 0-20mA/4-20mA/0-5V/1-5V/1-10V/2-10V.

Specification:

Model	RDDLZ-SIGNI-1003S
Weight	130g
Dimension	117.5mm110mm13mm
Input signal*	thermal resistance	Conventional: Pt100, Cu50 Cu100 Customized: Pt50, Pt200, Pt500, Pt1000
	thermocouple	K, E, S, B, J, T, R, N, WRe3-WRe25, WRe5-WRe26
	mV signal	-120~120mV
Output signal*	0~20mA, 4~20mA, 0~5V, 1~5V, 0~10V, 2~10V
Output load resistance	4~20mA, 0~20mA: RL≤550Ω 0~5V, 1~5V, 0~10V, 2~10V: RL≥1MΩ
Transmission accuracy	See table below
Isolation strength (between input/output/power)	1500Vrms (1 min, no spark)
Response time	≤500ms (Single-channel)
Temperature drift	≤40ppm
EMC	EMC conforms to GB/T18268 (IEC 61326-1) requirements for industrial equipment application
Power supply	20~35VDC
Power consumption	Single-channel output: ≤1.0W Double-channel output: ≤1.4W
Operating temperature	-20~60℃
Storage temperature	-20~60℃
Relative humidity	25%～85%
Installation method	35mm DIN rail mounting

Transmission accuracy:

Input signal type		Range	Accuracy
TC	K/E/J/N/T	<300℃	±0.3℃
		≥300℃	±0.1% F.S
	S/B/R/WRe-series	<500℃	±0.5℃
		≥500℃	±0.1% F.S
RTD	Pt100/Cu100/Cu50	<100℃	±0.1℃
		≥100℃	±0.1% F.S

Dimensional drawing (unit: mm):

Wiring diagram of Single-channel input and Single-channel output:

Wiring diagram of Single-channel input and Double-channel output:

Wiring diagram of Double-channel input and Double-channel output:
