2000 Lb. 20 Ft. Air Chain Hoist

0 reviews • Write a review

from

$3,951.99

Ex Tax: $3,951.99

Stock: In Stock
Model: RDDLZ-ACH-200020
Weight: 1.00
SKU: RDDLZ-ACH-200020

Available Options

Short Description

Metal Chain Container

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

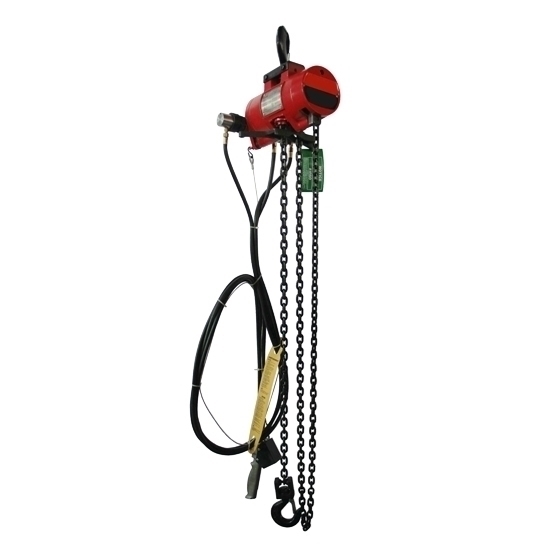

1 ton cap. 20 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

Specification

Air Chain Hoist	Model	RDDLZ-29HX89
	Capacity	2000 lb. (1 ton)
	Lift	20 ft.
	Lift Speed	0 to 23 fpm
	Min Between Hooks	18
	Reeving	2
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	59 lbs (27 kg)

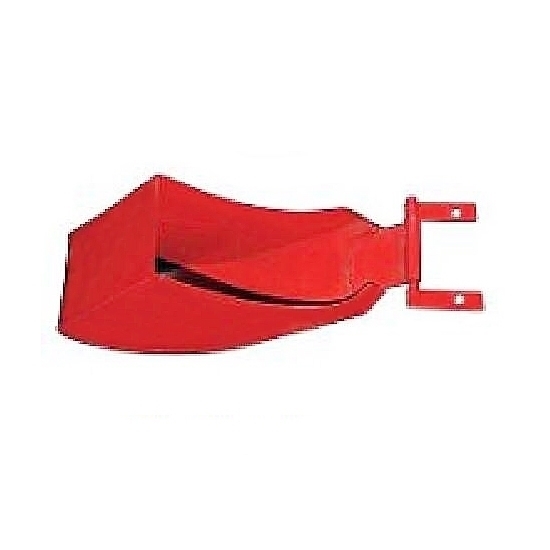

Metal Chain Container	Model	RDDLZ-29HX92
	Chain Lift	Single 20 ft.
	Width	4.5 in.
	Height	17 in.

Dimensions (Unit: mm)

Tips for using air chain hoist

The air chain hoist shall not lift and unload heavy objects from the side, and it is forbidden to use overload.
Avoid obstructions within the operator's walking range and routes where heavy objects pass
When using, please fix the workpiece firmly. Keep hands and rags away from the rotating parts.
In the process of use, the operator should check whether the wire rope is randomly buckled, knotted, grooved, worn, etc., and if it occurs, it should be eliminated in time.
Do not artificially use the limiter to stop the lifting of heavy objects or stop the operation of the equipment in daily work.
The up and down, left and right directions of the manual buttons should be accurate and sensitive, and the motor and reducer should have no abnormal noise.
Special maintenance personnel should be set up to check the main performance and safety status of the pneumatic chain hoist once a week, and find faults and eliminate them in time.
After the work is completed, turn off the main air power switch and cut off the main air power supply.
