2" Electric Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$611.19

Ex Tax: $611.19

Stock: In Stock
Model: RDDLZ-EBV-50B
Weight: 1.00
SKU: RDDLZ-EBV-50B

Available Options

Power Supply

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Compact electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	RDDLZ-EBV-50B
	Port Size	2 inch (DN50, 50mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	RDDLZ-KLST-10
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Body Dimension (Unit: mm)

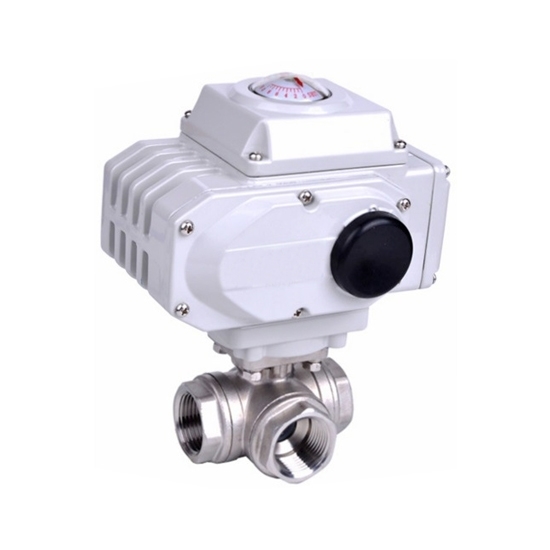

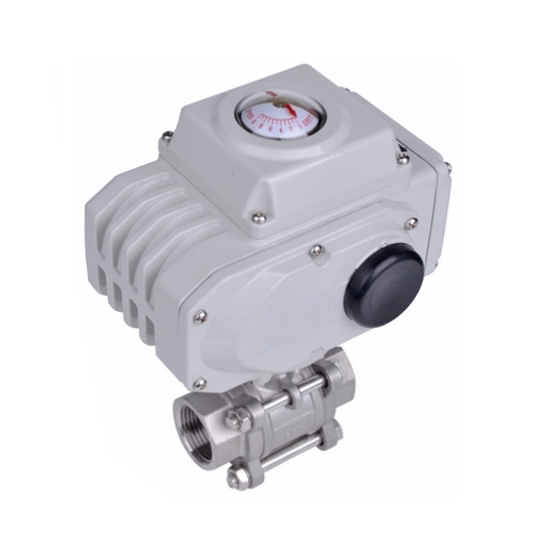

2 way/ 3 way, stainless steel, threaded type

φd	L1	A1	A2	H1	L2	H2
50	130	198	198	236	143	230

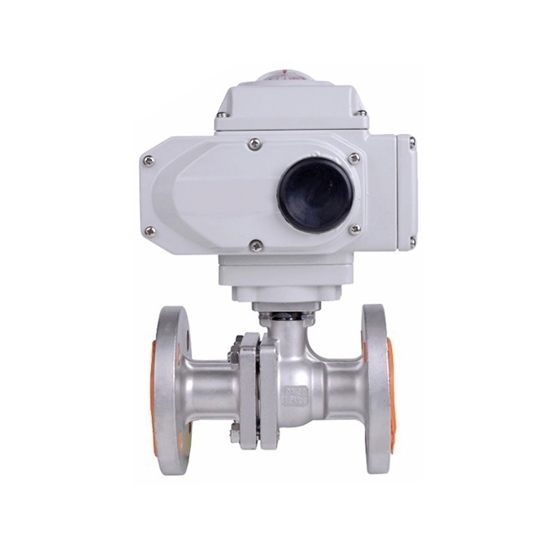

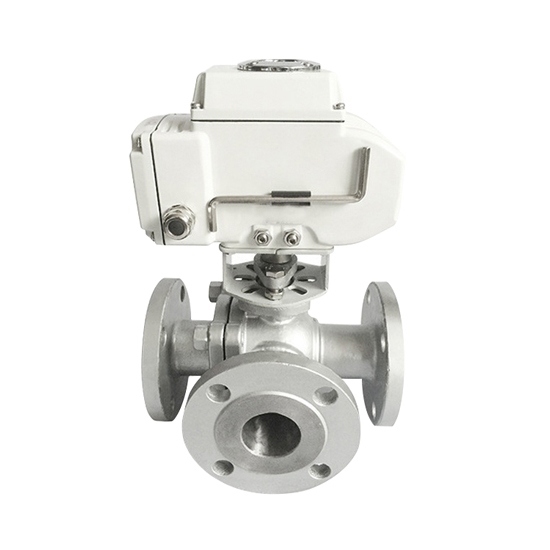

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
50	200	18	2	160	100	125	240	265	198	198	240	4-φ18

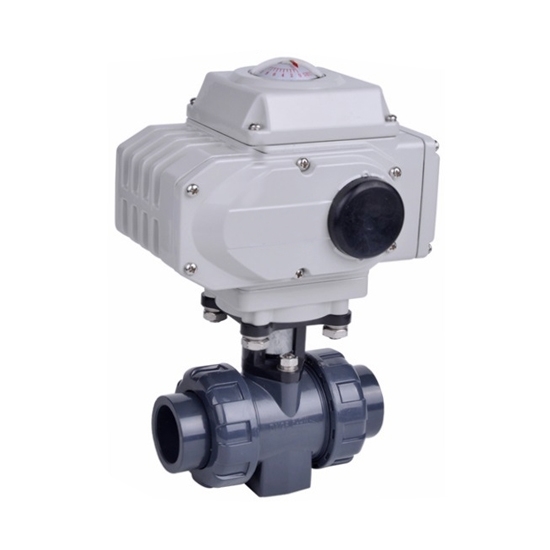

2 way, PVC true union type

DN	D	D1	d	L1	A	H
50	63	79	48	28	198	278

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Difference between T type and L type 3 way electric ball valve

Electric 3 way ball valve can be used to control the direction, diversion or confluence of three pipeline media. According to the different structure of the ball core, it can be divided into T type or L type. The difference between these two kinds of ball valves lies in the difference in internal structure. The T-type ball valve can connect three orthogonal pipelines with each other and cut off the third channel, and play the role of diversion and confluence, while the L-type ball valve can only connect two mutually orthogonal pipelines, and cannot maintain the mutual connection of the third pipeline at the same time. Connectivity only plays a distributive role.

The T-type ball valve is mainly used for the diversion or mixing of the medium, and the L-type ball valve is mainly used for reversing. L-type 3 way ball valve is used for distribution and switching that does not require 3 way, and the operation is more convenient. The T-type 3 way ball valve has a wide selection of channels and many valve positions. Generally, there is no positioning. If it replaces the L-type, it needs to be rotated 180 degrees.
