1-1/2" Electric Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$431.59

Ex Tax: $431.59

Stock: In Stock
Model: RDDLZ-EBV-40B
Weight: 1.00
SKU: RDDLZ-EBV-40B

Available Options

Power Supply

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Compact electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	RDDLZ-EBV-40B
	Port Size	1-1/2 inch (DN40, 40mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	RDDLZ-KLST-05	RDDLZ-KLST-10
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Note: Threaded ball valve and PVC true union ball valve match with RDDLZ-KLST-05 electric actuator, and flanged ball valve matches with RDDLZ-KLST-10 electric actuator.

Body Dimension (Unit: mm)

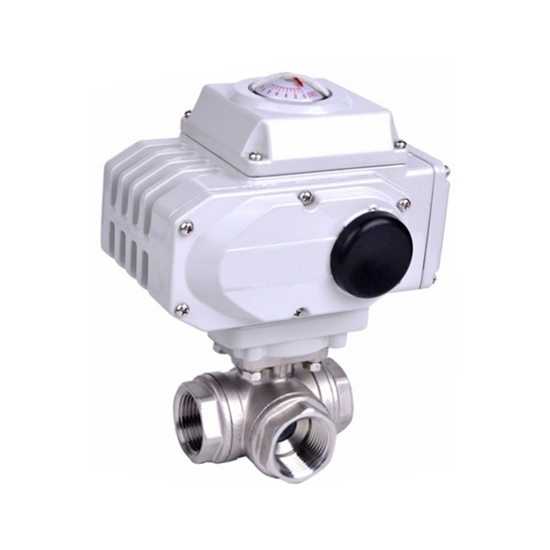

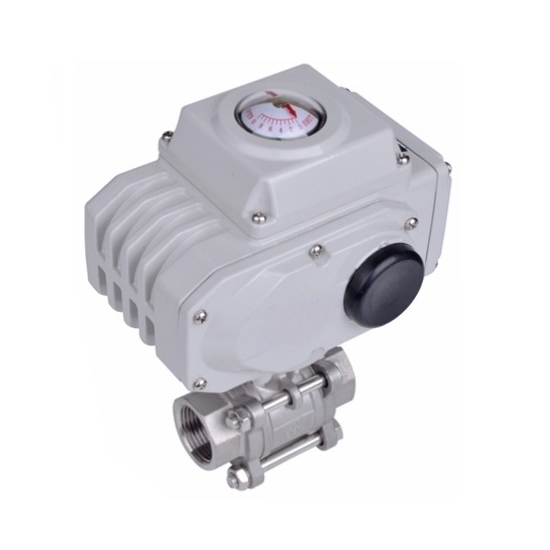

2 way/ 3 way, stainless steel, threaded type

φd	L1	A1	A2	H1	L2	H2
38	112	160	160	191	126	188

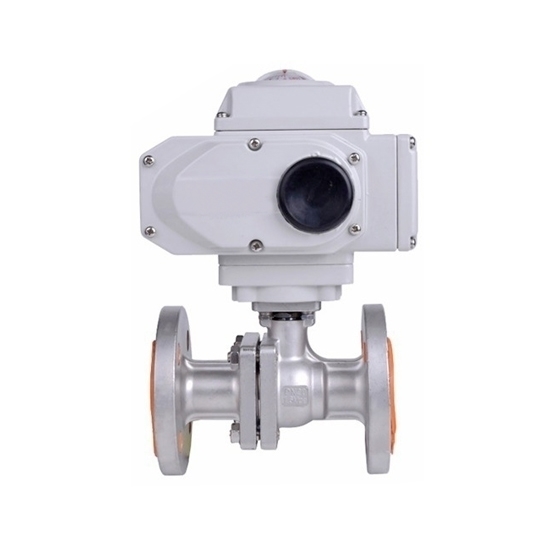

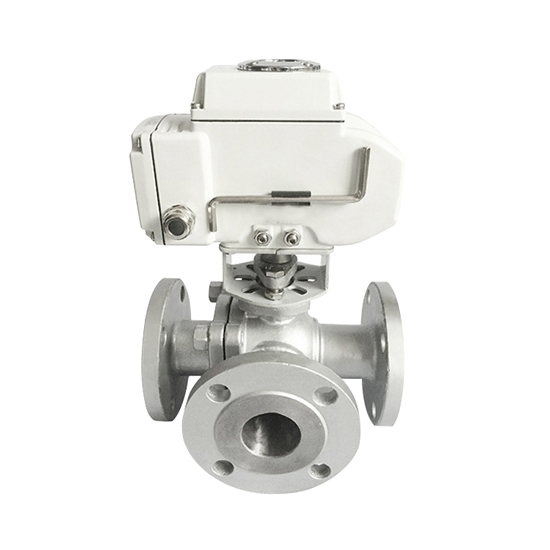

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
40	180	17	2	145	85	110	232	235	198	198	220	4-φ18

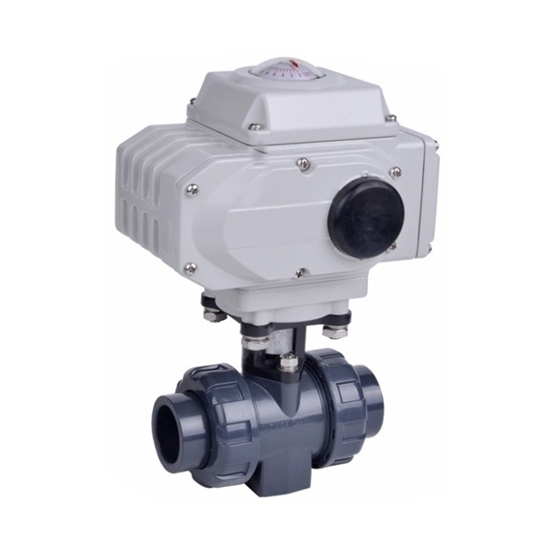

2 way, PVC true union type

DN	D	D1	d	L1	A	H
40	50	65	38	25	160	240

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Electric actuated ball valve basics

The electric actuated ball valve adopts an integrated structure and is matched with the electric actuator. It can control the operation with an input control signal (4~20mADC or 1-5VDC) and a single-phase power supply. It has strong functions, small size, light weight, reliable performance, and it is especially suitable for occasions where the medium is viscous, contains particles and fibers. The valve is widely used in industrial automatic control systems of food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and scientific research equipment, electric power and other industries.

The electrically operated ball valve has the functions of internal servo operation and opening signal position feedback, position indication, manual operation, etc. It has reliable performance and a simple connection. By inputting current signal or voltage signal, the rotation angle of the ball core can be changed to achieve proportional conditioning action.
