1/2" Electric Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$341.99

Ex Tax: $341.99

Stock: In Stock
Model: RDDLZ-EBV-15B
Weight: 1.00
SKU: RDDLZ-EBV-15B

Available Options

Power Supply

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Compact electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	RDDLZ-EBV-15B
	Port Size	1/2 inch (DN15, 15mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	RDDLZ-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Body Dimension (Unit: mm)

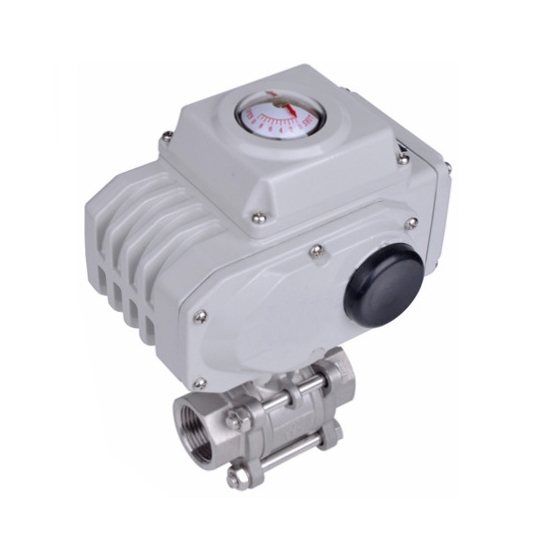

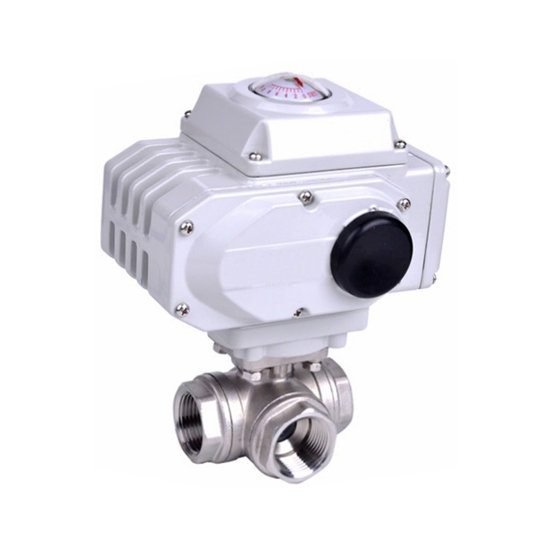

2 way/ 3 way, stainless steel, threaded type

φd	L1	A1	A2	H1	L2	H2
15	72	160	160	166	68	144

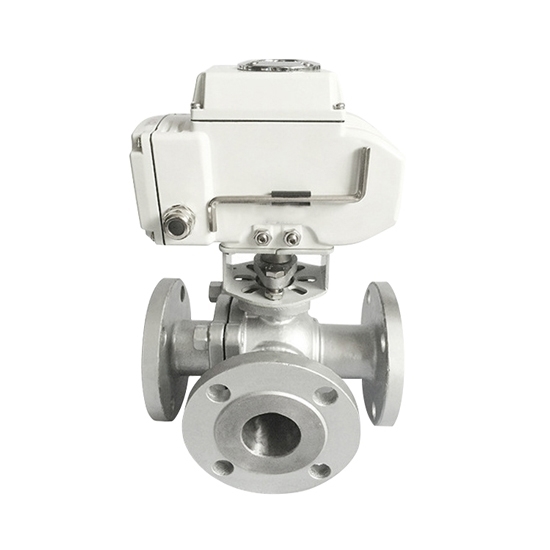

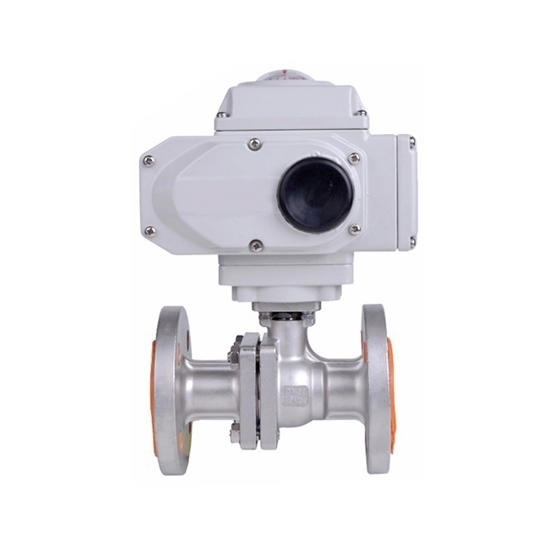

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
15	130	14	2	95	45	65	178	178	160	160	150	4-φ14

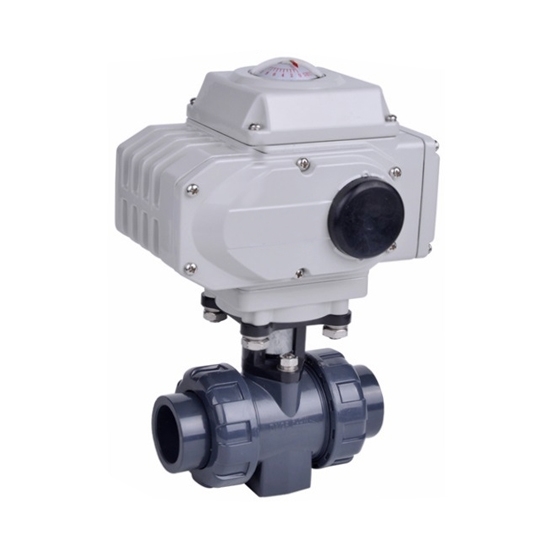

2 way, PVC true union type

DN	D	D1	d	L1	A	H
15	20	31	13	15	160	204

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Electric actuated ball valve applications

Electric actuated ball valve is used for air, steam, water, gas, corrosive media control.
Electric actuated ball valves are usually used in occasions with strict sealing requirements. In addition to controlling gas, liquid and steam media, they are also suitable for controlling sewage and media containing fibrous impurities. They are used in petroleum, chemical industry, metallurgy, light industry, papermaking, power station, refrigeration, etc. field of work.
Electrically operated ball valve can be fully closed and fully opened by rotating 90°. The ball valve is small in size and light in weight, which is convenient for pipeline installation.
