1-1/2" Flanged Diaphragm Valve, UPVC/ CPVC

0 reviews • Write a review

from

$186.99

Ex Tax: $186.99

Stock: In Stock
Model: RDDLZ-FDV-DN40
Weight: 1.00
SKU: RDDLZ-FDV-DN40

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

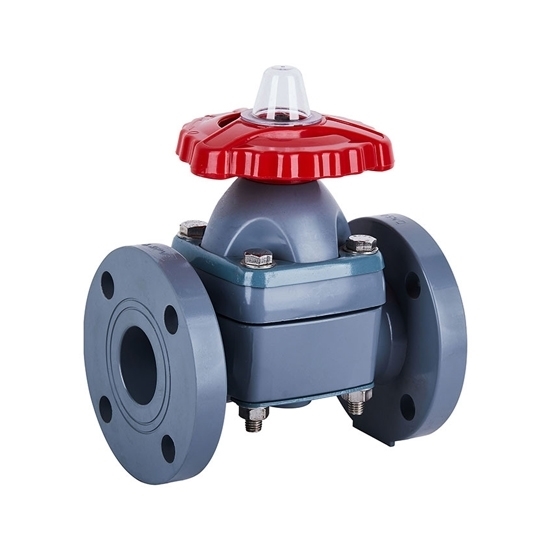

2 way PVC diaphragm valve with DN40 flanged port is used to control the flow of fluids in pipelines, especially when it is essential to prevent the fluid from coming into contact with the valve components.

Specification

Model	RDDLZ-FDV-DN40
Size	1-1/2 inch (DN40)
Structure Type	Flanged Type
Diaphragm Valve Assembly	Parts	Material
	Diaphragm	PTFE
	Film	EPDM
	Valve Body	UPVC, CPVC
	Valve Plate	UPVC, CPVC, Steel, Stainless Steel
	Cover Limit	AS
	Stud	Steel, Stainless Steel
	Retaining Nut	FRPP
	Washer	FRPP
	Wheel	Alloy Material
	Platen	Steel, Stainless Steel
	Double-Headed Stud and Nut	Steel, Stainless Steel
	Bonnet	UPVC, CPVC
	Yoke Nut	Ht300 Steel
	Stem	Steel, Stainless Steel

Dimension (Unit: mm)

Size	Valve Body Material	d	D	L	h	n-φ
1-1/2 inch (DN40)	UPVC	111	147	186	20	4-φ18
1-1/2 inch (DN40)	CPVC	111	147	184	20	4-φ18

Note: The above dimensions are for reference only, please refer to the actual product.

Detail

Working Pressure

Size	Working Pressure (MPa)
	UPVC			CPVC
	20~40℃	41~60℃	61~80℃	0~40℃	41~60℃	61~90℃
1/2" (DN15)	0.8	0.8	0.7	0.7	0.7	0.6
3/4" (DN20)	0.8	0.8	0.7	0.7	0.7	0.6
1" (DN25)	0.8	0.8	0.7	0.7	0.7	0.6
1-1/4" (DN32)	0.7	0.7	0.6	0.7	0.7	0.6
1-1/2" (DN40)	0.7	0.7	0.6	0.7	0.7	0.5
2" (DN50)	0.7	0.7	0.6	0.7	0.7	0.5
2-1/2" (DN65)	0.7	0.7	0.6	0.7	0.7	0.5
3" (DN80)	0.7	0.7	0.6	0.7	0.7	0.5
4" (DN100)	0.7	0.7	0.6	0.7	0.6	0.5
5" (DN125)	0.5	0.5	0.4	0.5	0.5	0.4
6" (DN150)	0.5	0.5	0.4	0.5	0.4	0.3
8" (DN200)	0.3	0.3	0.2	0.5	0.3	0.25
10" (DN250)	0.3	0.3	0.2	0.3	0.3	0.2

Tips: Are diaphragm valves manual?

Diaphragm valves can be operated manually or automatically, depending on the specific application and the design of the valve.

Manual Operation: In many cases, diaphragm valves are designed to be operated manually. This involves turning a handwheel or lever to control the position of the diaphragm, which in turn regulates the flow of the fluid through the valve. Manual diaphragm valves are often used in situations where precise control of flow is not critical, and they are relatively simple to operate.

Automatic Operation: Diaphragm valves can also be automated using various mechanisms such as pneumatic or electric actuators. Automated diaphragm valves are commonly used in industrial processes where precise and remote control of fluid flow is required. These valves can be controlled by computers or other control systems, and they can be integrated into larger automated systems.
