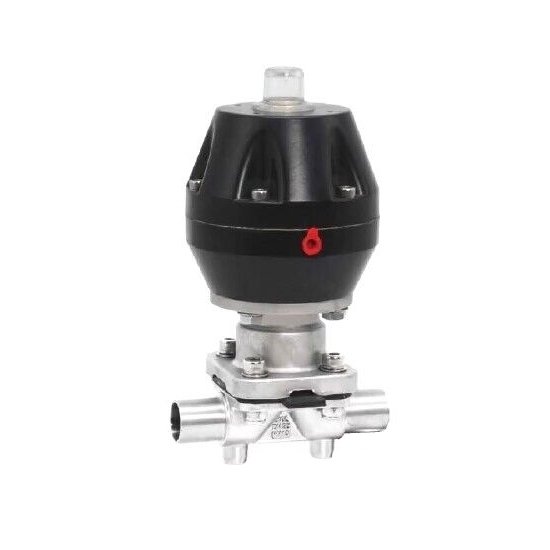

1 1/4" Pneumatic Diaphragm Valve, Sanitary

0 reviews • Write a review

from

$409.23

Ex Tax: $409.23

Stock: In Stock
Model: RDDLZ-PDV-32
Weight: 1.00
SKU: RDDLZ-PDV-32

Available Options

Short Description

Actuator Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

1-1/4" (DN32) pneumatic diaphragm valve is widely used in food industries such as sanitary brewing, dairy products and beverages, as well as pharmaceutical fields under aseptic conditions, to realize the control and switch of pipeline fluids.

Specifications

Model: RDDLZ-GMG661F/GMG6K61F/GMG6B61F-10RL
Size: DN32 (1-1/4 inch)
With Actuator: Yes
Actuator Type: Double Acting/Normally Open/Normally Closed
Function: Interception
Structure Type: Weir Type
Connection Form: Welding
Diaphragm Quantity: Double Diaphragm
Drive Mode: Pneumatic
Level: Sanitary Level
Type (Channel Position): Two-Way
Weight: About 8kg

Dimensions (Unit: mm)

DN	L	D	d	B	C
32	150	31.8	29	140	230

Applications

Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

Tips: What is a sanitary diaphragm valve?

A sanitary diaphragm valve is a type of pneumatic diaphragm valve that is designed specifically for use in applications where hygiene is a critical concern, such as the food and beverage, pharmaceutical, and biotechnology industries. These valves are used to regulate the flow of fluids and gases in processing systems, ensuring that the materials being processed remain free from contamination.
