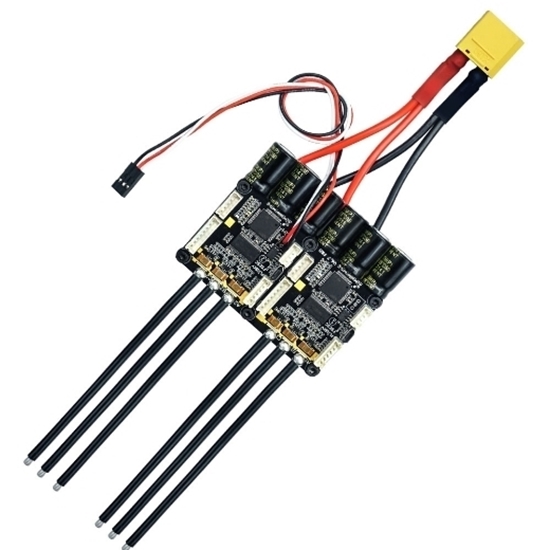

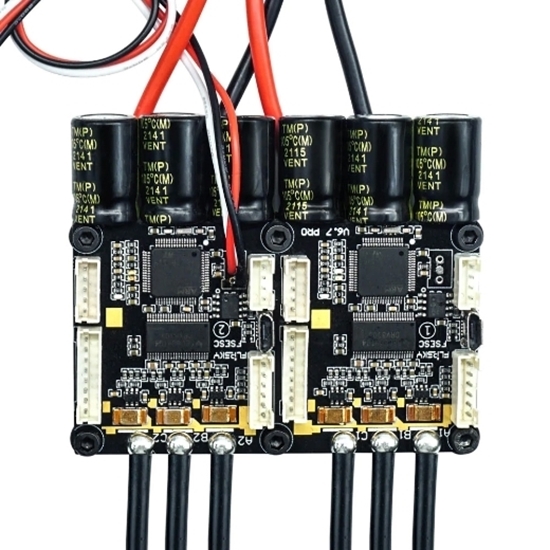

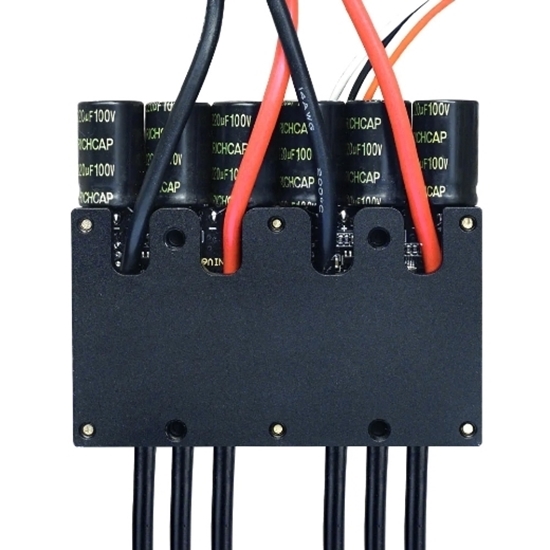

70A/140A 4-12S Electronic Speed Controller (ESC) For Dual BLDC Motor

0 reviews • Write a review

from

$544.47

Ex Tax: $544.47

Stock: In Stock
Model: RDDLZ-ESC-140-412D
Weight: 1.00
SKU: RDDLZ-ESC-140-412D

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost ESC controller is widely used in remote control and vehicle applications. Continuous current 70A/140A, safe voltage 14-60V (4S -12S). The provided electronic speed controller supports the current/duty cycle/speed/position control mode and can adjust the speed of the motor according to the control signal.

Specifications

Model: RDDLZ-VH-M67PS-N-070
Voltage: 14V-60V (Cells: 4-13S, safe for 4S to 12S, voltage spikes may not exceed 60V)
Continuous Current: 70A/140A
Instantaneous Current: 200A
Size: 67mmx39mmx18.7mm
Weight: 130g
EPRM: 150000
Motor Cable: 12 AWG
Power Cable: 12 AWG
Regenerative capacity: Yes
Programmable: Yes
Communication Method: PPM, ADC, NRF, UART
Communication Ports: USB, CAN, UART, SPI, IC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Control Mode: Current, duty cycle, speed and position control modes are supported.

Dimension (Unit: mm)

Wiring diagram

Tips: How does an electronic speed controller work?

The ESC (Electronic Speed Controller) translates this movement by the driver into a signal that increases or decreases the power produced by the motor. The Receiver picks up the signal from your transmitter in the model and, once decoded, is sent to the ESC.
