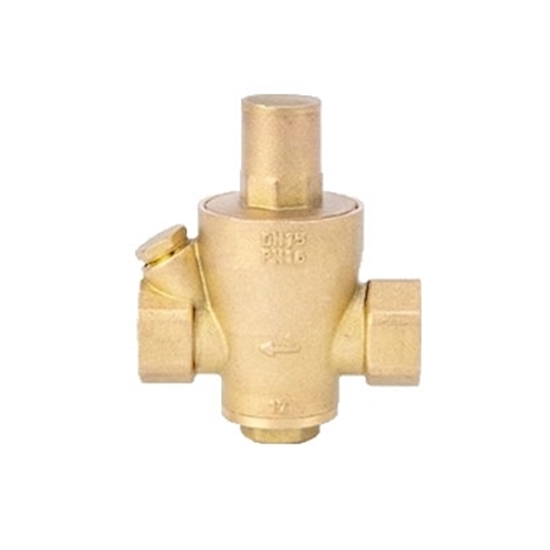

1-1/4 Inch Adjusting Water Pressure Regulator

0 reviews • Write a review

from

$101.68

Ex Tax: $101.68

Stock: In Stock
Model: RDDLZ-WPR-DN32
Weight: 1.00
SKU: RDDLZ-WPR-DN32

Available Options

Short Description

with Gauge

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 1-1/4 inch adjusting water pressure regulator is suitable for residential applications where frequent cleaning of sediment and debris is required. The built-in stainless steel screen traps debris without buildup to protect your plumbing system, gauge is optional.

Specification

Model: RDDLZ-WPR-DN32
Drive Mode: Hydraulic control
Size: 1-1/4 Inch
Nominal pressure: 1.6 Mpa
Structure Type: Adjustable
Mode of Action: Double acting
Nominal diameter: DN 32mm
Type (Channel Location): Straight through
Function: Decompression type
Connection Method: Thread
Lining Material: Rubber
Flow Direction: One way
Working Pressure: 0.6 Mpa
Operating Temperature: -20℃~+80℃
Weight: 3.69kg

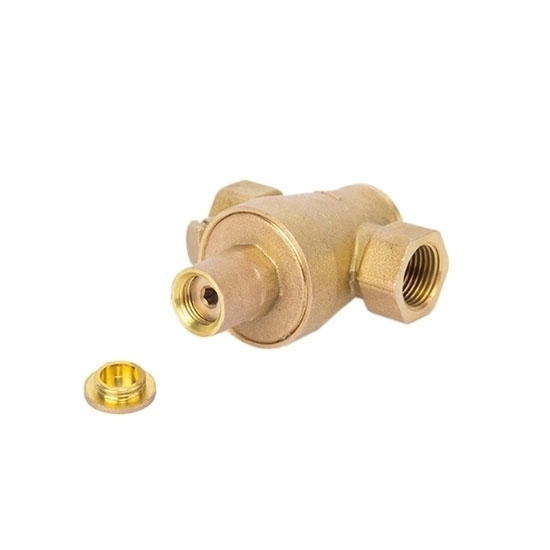

1-1/4 Inch Water Pressure Regulator Detail

Water Pressure Regulator Applications

Tips: How to adjust the outlet pressure of the pressure reducing valve?

Turn off the water end of the pressure reducing valve after the valve, then open the black cover on the adjusting spring, there is a word starter adjustment, from top to bottom, clockwise rotation of the outlet pressure increases, counterclockwise rotation of the outlet pressure decreases, while adjusting to observe the pressure gauge reading on the valve body or after the valve, stop adjusting after reaching the required pressure and reset the black cover.
