1/2 Inch Adjusting Water Pressure Regulator

0 reviews • Write a review

from

$79.98

Ex Tax: $79.98

Stock: In Stock
Model: RDDLZ-WPR-DN15
Weight: 1.00
SKU: RDDLZ-WPR-DN15

Available Options

Short Description

with Gauge

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

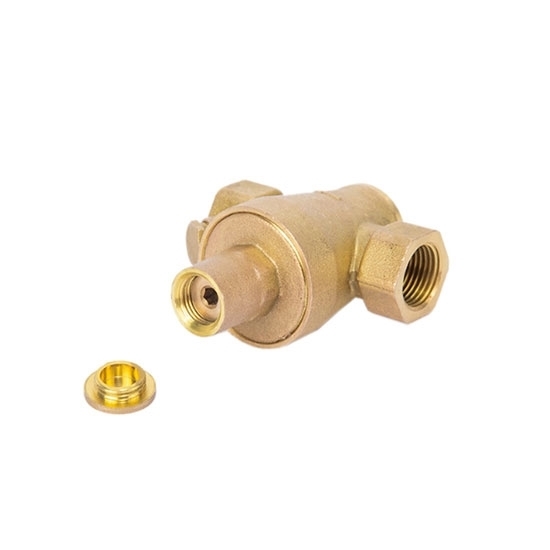

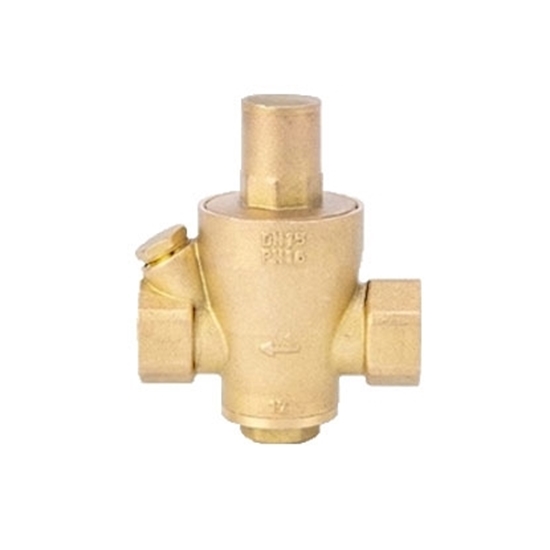

The 1/2 Inch adjustable water pressure reducing valve has a built-in filter (removable for cleaning) and an optional gauge, which allows users to adjust the water pressure for outdoor and home use.

Specification

Model: RDDLZ-WPR-DN15
Drive Mode: Hydraulic control
Size: 1/2 Inch
Nominal pressure: 1.6 Mpa
Structure Type: Adjustable
Mode of Action: Double acting
Nominal diameter: DN 15mm
Type (Channel Location): Straight through
Function: Decompression type
Connection Method: Thread
Lining Material: Rubber
Flow Direction: One way
Working Pressure: 0.6 Mpa
Operating Temperature: -20℃~+80℃
Weight: 3.69kg
Dimension: 150 x 150 x 100mm

1/2 Inch Water Pressure Regulator Detail

Water Pressure Regulator Applications

Tips: How to install a water pressure regulator?

The water pressure regulator is generally installed after the water filter, before the oil mist or fixed value, and be careful not to reverse its inlet and outlet, the regulator should be used when the knob should be relaxed, so that the diaphragm is often deformed by pressure and affect its performance.
For the convenience of operation and maintenance, the adjusting water pressure regulator is generally installed upright on a horizontal pipe.
Installation should pay attention to make the flow direction of the medium in the pipeline and the direction of the arrow shown on the valve rest.
In order to prevent the water pressure regulator after the pressure overpressure, should be not less than 4M away from the valve outlet to install a tap Water pressure reducing valve.
