Emergency Stop Switch For Belt Alignment Control, 5A/380VAC

0 reviews • Write a review

from

$108.47

Ex Tax: $108.47

Stock: In Stock
Model: RDDLZ-SFYS-BAS
Weight: 1.00
SKU: RDDLZ-SFYS-BAS

Available Options

Shell Material

Action Angle

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

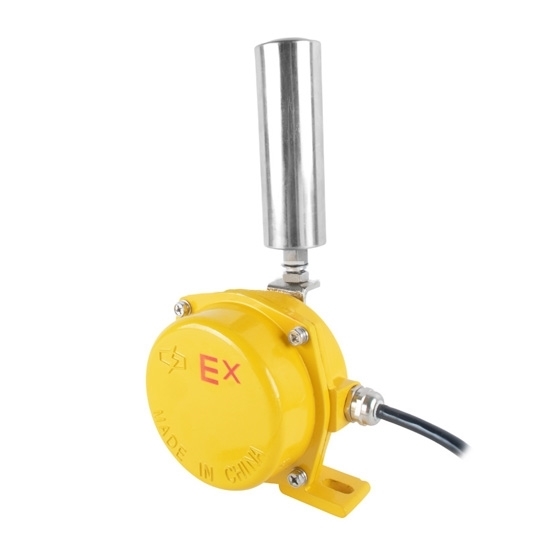

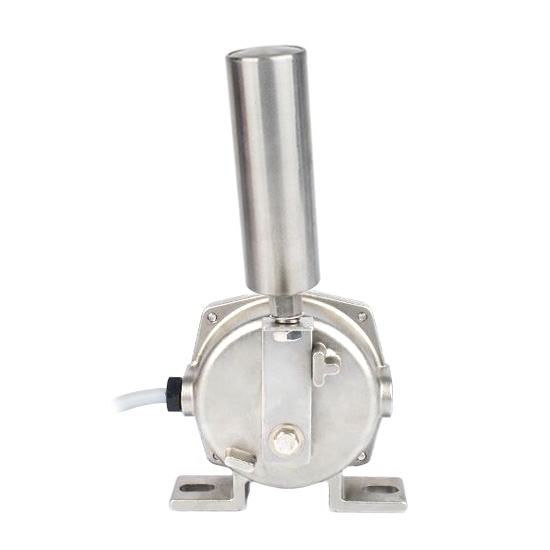

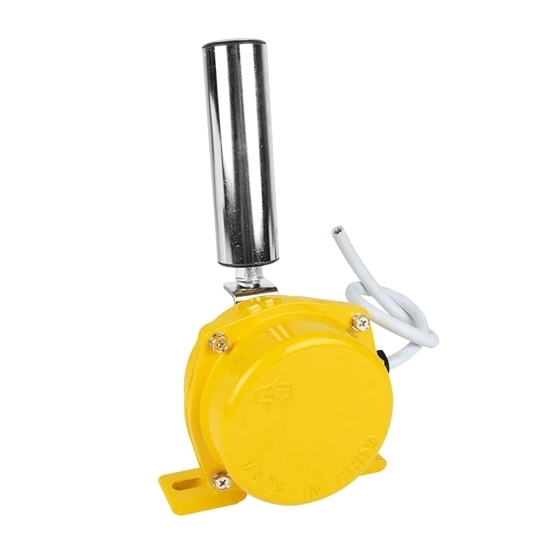

Two-stage emergency stop switch for belt alignment control has optional action angle of 12°-30° / 10°-45° / 25°-35° / 15°-45°, contactors 2NO+2NC, contact capacity 5A/380VAC and automatically return mode.

Application: Conventional belt conveyor, shuttle conveyor, feeder conveyor, bucket elevator, packaging production line, stacker-reclaimer system, crane, excavator, ship loading and unloading system, horizontal feeder, etc.

Specification:

Model	RDDLZ-SFYS-KPT1	RDDLZ-SFYS-BKPT1	RDDLZ-SFYS-STKPT1
Shipping weight	2kg	3kg	3kg
Shell material *	Cast aluminum	Cast aluminum (explosion-proof)	Stainless steel
Stage	2-stage	2-stage	2-stage
Action angle *	12°-30°, 10°-45°, 25°-35°	12°-30°, 10°-45°, 25°-35°	12°-30°, 10°-45°, 25°-35°, 15°-45°
Limit angle	70°	70°	70°
Contact type	2NO+2NC	2NO+2NC	2NO+2NC
Contact capacity	5A/380VAC	5A/380VAC	5A/380VAC
Return mode	Automatically return	Automatically return	Automatically return
Distance between vertical roll and belt	50-100mm	50-100mm	50-100mm
Max. distance between two switches	50m	50m	50m
Working temperature	-20~+50℃ (-4~+122℉)	-20~+50℃ (-4~+122℉)	-30~+60℃ (-22~+140℉)
Working humidity	≤85%	≤85%	≤85%
Working life	≥1million times	≥1million times	≥1million times
Protection class	IP67	IP67	IP67
Cable length	1.5m	1.5m	1.5m

Dimension (unit: mm):

Installation:

Tips: Installing an emergency stop switch for belt alignment control
The working principle of the emergency stop switch for belt alignment control is that when the conveyor belt deviates, the belt touches the vertical roll of the switch. When the vertical roll deflects to the first stage action angle, the first group of contact switch operates and outputs a alarm signal. If the belt continues to deviate so that the vertical roll of the emergency stop switch reaches the second stage action angle, the second group of contact switch sends a stop signal. If it is connected to the control circuit, it can realize automatically shutdown.
Installation method:

Fix the emergency stop switch on the bracket and weld it to the rack.
Set the two-stage belt alignment switches on both sides of the conveyor belt. The vertical roll should be perpendicular to the plane of the edge of the conveyor belt.
The distance between the vertical roll of the emergency stop switch and the edge of the conveyor belt is L=50 ~ 100mm.
A pair of emergency stop switches can be installed at every 50m position of conveyor belt.
