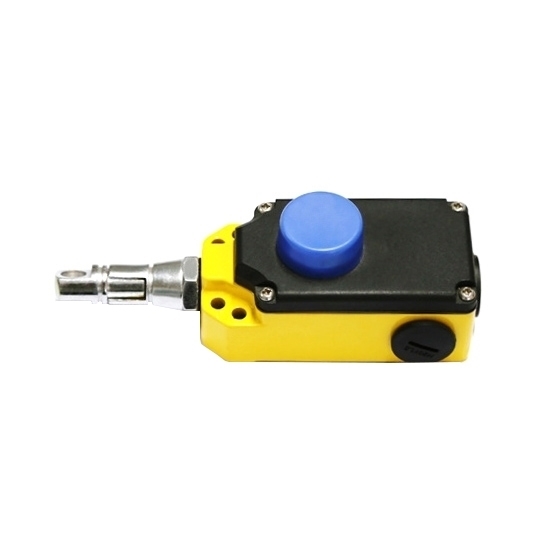

Emergency Stop Rope Pull Switch, 1NO 1NC, 6A/380VAC

0 reviews • Write a review

from

$153.46

Ex Tax: $153.46

Stock: In Stock
Model: RDDLZ-SFYS-PRS1
Weight: 1.00
SKU: RDDLZ-SFYS-PRS1

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Emergency stop rope pull switch has 1-way emergency stop function, with 1NO+1NC contactors and contact capacity 6A/380VAC.

Application: Conventional belt conveyor, shuttle conveyor, feeder conveyor, bucket elevator, packaging production line, stacker-reclaimer system, crane, excavator, ship loading and unloading system, horizontal feeder, etc.

Specification:

Model	RDDLZ-SFYS-LSC-II
Shipping weight	2kg
Direction	1-way
Contact type	1NO+1NC
Contact capacity	6A/380VAC
Return mode	Manually return
Shell material	Aluminum alloy
Max. rope length	20±2m
Operating force	100N axial force
Nnlock method	Press the reset button
Operation way	Pull the rope, or cut the rope
Installation	M8 screw fixation
Working temperature	-25~+80℃ (-13~+176℉)
Working humidity	≤85%
Working life	≥1million times
Protection class	IP65
Wiring method	Screw connection (M20*1.5mm)
Reset button	Yes
Indicator	Yes

Dimension (unit: mm):

Tips: What is an emergency stop rope pull switch?
The emergency stop rope pull switch is composed of pull rod, reset button, lock slot and micro switch. It is installed on machines and equipments that cannot be protected by protective doors, such as belt conveyor. The one-way emergency stop rope pull switch reaches the operating state through pre-tension force. That is to say, the normally closed contact is closed and the normally open contact is in open state. When the rope is pulled or broken, the normally closed contact is definitely open, and the normally open contact is closed. This cuts off the power of control line and stops the conveyor. At this time, the state of the emergency stop switch is locked. The unlocking method is generally achieved by pressing the reset button. Compared with the emergency stop button, the emergency stop rope pull switch can be operated at any point on the rope.
