Circular Connector, 2/3/4/5/6/7/8/10/12 Pin, M25

0 reviews • Write a review

from

$53.81

Ex Tax: $53.81

Stock: In Stock
Model: RDDLZ-CIRCN-25M
Weight: 1.00
SKU: RDDLZ-CIRCN-25M

Available Options

Short Description

Item

Number of Pins

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

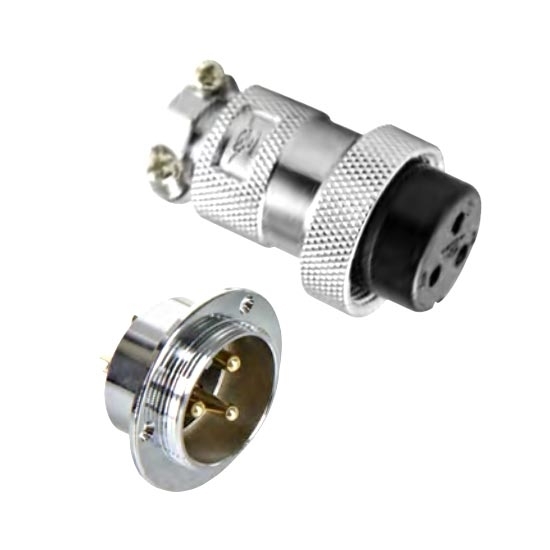

Circular connector has 2/3/4/5/6/7/8/10/12 pin to select.

Specification:

Model	RDDLZ-CIRC-25M
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with chromeplate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ11.5mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6	7	8	10	12
Rated current/voltage	45A-300V	45A-300V	45A-300V	35A-250V	35A-250V	35A-250V	16A-250V	16A-250V	16A-250V
Operating voltage	AC 500V	AC 500V	AC 400V	AC 400V	AC 300V	AC 300V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 2000V	AC 2000V	AC 2000V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V
Insulation resistance at DC 500V (MΩ)	2000	2000	2000	2000	2000	2000	2000	2000	2000
Contact resistance at 1A (MΩ)	1	1	1	1	1	1	3	3	3
Solder cup diameter Ф (mm)	2.4	2.4	2.4	2.4	2.4	2.4	1.6	1.6	1.3
Pin diameter Ф (mm)	3.5	3.5	3.5	3	3	3	2	2	1.5

Pin assignments:

Dimensional drawing (unit: mm):

Note: Dust cap is not in the packing list.
Tips: Installation way and shape of circular connector
The installation way of circular connector includes front installation and back installation. And the fixing ways include rivet, screw, rand or rapid locking of bayonet lock of connector. There is a kind of connector with plug and socket that both are free-ends, namely cable (neutral) connector.
Circular connector has different shapes. Users choose the shape of circular connector according to the outer structure (straight, right angle), external diameter of wire or cable, the fixing requirements of shell (volume, weight) and whether need to connect a metal flexible tube. For choosing a connector on the panel, the pearance and color should be considered.
