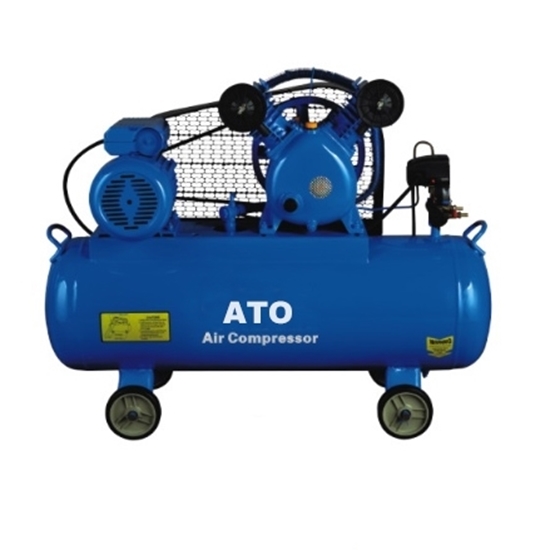

2 Hp Belt Driven Air Compressor, 115 PSI, 15/18 Gallon

0 reviews • Write a review

from

$946.15

Ex Tax: $946.15

Stock: In Stock
Model: RDDLZ-COMPR-002BD
Weight: 1.00
SKU: RDDLZ-COMPR-002BD

Available Options

Short Description

Tank Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 hp (1500W) Air Compressor Features:

2 hp single-stage belt drive air compressor
It has an air delivery of 7.1 CFM at 115 PSI
120V AC power voltage at 60Hz frequency
No noise and oilless, easy to operate and maintain

15 Gal. Air Compressor Description

Model	V-0.17/8
Size	92 (L)37 (W)76 (H) CM
Type of the Air Compressor	Belt driven
Tank Capacity	15 Gal. (Can be customized)
Motor Power	2 hp, 1.5 kW (Can be customized)
Power Source	AC Power
Voltage	120V, 60Hz (Can be customized)
Air Delivery	200L/Min, 7.1 CFM
Maximum Pressure	8 Bar, 115 PSI
maximum Speed	1050 rpm
Certification	CE, ROHS, CCC, ISO
Noise Level	with 80DB
Warranty	1 Year
Cooling Method	Air Cooling

Choose Your Air Compressor

You could choose different types of 2 hp belt-driven air compressor pumps with different capacities of air tank.

Model	Gal.	kW	HP	Cylinder	L/min	RPM	PSI	CFM	Bar	Size (cm)
V-0.17/8	15	1.5	2	51x2	200	1050	115	7.1	8	923776
VA-55	18	1.5	2	55x2	180	1100	115	6.4	8	1003775

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

Details

Tips: What is piston type portable air compressor body?

The piston portable air compressor body is the basic component of the air compressor positioning, which is usually composed of three parts, the airframe, midbody and crankcase (base). Each moving part is installed inside the body, which positions and guides the transmission parts. The crankcase is filled with lubricating oil in the external storage, and the cylinder, motor and other devices are connected externally. When running, the piston portable air compressor body must bear the acting force between the piston and the gas and the inertial force of the moving parts and transmit its own weight and compression weight to the foundation.
The structural style of the piston machine body is divided into vertical, horizontal, angle and opposite type with the different types of compressors.
