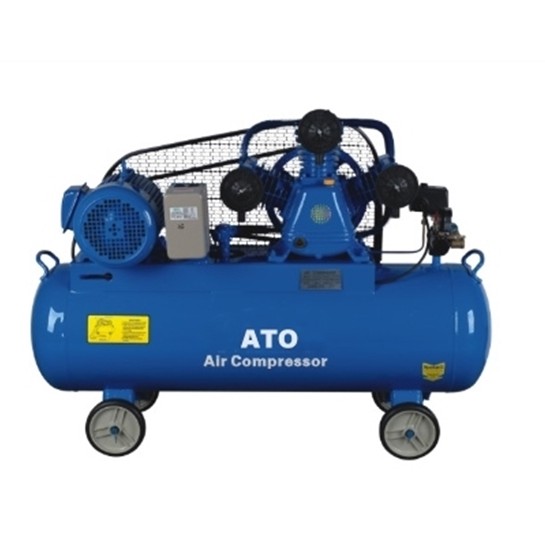

The 120V air compressor is made with an extra-large 88L (23 Gal.) air tank and powered by a 4 hp single phase electric motor that produces 17.6 cfm. This 3 kW belt drive air compressor is ideally suited for anyone looking for serious air power at an affordable price!

4 hp Single Stage Air Compressor Description

Choose Your Air Compressor

You could choose the different stages of 4 hp (3 kW) air compressor for your requirements

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

Packing & Delivery

Details

Tips: Two stage compression of piston belt-driven air compressor
In the actual use of some low pressure and medium-pressure air compressor, the two-stage compression is often used, because the intermediate cooler is set. After the cooling of high-temperature air discharged from single-stage compression, it is then inhaled into two stage cylinder for two stage compression so as to reach the required pressure.
It can reach the requirement for high pressure by using two stage compression. It has lower power consumption than single-stage compression. The temperature of the compressed air which is cooled by the intercooler can be greatly reduced. Some water can precipitate, which ensures good lubrication of the air compressor and provides lower cold air for the next compression. Meanwhile, because the area of two stage piston is smaller than the area single-stage compressor piston, the force on piston can be declined and the force acting on the crankshaft link mechanism can be decreased, which can improve the safety of the operation correspondingly.
