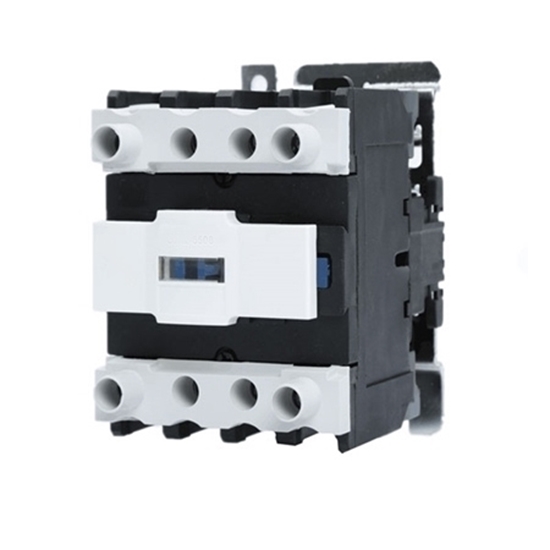

65 Amps 4 Pole AC Contactor 24V/110V/220V Coil

65 Amps 4 Pole AC Contactor 24V/110V/220V Coil
65 Amps 4 Pole AC Contactor 24V/110V/220V Coil
0 reviews • Write a review
from
$105.38
Ex Tax: $105.38
  • Stock: In Stock
  • Model: RDDLZ-ACCON-065
  • Weight: 1.00
  • SKU: RDDLZ-ACCON-065

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4 pole AC contactor relay, 65amps, 24V/110V/220V coil voltage for selection, 4P (4NO) or 4P (2NO+2NC) contact form. As a bypass contactor, it is widely used for long-distance connecting and breaking circuit.

Specifications

ModelRDDLZ-CJX2-65
Rated Operational Current (AC-3)380V65A
660V42A
Conventional Heating Current80A
Rated Insulation Voltage690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)220V18.5kW
380V30kW
660V37kW
Operational Frequency (AC-3)Electric Life600 times/h
Mechanical Life3600 times/h
Service LifeElectric Life (104 times)60
Mechanical Life (104 times)800
Matching Fusing ModelRT16-80
Average Power Consumption (20℃) @ 50HzPick-up230VA
Holding32VA
Unit weight(kg)4P (4N/O)1.32
4P (2N/O+2N/C)1.37
Ambient Temperature-5℃~+40℃
Altittude≤2000m
Rail Size75mm
Class of PollutionClass 3
Installation CategoryⅢ

Dimensions (unit: mm)

4P (4NO) AC contactor

4P (2NO+2NC) AC contactor

Tips: Coil overheating or burning, how to solve?
Possible Causes:

  • The power supply voltage is too high or too low.
  • Line technical parameters (such as rated voltage, frequency, load factor and applicable working system, etc.) do not match the actual use.
  • Operating frequency is too high.
  • Insulation damage due to poor coil manufacturing or mechanical damage.
  • The moving part is stuck.
  • The AC core is uneven or the magnetic air gap is too large.
  • AC contactor derives the double coil of DC operation, because the normally closed interlocking contact welding does not release, and the coil is overheated.

Processing method:

  1. Adjust the power supply voltage.
  2. Exchange coils or contactors.
  3. Select other suitable contactors.
  4. Replace the coil to remove the obstacle that causes mechanical damage to the coil.
  5. Specially designed coils.
  6. Eliminate jamming.
  7. Clear the pole face or change the core.
  8. Adjust the interlocking contact parameters and replace the burnt coil.
