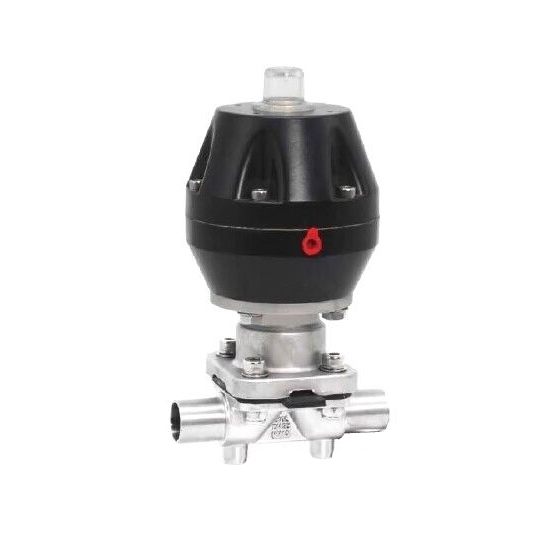

1" Pneumatic Diaphragm Valve, Sanitary

0 reviews • Write a review

from

$328.92

Ex Tax: $328.92

Stock: In Stock
Model: RDDLZ-PDV-25
Weight: 1.00
SKU: RDDLZ-PDV-25

Available Options

Short Description

Actuator Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

Cheap 1 inch pneumatic diaphragm valve provides precise flow control, DN25, welding connection, weir type. Sanitary diaphragm valve with a pneumatic actuator is suitable for aseptic conditions in the pharmaceutical sector.

Specifications

Model: RDDLZ-GMG661F/GMG6K61F/GMG6B61F-10RL
Size: DN25 (1 inch)
With Actuator: Yes
Actuator Type: Double Acting/Normally Open/Normally Closed
Function: Interception
Connection Form: Welding
Diaphragm Quantity: Double Diaphragm
Drive Mode: Pneumatic
Level: Sanitary Level
Type (Channel Position): Two-Way
Weight: About 5kg

Dimensions (Unit: mm)

DN	L	D	d	B	C
25	128	25.4	22	110	210

Applications

Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

Tips: What is a pneumatic diaphragm valve?

A pneumatic diaphragm valve is a type of valve that uses a flexible diaphragm to regulate the flow of fluid or gas through a pipe or duct. The valve is controlled by compressed air or gas, which is used to inflate or deflate the diaphragm, allowing it to open or close the valve.

The diaphragm is typically made of a flexible material such as rubber or plastic and is placed between the valve body and a closing mechanism. When compressed air or gas is introduced into the valve body, it flows into a chamber behind the diaphragm, causing it to flex and move away from the closing mechanism. This creates an opening for the fluid or gas to flow through.

When the compressed air or gas is released from the valve body, the diaphragm returns to its original position, closing the valve and stopping the flow of fluid or gas. Pneumatic diaphragm valves are commonly used in a variety of industries, including pharmaceuticals, food and beverage, and water treatment, among others. They are preferred for their ability to handle a wide range of fluids and gases, as well as their reliability and ease of maintenance.
