100 Watt Pure Sine Wave Power Inverter, 12 Volt DC To 220 Volt AC

0 reviews • Write a review

from

$54.44

Ex Tax: $54.44

Stock: In Stock
Model: RDDLZ-PI-100W
Weight: 1.00
SKU: RDDLZ-PI-100W

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

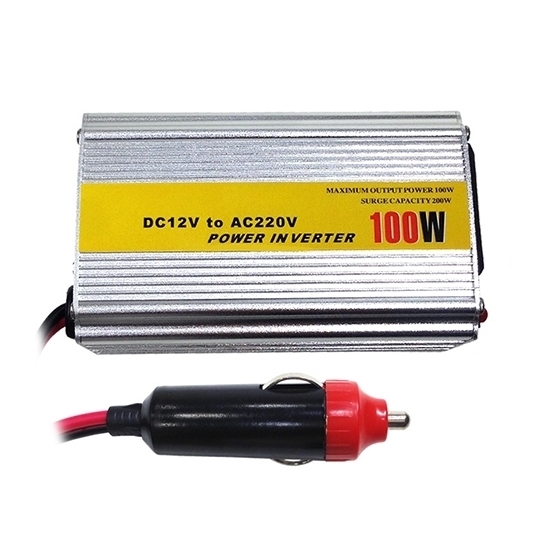

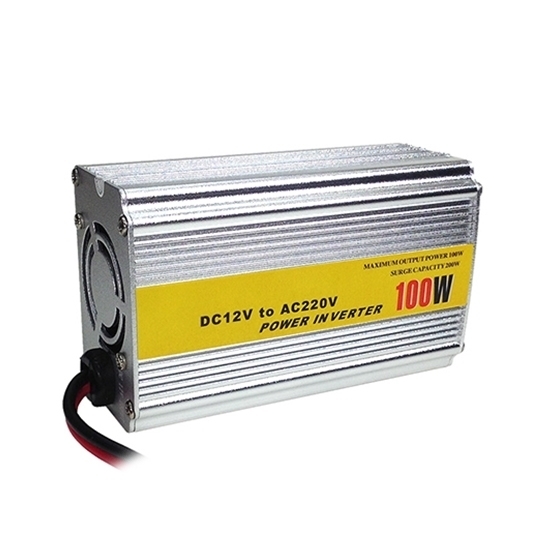

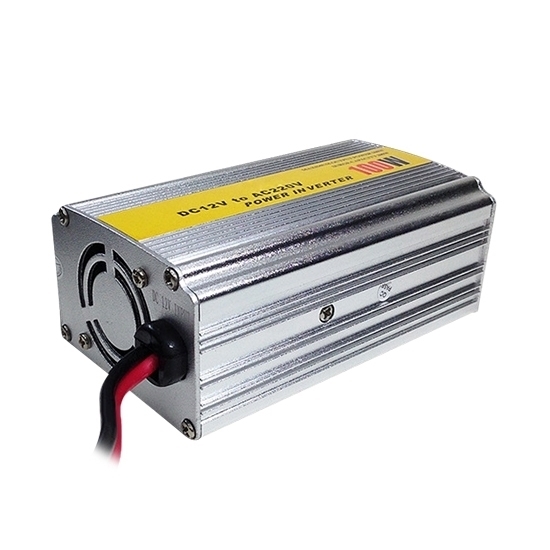

Portable 100 Watt power inverter with aluminum alloy construction for optimal heat dissipation. Converts 12V DC to 220V AC at 87% efficiency. Compact silver design offers portable power supply at a low cost.

Note: 100W pure sine wave inverter can't power a small refrigerator.

Specification

Model	RDDLZ-KDP-150W
Input Voltage	DC12V (11-14V) 1*25A MAX
Output Voltage	AC220V
Continuous Power	100W
Peak Power	200W
Output Frequency	50Hz±1Hz
USB Output Voltage	5V/500MA
Output Waveform	Modified sine wave
Effective Output Power	≥87%
Low Voltage Protection	9.8V±0.5V
Low Voltage Shutdown	15.5V±0.5V
High Voltage Protection	15.5V±0.5V
High Voltage Shutdown	14.5±0.5V
Overload Protection	>120W
Overheating Protection	>60°C
Size	1257046mm
Single Weight	0.64kg
Output Socket	Universal socket

Features

Efficient Power Conversion: 100W power inverter for home or car delivers high conversion efficiency from 12V DC to 220V AC.
Complete Safety Protection: Built-in low voltage, high voltage and overload protection ensures safe operation.
Universal Compatibility: Equipped with a universal output socket, pure sine wave DC to AC inverter supports a wide variety of devices.
Durable Thermal Design: Silver shell provides excellent heat dissipation and durable outdoor performance.

Dimension (Unit: mm)

Details

Application

Tips: What is a pure sine wave inverter? How does it differ from a modified sine wave inverter?

A pure sine wave inverter converts DC power (like from a battery) into AC power that is as smooth and stable as the electricity from your wall outlets. This makes it safe for sensitive electronics such as laptops, medical devices, and audio equipment. For example, a 100 Watt auto power inverter is ideal for clean, reliable power in low-power applications. In comparison, although more affordable, modified sine wave inverters produce a blocky, stair-step waveform that can cause humming, inefficiency, or even damage to sensitive electronics.
