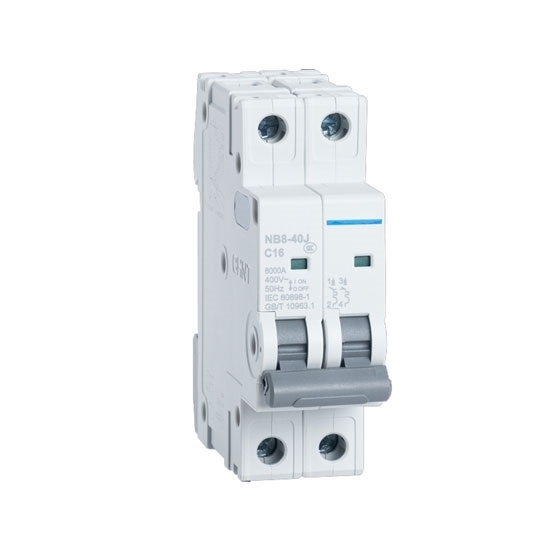

Double pole miniature circuit breaker with 3 amp rated current, generally used as a supplementary protector to protect different applications in industrial, commercial and residential areas from overload and short circuits.

Double Pole MCB Breaker Information

• Rated Current: 3 amp
• Rated Voltage: 230/400V AC
• Number of poles: 2 poles
• 6 kA rated short-circuit breaking capacity
• Compliant with IEC standard
• C curve trip characteristic
• With overload protection and short circuit protection function

Technical Data

Double Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: Wiring means of circuit breaker
The wiring means of the circuit breaker includes five types, which are respectively front-panel wiring, back-panel wiring, plug-in, pull-out wiring and rail type.

1. Front-panel wiring: This is the most pervasive wiring means. When the circuit breaker is installed into a set of equipment together with switch cabinet, power distribution cabinet etc., the wires are connected in front of the panel and fastened by bolts, that is, the power lines and load lines are directly connected in front of the wiring panel of the circuit breaker.
2. Back-panel wiring of the circuit breaker: This means when the circuit breaker is installed on the packaging equipment, at the back of the installing plate, there are six wires on the junction plate of the circuit breaker base(three at the power terminal and three at the load terminal) which have been tightened by the nuts passing through the bolts of the installing panel and connecting with the power line and load line.
3. Plug-in wiring: It means to install one installation base of the circuit breaker on the installing panel of the package equipment. There are six plugs on the installation base while six sockets on the connecting panel of the circuit breaker. There is a connecting panel on the surface of the installation base (front-panel wiring of the insert type) or there are bolts at the back of the installation base (back-panel wiring of the insert type). The installation base is preset with the power line and load line. In using, the circuit breaker will be inserted into the installation base directly.
4. Rail wiring: Rail mounting applies to the small-size or miniature circuit breaker. The circuit breaker is embedded into the rail and then carries out front-panel wiring.
