Industrial Endoscope, 5.7" LCD, UV Light Inspection Camera

0 reviews • Write a review

from

$2,025.15

Ex Tax: $2,025.15

Stock: In Stock
Model: RDDLZ-WSZ
Weight: 1.00
SKU: RDDLZ-WSZ

Available Options

Short Description

Outer Diameter of Probe

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

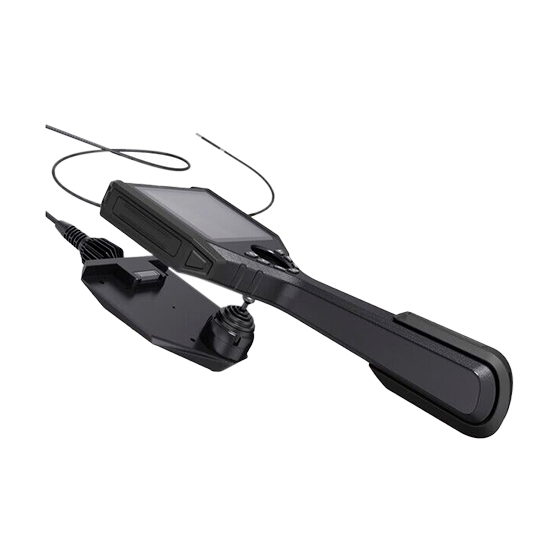

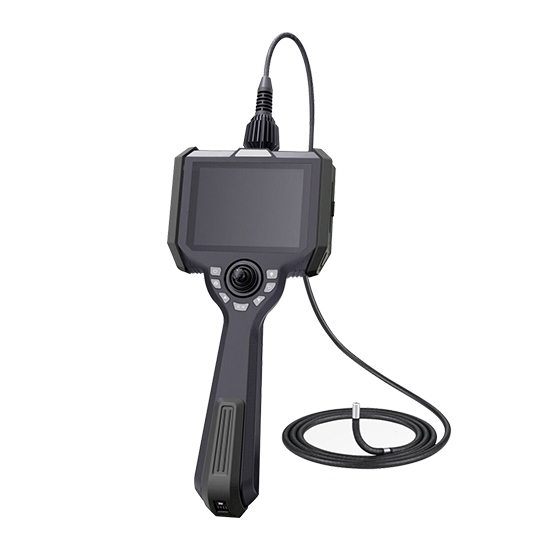

The endoscope camera comes with UV fluorescence irradiation and a 6mm probe. IP67 waterproof can make industrial endoscopes adapt to harsh environments. It is usually used in the petrochemical industry, , and power, rail transportation, search and rescue, investigation, and blasting.

Specifications

Model	RDDLZ-WS-Z
Main unit size	350 X 155 X 59 (mm)
Display	6" HD display
File Storage Capacity	32G TF card (other customization)
Video Output	HDMI video output interface
Image/Video Format	Image JPEG (JPG) format, video AVI format
Image Control	Freeze, zoom, photo, flip, video playback, analog ruler function
System Language	Chinese (traditional), English, and other seven language functions
Battery Life	≥8 hours
Storage Temperature	-20°C~60°C
Relative Humidity	Maximum 90%, non-condensing
Protection class	IP54
Structure	Pipeline/Camera
Insertion tube length	1m
Probe diameter	3.9mm/6mm
Field of view (θ)	120°
Depth of field range	10~200mm, 50mm~(optional)
Orientation	360° omnidirectional bending
Illumination type	Rear LED fiber optic conduction, violet light/double light (optional)
Probe Operating Temperature	-20°C~70°C
Protection class	Probe IP67
Bend Angle	100°, 130°, 150°
Camera Probe Pixel	1 Megapixel (1.0 MP)
Illuminating system	Front LED lighting
Probe IP grade	IP67
Lens	Front view/ side view/ double view optional
Resolution	1280P
Articulating	360° full direction articulation

Features

Equipped with a 5-inch high-definition LCD, the endoscope camera has UV fluorescence irradiation, and the 360-degree probe has an all-round guidance function.
Installed with millions of high-definition cameras, different types of pipelines can be replaced, and the pipelines are of high quality and more wear-resistant.
Ultra-long battery life/energy storage module. The endoscope battery can be used for a long time by the device, and the battery can be replaced directly or powered by USB. The rear-mounted LED light source warranty service is more considerate, and the rear-mounted LED light source is provided with a lifetime warranty service to solve customers' worries.
Insertion tubes and probes are designed to withstand harsh environments. The endoscope camera’s insertion tube and probe are waterproof, oil-resistant, and corrosion-resistant, and can work normally in water or oil for 30 minutes.

Details

Tips: What is the function of an industrial endoscope?

Inspection and repair: Industrial endoscopes can enter narrow or hard-to-reach areas, such as pipes, pipe bends, machine interiors, etc., to check the status and damage of equipment.
It can be used to detect blockage, corrosion, cracks, water leakage, and other problems inside pipelines, helping engineers and maintenance personnel determine the need for repair or replacement.
Preventive maintenance: By regularly using industrial endoscopes to inspect the internal conditions of equipment, potential faults and problems can be discovered in advance and corresponding maintenance measures can be taken.
Cost savings: Using industrial endoscopes for inspection and repair can reduce the need to disassemble equipment.
Industrial endoscopes can avoid unnecessary disassembly and assembly by directly observing the inside of the equipment.
Safety: The use of industrial endoscopes can prevent personnel from directly entering dangerous environments, reducing risks and safety hazards for workers.
