Industrial Endoscope, 4.3" LCD, 5.5mm Probe, 720P

0 reviews • Write a review

from

$288.10

Ex Tax: $288.10

Stock: In Stock
Model: RDDLZ-EDS300
Weight: 1.00
SKU: RDDLZ-EDS300

Available Options

Diameter / Length

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This model has been discontinued, but RDDLZ has similar specifications available for purchase. Please go to the page https://www.ato.com/industrial-endoscope-5-inch-screen.

Low price single or dual lens 4.3inch LCD screen endoscope camera, waterproof semi-rigid tube borescope, 2600mAh rechargeable battery, special design for vehicles, pipe inspection, HAVC, etc.

Specification

Model	RDDLZ-EDS300
Display	4.3 inch color LCD screen
Resolution	JPG image: 1280 x 720 (Pixels)
Resolution	AVI video: 1280 x 720 (Pixels)
Focus Range	30mm~60mm
Viewing Angle	60°

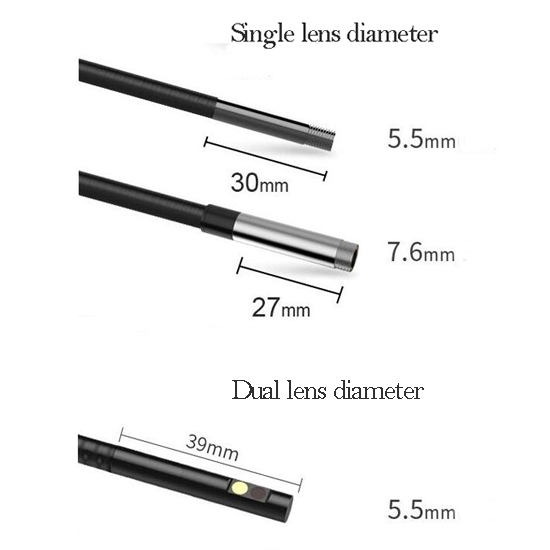

Probe Diameter	5.5mm / 7.6mm / 8mm
Cable Length	3M / 5M
Port	USB charging interface, TF card slot, video output interface
Storage Medium	Micro SD card (come with 16GB, up to 32GB)
Lights	6 LEDs (adjustable light)
Power Source	Rechargeable 2600mAh lithium battery
Battery Life	5 - 6 hours
Working Temperature	32° - 113°F (0° - 45°C)
Menu Languages	English, French, German, Russian, Japanese, Chinese
Waterproof Level	IP 67

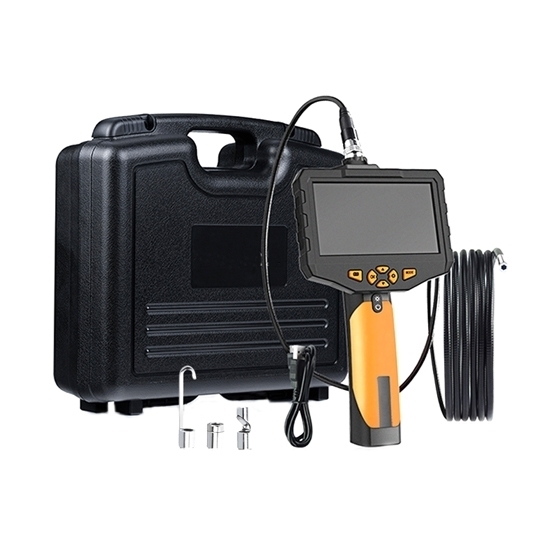

Packing Content	Endoscope, User Manual, Probe, MicroUSB cable, Accessories (Mirror, Hook, Magnet)

Note: Please make sure to charge once every three months if long time no use.

Features

Endoscope with 4.3-inch LCD screen and 2600mAh rechargeable battery, it can be worked right out of the box.
5.5mm or optional diameter borescope camera with high sensitivity for low-light 720P HD camera chip.
Excellent waterproof industrial video endoscope, not only the probe is waterproof, but also the monitor is rainproof.
With 6 adjustable LED lights help to get a better view in dark environment.
Equipped with photo and video function, the user can take and save high quality photos (JPG) or video (AVI) stored on the TF card.

Application

Tips: Classification of industrial endoscopes

Industrial endoscopes can enter areas that are toxic, nuclear, curved, narrow, and invisible to the human eye without causing damage to the components, and then observe the surface of the equipment or components. Industrial endoscopes are classified into the following three types.
1. Hard endoscope: The main structure is imaging objective lens, relay lens, light guide beam, eyepiece, and outer tube. The technical level of optical lens processing determines the technical level of hard endoscopes.
2. Fiber optic endoscope: The main structure is fiber optic image beam. Fiber materials and processes determine product clarity, resolution and lifetime
3. Electronic video endoscope: The main structure is the endoscope, monitor and TV information system center and auxiliary devices. It is characterized by using CCD or COMS photoelectric conversion components to convert optical signals into electrical signals and display images on the monitor.
Currently the most widely used is the electronic video endoscope, RDDLZ supplies high quality electronic video endoscope.
