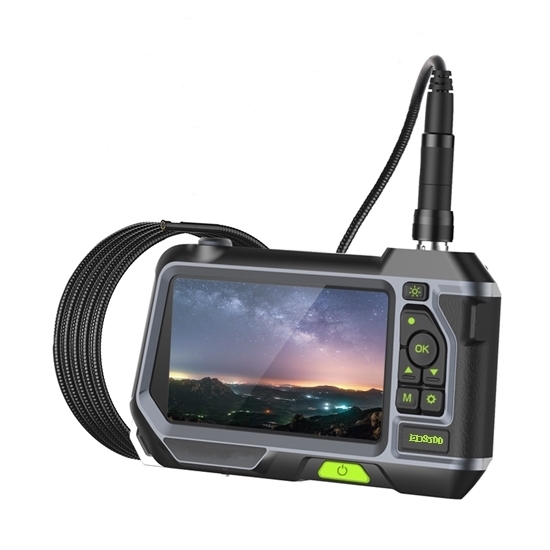

Industrial Endoscope, 5" LCD, 5.5mm Dual Lens, 2.0MP

Industrial Endoscope, 5" LCD, 5.5mm Dual Lens, 2.0MP
Industrial Endoscope, 5" LCD, 5.5mm Dual Lens, 2.0MP
Industrial Endoscope, 5" LCD, 5.5mm Dual Lens, 2.0MP
Industrial Endoscope, 5" LCD, 5.5mm Dual Lens, 2.0MP
Industrial Endoscope, 5" LCD, 5.5mm Dual Lens, 2.0MP
from
$495.38
Ex Tax: $495.38
  • Stock: In Stock
  • Model: RDDLZ-EDS500
  • Weight: 1.00
  • SKU: RDDLZ-EDS500

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality 1280P HD endoscope camera, built-in 3500mAh rechargeable lithium-ion battery, borescope endoscope can work for 4 hours continuously, with a 5 inch LCD screen for instant video viewing without wasting time on software and wifi connections.

Specification

ModelRDDLZ-EDS500
Display5 inch LCD screen
ResolutionScreen resolution: 1280 x 720 (Pixels)
Probe resolution: 1280 x 720, 1920 x 1080 (Pixels)
JPG image: 1280 x 720 (Pixels)
AVI video: 1280 x 720, 1920 x 1080 (Pixels)
Focus Range30mm~80mm
Viewing Angle60°

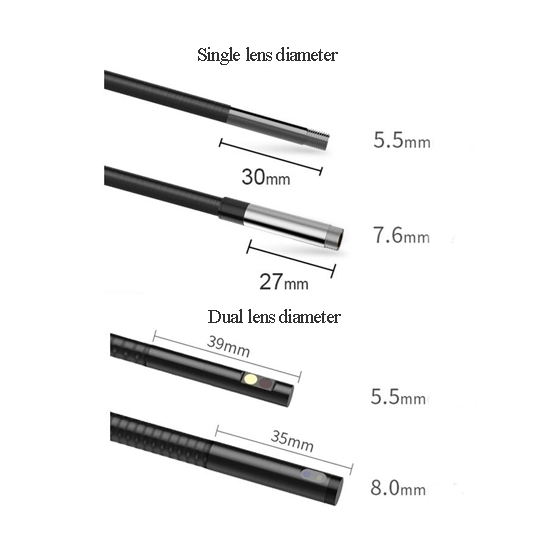

Probe Diameter5.5mm / 7.6mm / 8mm
Cable Length3M / 5M
PortUSB charging interface, TF card slot, video output interface
Storage MediumMicro SD card (come with 16GB, up to 32GB)
Lights4 LEDs (adjustable light)
Power SourceRechargeable 3500mAh lithium battery
Battery Life5 - 6 hours
Working Temperature32° - 113°F (0° - 45°C)
Menu LanguagesEnglish, French, German, Russian, Japanese, Chinese
Waterproof LevelIP 67
Packing ContentEndoscope, User Manual, Probe, MicroUSB cable, Accessories (Mirror, Hook, Magnet)

Note: Please make sure to charge once every three months if long time no use.

Features

  • Endoscope with 5-inch LCD screen and 3500mAh rechargeable battery, it can be worked right out of the box.
  • 5.5mm or optional diameter dual lens (direct view and side view) borescope camera.
  • Excellent waterproof industrial video endoscope, not only the probe is waterproof, but also the monitor is rainproof.
  • The device integrates 4 high-brightness LED lights help to get a better view in dark environment.
  • Equipped with photo and video function, the user can take and save high quality photos (JPG) or video (AVI) stored on the TF card.

Application

Tips: Why choose industrial endoscope
1. The industrial endoscope is directly tested by the probe without disassembling the equipment and without destroying the original structure.
2. The video endoscope camera has clear imaging, good color reproduction, and the detection result is visually visible.
3. The whole machine is light and portable, and the operation is simple. For occasions requiring rapid detection, it can effectively save time and improve detection efficiency.
4. The probe can be turned at any angle of 360°, and the cable can turn in the pipeline, effectively eliminating the dead zone of sight.
5. Endoscope camera cable can pass through the area where the human can not directly reach or the eye can not see, and it can observe the inside of the space with high temperature, high pressure, toxic, insufficient light, narrow and long distance, and is applicable to various detection environments.
