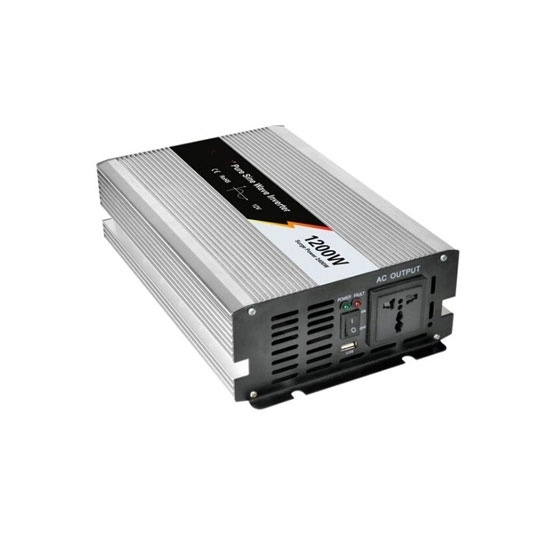

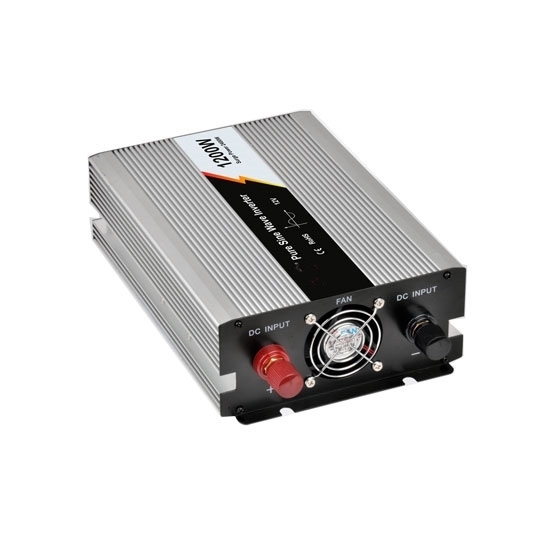

1200 watt DC to AC power inverter outputs pure sine wave with high efficiency, and provides multi-protection with built-in fuse and intelligent cooling fan. It is a best power inverter for car and home use to charge the devices like cell phones, laptops, tablets, CD/DVD player, digital camera, TV sets, microwave ovens, etc.

Specification

Features

• Provides 1200 Watt continuous DC to AC power and 2400 Watt peak power
• Pure sine wave inverter, capable of producing clean & stable electricity
• Soft-start technology
• USB charging port for powering your phone, laptop, etc.
• Aluminum alloy shell with good heat dissipation
• Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
• ON/OFF switch design, easy to use
• Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

LCD Display (Optional)

The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.

Protection Functions & Applications

• Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
• Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
• Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
• Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
• Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
• Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Types of power inverters

• According to the frequency of inverter output AC power, it can be divided into industrial frequency inverter, intermediate frequency inverter and high frequency inverter.
• According to the inverter output phase, it can be categorized into single-phase inverter, three-phase inverter and multi-phase inverter.
• According to the flow direction of the inverter output power, it includes active inverter and passive inverter.
• Based on the forms of inverter main circuit, it consists of single-ended inverter, push-pull inverter, half-bridge inverter and full-bridge inverter.
• According to the type of inverter main switching device, it can be divided into thyristor inverter, transistor inverter, field effect inverter and IGBT inverter and so on.
• According to the DC power supply, it can be classified into two: voltage source inverter (VSI) and current source inverter (CSI).
• Based on the inverter output voltage or current waveform, it can be divided into sine wave output inverter and non-sine wave output inverter.
• According to the inverter control mode, it includes frequency modulation (PFM) inverter and pulse width modulation (PWM) inverter.
• According to the inverter switching circuit work mode, it can fall into resonant inverter, fixed frequency hard switching inverter and fixed frequency soft switching inverter.
• According to the inverter commutation mode, it can be divided into load converter inverter and self-commutated inverter.
