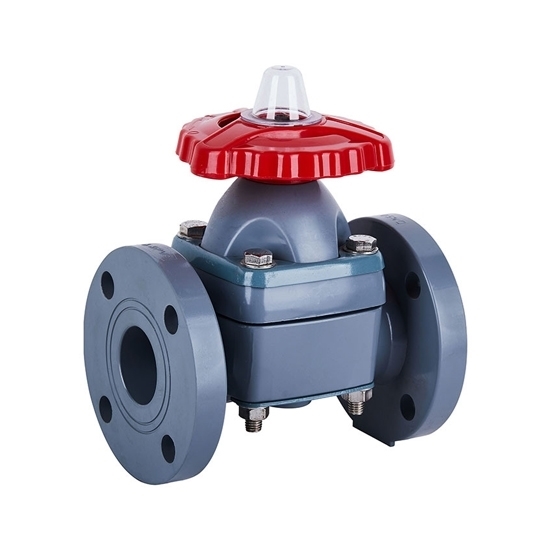

1" Flanged Diaphragm Valve, UPVC/ CPVC

0 reviews • Write a review

from

$154.29

Ex Tax: $154.29

Stock: In Stock
Model: RDDLZ-FDV-DN25
Weight: 1.00
SKU: RDDLZ-FDV-DN25

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

The key component of the PVC diaphragm valve is a flexible diaphragm that separates the valve's body from the flow path. This diaphragm is made of CPVC or UPVC which can withstand corrosive or acidic substances.

Specification

Model	RDDLZ-FDV-DN25
Size	1 inch (DN25)
Structure Type	Flanged Type
Diaphragm Valve Assembly	Parts	Material
	Diaphragm	PTFE
	Film	EPDM
	Valve Body	UPVC, CPVC
	Valve Plate	UPVC, CPVC, Steel, Stainless Steel
	Cover Limit	AS
	Stud	Steel, Stainless Steel
	Retaining Nut	FRPP
	Washer	FRPP
	Wheel	Alloy Material
	Platen	Steel, Stainless Steel
	Double-Headed Stud and Nut	Steel, Stainless Steel
	Bonnet	UPVC, CPVC
	Yoke Nut	Ht300 Steel
	Stem	Steel, Stainless Steel

Dimension (Unit: mm)

Size	Valve Body Material	d	D	L	h	n-φ
1 inch (DN25)	UPVC	86	117	146	19	4-φ14
1 inch (DN25)	CPVC	86	117	147	19	4-φ14

Note: The above dimensions are for reference only, please refer to the actual product.

Detail

Working Pressure

Size	Working Pressure (MPa)
	UPVC			CPVC
	20~40℃	41~60℃	61~80℃	0~40℃	41~60℃	61~90℃
1/2" (DN15)	0.8	0.8	0.7	0.7	0.7	0.6
3/4" (DN20)	0.8	0.8	0.7	0.7	0.7	0.6
1" (DN25)	0.8	0.8	0.7	0.7	0.7	0.6
1-1/4" (DN32)	0.7	0.7	0.6	0.7	0.7	0.6
1-1/2" (DN40)	0.7	0.7	0.6	0.7	0.7	0.5
2" (DN50)	0.7	0.7	0.6	0.7	0.7	0.5
2-1/2" (DN65)	0.7	0.7	0.6	0.7	0.7	0.5
3" (DN80)	0.7	0.7	0.6	0.7	0.7	0.5
4" (DN100)	0.7	0.7	0.6	0.7	0.6	0.5
5" (DN125)	0.5	0.5	0.4	0.5	0.5	0.4
6" (DN150)	0.5	0.5	0.4	0.5	0.4	0.3
8" (DN200)	0.3	0.3	0.2	0.5	0.3	0.25
10" (DN250)	0.3	0.3	0.2	0.3	0.3	0.2

Tips: Flanged diaphragm valve advantages

Flanged diaphragm valves offer several advantages in various industrial applications. Their design features a flexible diaphragm that acts as a barrier between the process fluid and the valve components, providing numerous benefits:

Exceptional Sealing: Diaphragms ensure a tight and reliable seal, preventing leakage and cross-contamination. This is particularly important in industries where purity and sterility are critical, such as pharmaceuticals or food production.
Corrosion Resistance: Diaphragm valves can be made from materials that are highly resistant to corrosion, making them suitable for handling aggressive chemicals and corrosive fluids.
Minimal Maintenance: Their simple construction minimizes the need for maintenance, resulting in reduced downtime and cost savings.
Precise Flow Control: Diaphragm valves offer excellent throttling capabilities, allowing for precise control over flow rates, making them ideal for applications requiring accurate dosing or control.
Biocompatibility: In the medical and biotech industries, these valves are suitable for handling sensitive or biocompatible fluids due to their diaphragm materials.
Reduced Fouling: The smooth, obstruction-free flow path minimizes the risk of fouling and clogging, ensuring consistent performance.
Versatility: Flanged connections make installation and integration into existing systems straightforward.
