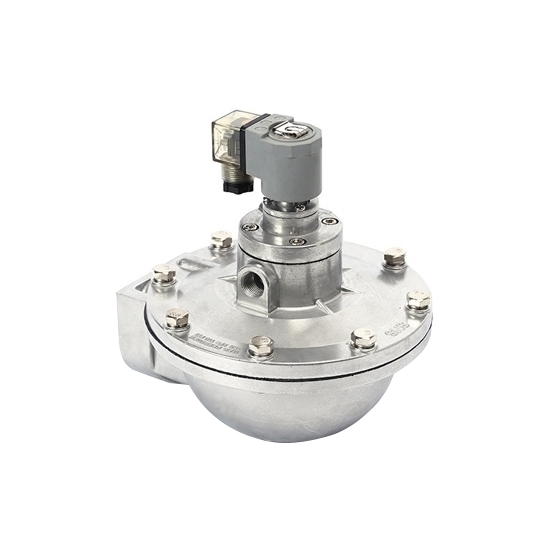

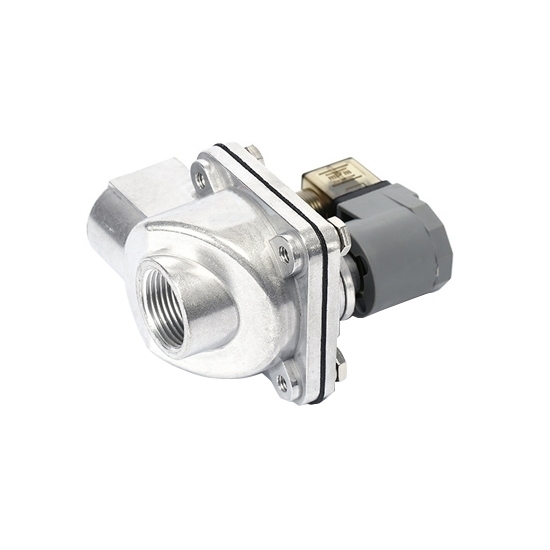

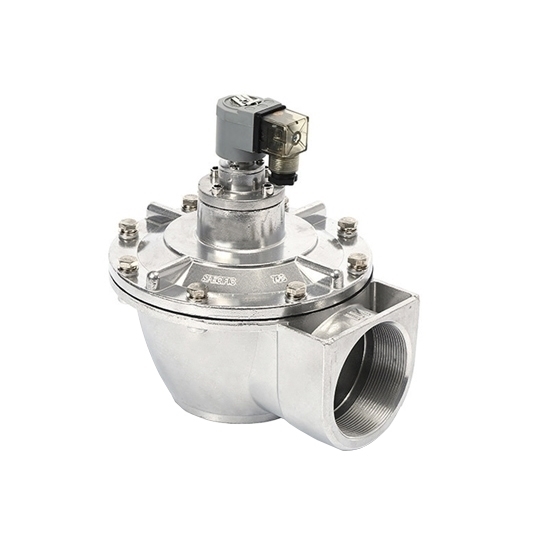

2-1/2" Pulse Solenoid Valve For Dust Collector

0 reviews • Write a review

from

$143.69

Ex Tax: $143.69

Stock: In Stock
Model: RDDLZ-PULSE-62S
Weight: 1.00
SKU: RDDLZ-PULSE-62S

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pulse valve cannot be used for drinking water.

RDDLZ pulse solenoid valve is a type of valve used in various industrial applications, particularly in systems that involve the control of gases, such as air or other gases. Pulse valves are commonly used in dust collection systems, baghouse filters, and similar applications to help clean and maintain the efficiency of these systems.

Specification

Model: RDDLZ-SMFZ-62S
Port Size: G2-1/2 inch
Connection Type: Threaded Type
Channel Position: Right Angle
Flow Direction: Unidirectional
Applicable Media: Air
Voltage (Optional): AC110V, AC220V, DC24V
Coil Power: 20VA
Temperature: -5~60℃
Working Pressure: 0.3~0.8MPa
Max. Pressure: 1.0MPa
Relative Humidity: ≤80%RH
Diaphragm Life: More Than 1 Million Times
Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Model	Port Size	A	B	C
RDDLZ-SMFZ-62P	G2-1/2 inch	211	185	220

Details

Tips: Dust collector pulse valve advantages

Dust collector pulse valves play a crucial role in the efficient operation of dust collection systems, offering several key advantages. Firstly, they enable the periodic release of compressed air into the filter bags, creating a powerful pulse that dislodges accumulated dust and particulate matter. This helps maintain optimum filtration efficiency, prolonging the lifespan of filter bags and reducing maintenance costs.

Additionally, pulse valves are known for their rapid response times, ensuring timely cleaning cycles without interrupting the overall dust collection process. This enhances the system's continuous operation and minimizes downtime.

Furthermore, these valves are energy-efficient, as they only consume compressed air during the short pulse duration, resulting in reduced operational costs. Their reliability and robust design make them suitable for demanding industrial environments. Pulse valves offer versatility in controlling the cleaning frequency and intensity, adapting to changing dust loads and optimizing overall system performance. In summary, dust collector pulse valves contribute to cost-effective, reliable, and efficient dust collection processes in industrial settings.
