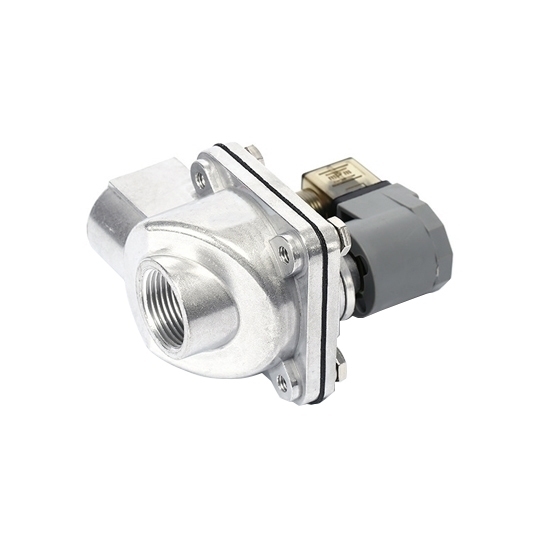

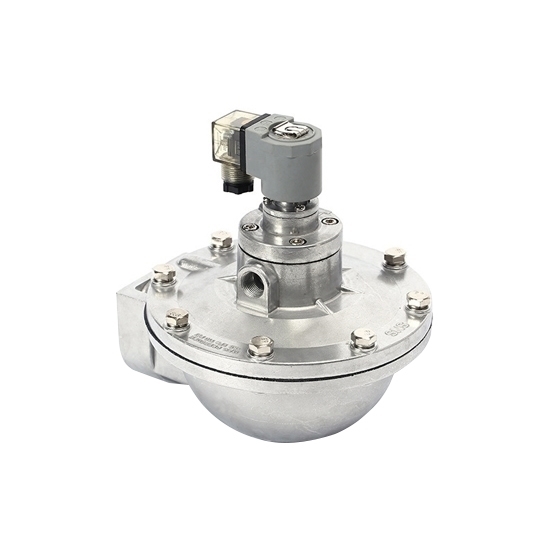

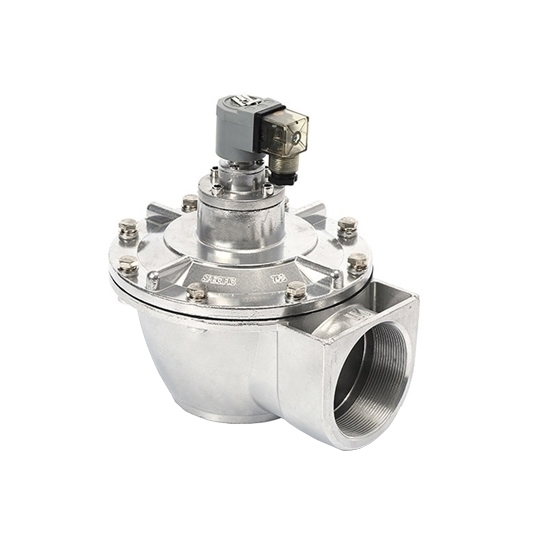

1-1/2" Pulse Solenoid Valve For Dust Collector

0 reviews • Write a review

from

$91.59

Ex Tax: $91.59

Stock: In Stock
Model: RDDLZ-PULSE-35P
Weight: 1.00
SKU: RDDLZ-PULSE-35P

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pulse valve cannot be used for drinking water.

RDDLZ pulse solenoid valve is a type of valve used in various industrial applications, particularly in systems that involve the control of gases, such as air or other gases. Pulse valves are commonly used in dust collection systems, baghouse filters, and similar applications to help clean and maintain the efficiency of these systems.

Specification

Model: RDDLZ-SMFZ-35P
Port Size: G1-1/2 inch
Connection Type: Threaded Type
Channel Position: Right Angle
Flow Direction: Unidirectional
Applicable Media: Air
Voltage (Optional): AC110V, AC220V, DC24V
Coil Power: 20VA
Temperature: -5~60℃
Working Pressure: 0.3~0.8MPa
Max. Pressure: 1.0MPa
Relative Humidity: ≤80%RH
Diaphragm Life: More Than 1 Million Times
Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Model	Port Size	A	B	C
RDDLZ-SMFZ-35P	G1-1/2 inch	121	110	143

Details

Tips: What causes Pulse solenoid valve failure?

Pulse solenoid valve failures can occur due to various factors. Common causes include:

Contaminants: Dust, debris, or foreign particles can accumulate in the valve, blocking the flow path or damaging internal components.
Corrosion: Exposure to corrosive fluids or environments can lead to deterioration of the valve's materials, affecting its performance.
Overheating: Excessive temperature can cause the solenoid coil to burn out or damage the valve's seals.
Voltage fluctuations: Inconsistent voltage can lead to erratic valve behavior, coil burnout, or insufficient force to actuate the valve.
Mechanical wear: Frequent cycling or poor maintenance can result in wear and tear, affecting the valve's sealing surfaces and moving parts.
Seal degradation: The rubber or elastomeric seals can deteriorate over time, causing leaks and reduced sealing effectiveness.
Coil issues: Problems with the solenoid coil, such as short circuits or open circuits, can prevent proper actuation.

Preventive maintenance, proper filtration, and environmental considerations are essential to minimize pulse solenoid valve failures and ensure reliable operation in various applications.
