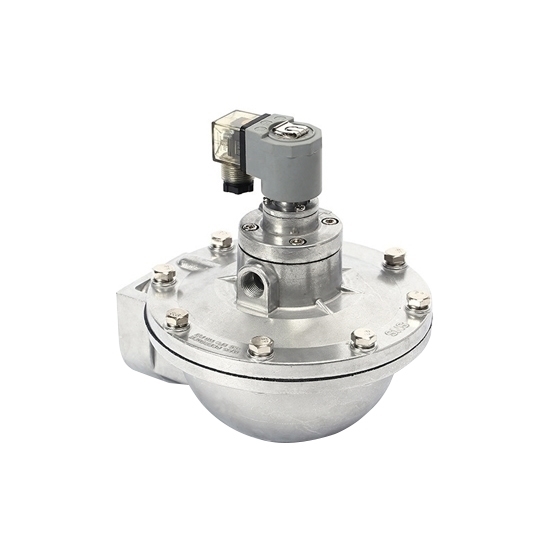

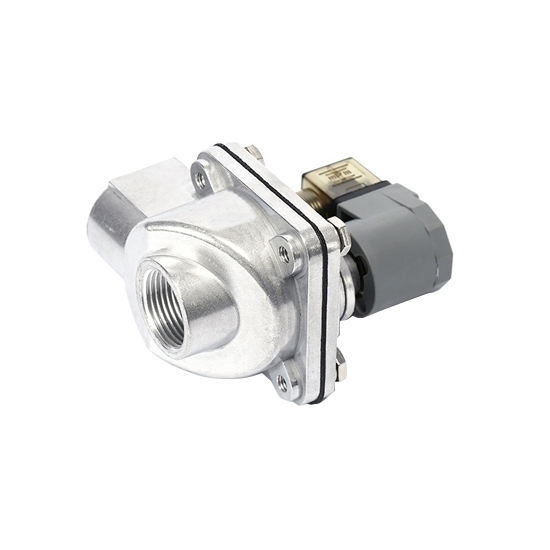

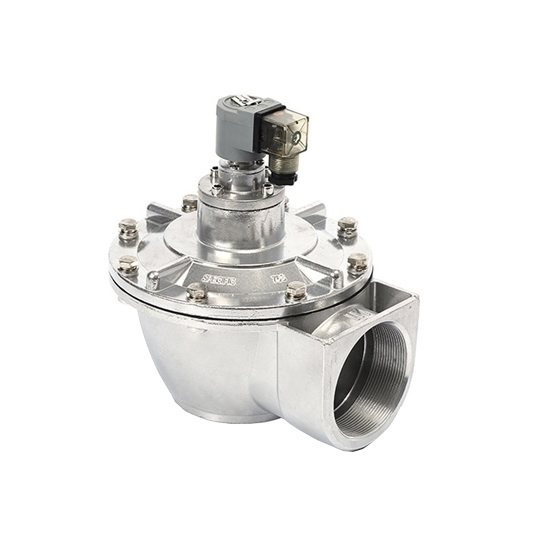

1/2" Pulse Solenoid Valve For Dust Collector

0 reviews • Write a review

from

$69.39

Ex Tax: $69.39

Stock: In Stock
Model: RDDLZ-PULSE-15P
Weight: 1.00
SKU: RDDLZ-PULSE-15P

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pulse valve cannot be used for drinking water.

RDDLZ pulse solenoid valve is a type of valve used in various industrial applications, particularly in systems that involve the control of gases, such as air or other gases. Pulse valves are commonly used in dust collection systems, baghouse filters, and similar applications to help clean and maintain the efficiency of these systems.

Specification

Model: RDDLZ-SMFZ-15P
Port Size: G1/2 inch
Connection Type: Threaded Type
Channel Position: Right Angle
Flow Direction: Unidirectional
Applicable Media: Air
Voltage (Optional): AC110V, AC220V, DC24V
Coil Power: 20VA
Temperature: -5~60℃
Working Pressure: 0.3~0.8MPa
Max. Pressure: 1.0MPa
Relative Humidity: ≤80%RH
Diaphragm Life: More Than 1 Million Times
Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Model	Port Size	A	B	C
RDDLZ-SMFZ-15P	G1/2 inch	104	82	126.5

Details

Tips: Pulse solenoid valve applications

Pulse solenoid valves are versatile devices used in various applications where precise control of fluid or gas flow is essential. They operate by rapidly opening and closing, allowing or blocking flow based on an electrical signal. Common applications include:

Dust Collection Systems: Pulse solenoid valves are integral in dust collectors, enabling the controlled release of short bursts of compressed air to clean filters, preventing clogging and maintaining system efficiency.
Inkjet Printers: These valves control the release of ink droplets in inkjet printing, ensuring accurate and high-speed printing.
Medical Equipment: In medical devices like nebulizers and blood analyzers, pulse solenoid valves regulate the flow of air, gases, or fluids with precision, crucial for patient care and diagnostics.
Agricultural Irrigation: They automate the flow of water in irrigation systems, optimizing water usage and crop health.
Automated Manufacturing: Pulse solenoid valves are used in automated assembly lines to precisely dispense adhesives, coatings, or other fluids.
HVAC Systems: These valves control airflow in heating, ventilation, and air conditioning systems, enhancing energy efficiency and comfort.

Their ability to provide rapid and reliable flow control makes pulse solenoid valves crucial in numerous industries and applications.
