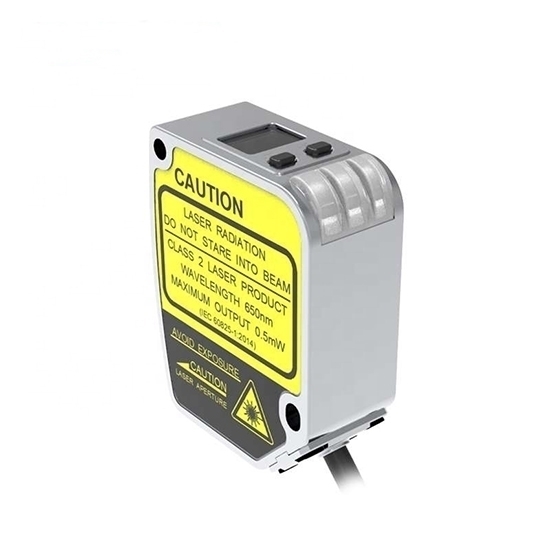

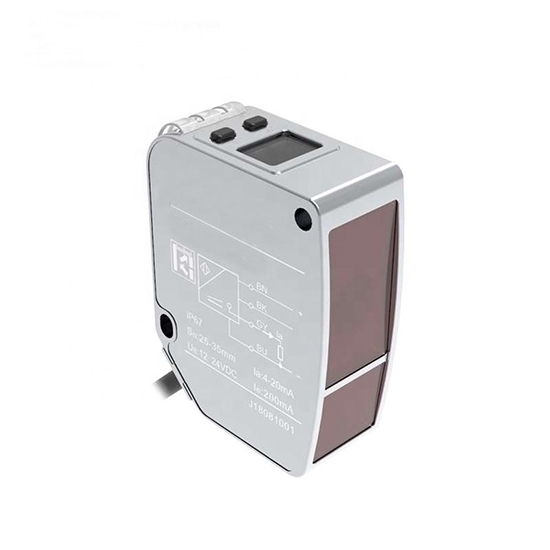

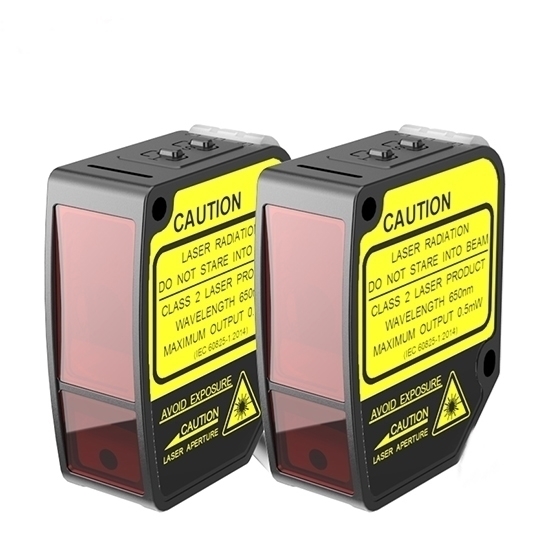

Laser Distance Sensor, 150-1000mm

Laser Distance Sensor, 150-1000mm
Laser Distance Sensor, 150-1000mm
Laser Distance Sensor, 150-1000mm
Laser Distance Sensor, 150-1000mm
Laser Distance Sensor, 150-1000mm
Laser Distance Sensor, 150-1000mm
Laser Distance Sensor, 150-1000mm
0 reviews • Write a review
from
$1,302.11
Ex Tax: $1,302.11
  • Stock: In Stock
  • Model: RDDLZ-LDS-PDACC100
  • Weight: 1.00
  • SKU: RDDLZ-LDS-PDACC100

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

  • Exquisite appearance and light aluminum housing, easy to mount and dismount.
  • Convenient operation panel with visualized OLED display to complete all function settings fastly.
  • Small diameter light spot to accurately measure very tiny objects.
  • Key or remote teach-in to easily set response time for different applications.
  • Powerful function setting and flexible output way.
  • Complete shielded desgin, stronger anti-interference perfomance.
  • IP67 protection degree, able to work in water or dusty environment.

Specification

ModelRDDLZ-PDA-CC100DGRRDDLZ-PDA-CC100TGI
Linear Accuracy±0.6% F.S±0.3% F.S (150-450mm) / ±0.6% F.S (450-1000mm)
Supply Voltage10-30V DC12-24V DC
Output SignalRS-485 (Support Modbus protocol)4-20mA (Load resistance< 390Ω)
Connection2m 5-pins/ 4-pin PVC cable2m 4-pin PVC cable
Light SourceRed laser (650nm)
Laser Class Class 2
Spot DiameterΦ3mm@1000mm
Measuring Range150-1000mm
Resolution50um@150mm; 2000@1000mm
Repeated Accuracy 100um@150mm; 520um@500um; 4000um@1000mm
Voltage Drop<2.5V
Power Consumption≤ 700mW
Load Current200mA
Circuit ProtectionShort circuit, reverse polarity, overload protection
Ambient Temperature-10-50℃
Temperature Drift±0.02% F.S./℃
Response Time2ms/ 16ms/ 40ms (configurable)
Ambient Humidity35-85% RH (No condensation)
Anti-ambient LightIncandescent light: <3,000lux
Impluse Withstand500m/s² (About 50G)3 times each in X, Y, Z directions
Vibration Resistance10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
Protection Degree IP67
MaterialHousing: Aluminum; Lens cover: PMMA; Display panel: PC
AccessoryScrew (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
Dimension65*51*23mm
CertificatesCE, UL, CCC, ROHS
Warranty12 months

Remark:

①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card.
②The statistical data follows the 3σ criteria
③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
④Slave address,baud rate setting only for RS-485 series.
⑤Protecion circuit only for switch output.

Dimension (unit=mm)



Accessory Dimension

Wiring diagram

Remark:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

Installation of laser distance sensor

Tips: Panel Introduction of Laser Distance Sensor.

1. Button
Used to set the switch output logic of the sensor,operating point,reset,unlock,address,baud rate query,data filtering and analog.

TToggle buttom Switch buttom
SSet buttom Set buttom

2. Indicator
Used to power indicator,sensing indication,alarm indicator.

Product nameColorAlways on/ offFlashing
LPGrenn LEDPower indicator
L1Yellow LEDSensing indicatorAlarm
L2Yellow LED

3.Display
Used to display key status,current measured value,current output value,current setting status, setting menu.

Display contentDescription
Button statusButton LOCK, Button UNLOCK, RUN
Sensing distanceReal-time display of the distance value and displacement value
measured by current sensor.
Analog outputReal-time display of current sensor measurement value conversion
output current value.
No DISData transmission error, no measured value display (sensor failure).
Out of rangeOut of sensing range
OverloadSwitch output overload
OKParameter setting successfully
ErrorParameter setting failed (set point is outside the sensing range)
