Bluetooth USB Temperature Data Logger With Probe

0 reviews • Write a review

from

$69.59

Ex Tax: $69.59

Stock: In Stock
Model: RDDLZ-TDL-U06L
Weight: 1.00
SKU: RDDLZ-TDL-U06L

Available Options

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

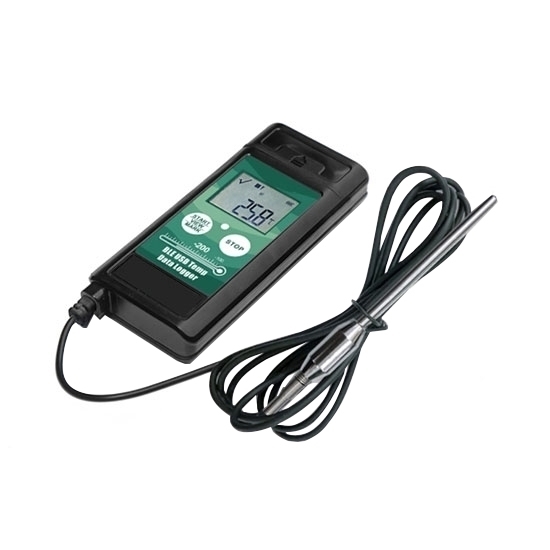

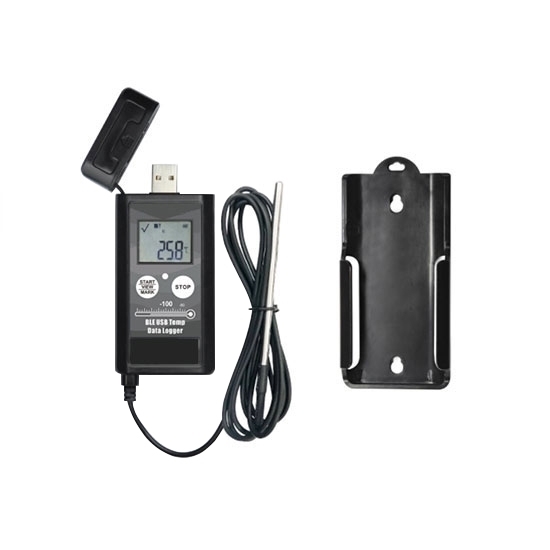

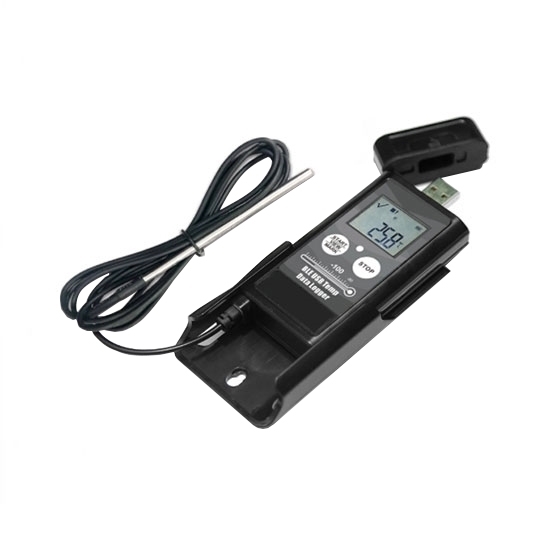

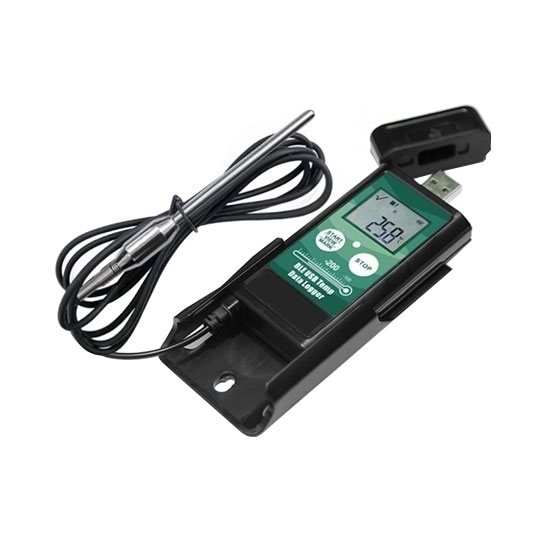

Temperature data logger with 1.5m external temperature probe is perfect for monitoring cryogenic freezers in -200℃. It has flight mode for air transportation, USB and Bluetooth connection to get PDF/CSV report or logging data.

Specification

Model	RDDLZ-TDL-U06L100	RDDLZ-TDL-U06L200
Usage Type	Multi-use
Measuring Range	-100℃ ~ +120℃	-200℃ ~ +120℃
Temperature Accuracy	±0.3℃ (-20℃ ~ +40℃)	±0.3℃ (-20℃ ~ +40℃)
	0.5℃ (-40℃ ~ -20℃/+40℃ ~ +80℃)	0.5℃ (-40℃ ~ -20℃/+40℃ ~ +80℃)
	±1.0℃ (-100℃ ~ -40℃/+80℃ ~ +120℃)	±1.0℃ (-120℃ ~ -40℃/+80℃ ~ +120℃)
Communication Interface	USB 2.0 and Bluetooth 4.2
Sensor	External Temperature Probe, 1.5m
Temperature Resolution	0.1℃
Data Storage Capacity	32000
Start Mode	Push-To-Start or Timing Start
Logging Interval	Programmable (10s ~ 18h) [Default: 10mins]
Alarm Range	Programmable [Default: <2℃ or >8℃]
Alarm Delay	Programmable (0 ~ 960mins) [Default: 10mins]
Alam Delay	Programmable (0 ~ 254mins) [Default: 30mins]
Battery	Typically 1 years, ER14250 Lithium Battery (Replaceable)
Report Generation	Automatic PDF/CSV Report Generation
Software	Temp Logger App (For Android and IOS)
	Management Software (For Windows, 21 CFR 11 Compliant)
Waterproof Level	IP65
Demension	115mm * 50mm * 20mm
Net Weight	100g

Details

LCD Screen Display

If there E001 or E002 on the screen, please check:

If the sensor is not connected or broken
If over the temperature detect range

Applications

How to Use

Start recording
Insert the sensor completely into the temperature data logger. Press and hold the left button for more than 3s until the LED light turns green, and the "▶" or "WAIT" displays on the screen, which indicates the logger is started.
Mark
When the device is recording, press and hold the left button for more than 3s, and the screen will switch to the “MARK” interface. The number of “MARK” will increase by one, indicating data was marked successfully.
Stop recording
Press and hold the right button for more 3s until the LED light turns red, and the "■" displays on the screen, indicating stop recording successfully.
Turn on/off Bluetooth
Press and hold the two buttons for more than 3s at the same time, until the red light flashes quickly, and the Bluetooth logo displays on the screen or disappears, indicating the Bluetooth was turn on or off. If the temperature data logger is in flight mode, press and hold the two buttons for more than 3s will quit the flight mode.
Get report
After recording, there are two ways to get report: connect the device with USB port of PC or using Temp Logger App on smart phone, it will automatically generate PDF and CSV report.
