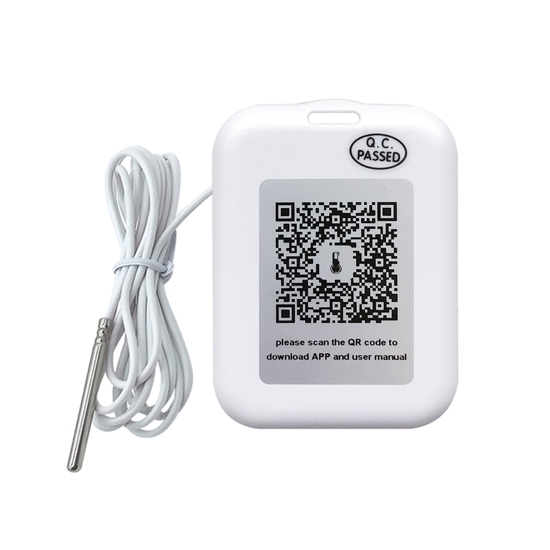

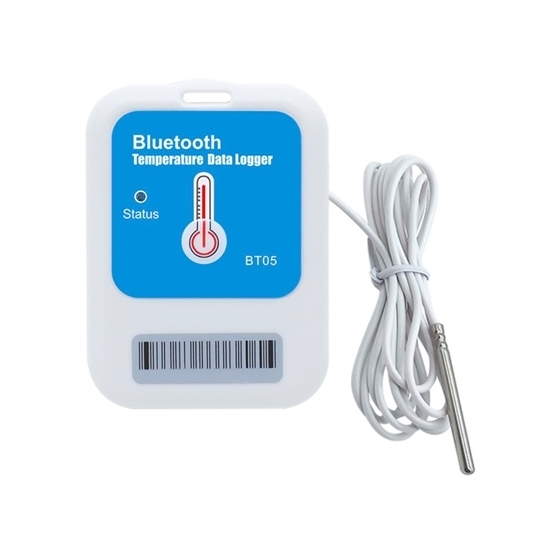

Bluetooth Temperature Data Logger

Bluetooth Temperature Data Logger
Bluetooth Temperature Data Logger
Bluetooth Temperature Data Logger
Bluetooth Temperature Data Logger
Bluetooth Temperature Data Logger
0 reviews • Write a review
from
$67.39
Ex Tax: $67.39
  • Stock: In Stock
  • Model: RDDLZ-TDL-BT05B
  • Weight: 1.00
  • SKU: RDDLZ-TDL-BT05B

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Bluetooth temperature data logger with high sensitive external sensor can display real-time data. This temp data recorder can store history data for data comparison, easy to use and convenient for shipping, vaccine storage and cold chain.

Feature

  • High accuracy and stability.
  • With Bluetooth 4.1 (Nordic Chip).
  • Long distance wireless transfer.
  • External highly sensitive temperature sensor.
  • Temp data recorder can display real-time data.
  • This temperature data logger can store 12000 pieces of temperature data.
  • History report can be sent to specified email.
  • LED light indicating for different status.
  • Temp data recorder can choose time to query data, every time query of data, the stored data can be saved in history.
  • It can set normal storage temperature data interval and alarm storage temperature data interval.

Specification

ModelRDDLZ-TDL-BT05B
Dimension66mm*48mm*10mm
Net Weight25g
Signal Transmission Frequency2.400 - 2.4835GHz
Protocol StandardBluetooth 4.1
Modulation ModeGFSK
Send Interval2s (default)
Built-in BatteryPanasonic CR2450, 620mAh/ 3V
Output Power-4dBm, Adjustable
Communication Rate1Mbps
Transmission Distance55 meters, Adjustable
Storage CapacityCan save 12000 Temperature Data
Battery Life1.5 Years (Depends on the mode of operation)
Operating Temperature Range-25℃~+60℃
Detecting Temperature Range-40℃~+80℃ (Just for the temperature sensor)
Temperature Detection Accuracy±0.5℃ (-20℃~+40℃), ±1℃ (Others)


Dimension

How to use the software on Android/IOS?

  1. Find device. Scan the barcode on device with this software.
  2. Read time data. Check the real time temperature data on phones, you can see device name/temperature value/battery level.
  3. Data records. Check the historical records with a graphic information.
  4. Device setting. Set the device as you like on TX power/storage interval/alarm setting/memory clean.

Application

Tips: Bluetooth temperature data logger for collection field

Among the various environmental factors that affect the preservation of collections and archives, the most basic and often working factors are the temperature and humidity of the air. The temperature and humidity data logger is mainly for on-site inspection and display of the temperature and humidity in the museum. It can view the temperature and humidity information in real time through the computer terminal and mobile phone terminal, or store, query and print historical data. When the temperature and humidity of the monitoring point exceeds the standard value, the management personnel will receive the alarm information sent by the system and take effective measures in time to prevent the hidden danger of damage to the collection due to the temperature and humidity environment.
