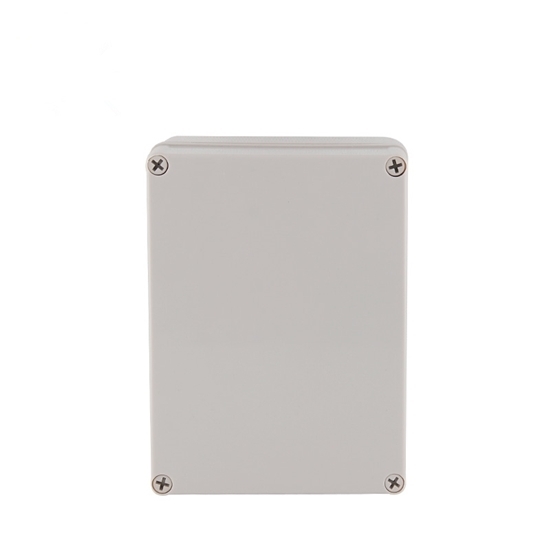

IP66 Waterproof Electrical Junction Box

0 reviews • Write a review

from

$27.88

Ex Tax: $27.88

Stock: In Stock
Model: RDDLZ-WJB-66
Weight: 1.00
SKU: RDDLZ-WJB-66

Available Options

Model

Textarea

Material of Waterproof Junction Box

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Material of the waterproof electrical junction box can select high-performance ABS/PC plastic or aluminum, which is impact resistant, good toughness, anti-aging and long service life.
Bottom of the electrical junction box is provided with mounting posts and embedded copper nuts, it is convenient for fixing electrical components such as terminal, guide rails, and circuit boards.
Can be customized according to user requirements, such as hole processing and terminal, connector.

Specification

Model	RDDLZ-WJB-AG	RDDLZ-WJB-AT	RDDLZ-WJB-FA
Waterproof Rating	IP66	IP66	IP67
Material	Body: ABS Door: Solid	Body: ABS Door: PC	Aluminum Alloy
Operating Temperature	-20℃~90℃	-20℃~90℃	-40℃~120℃
Size	Refer to the size chart
Certification	CE

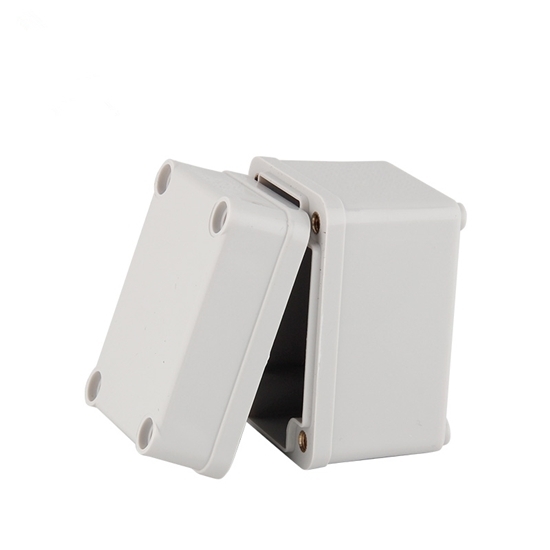

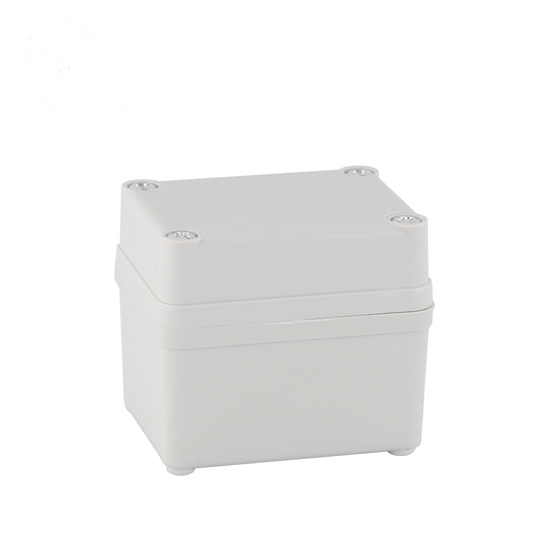

IP66 ABS Waterproof Electrical Junction Box Diagram

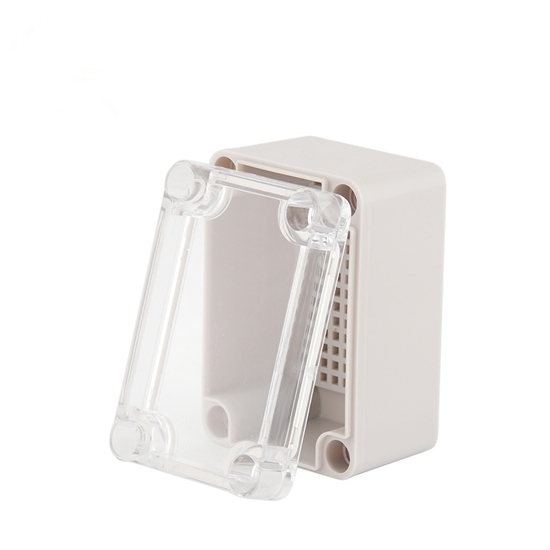

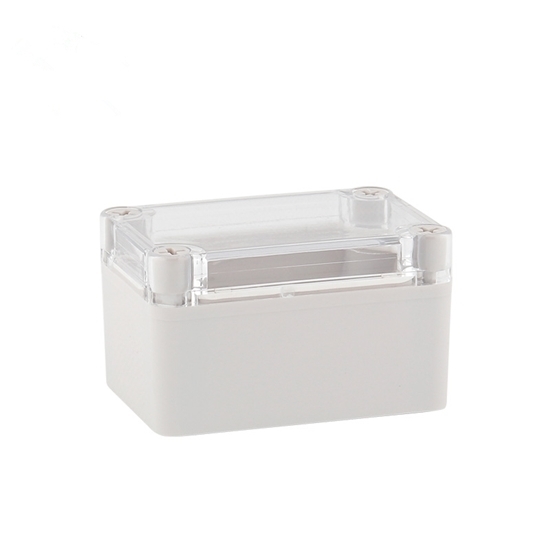

IP66 ABS+PC Waterproof Electrical Junction Box Diagram

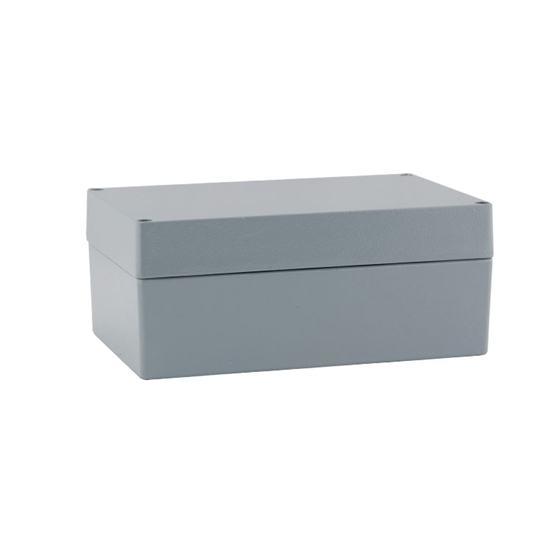

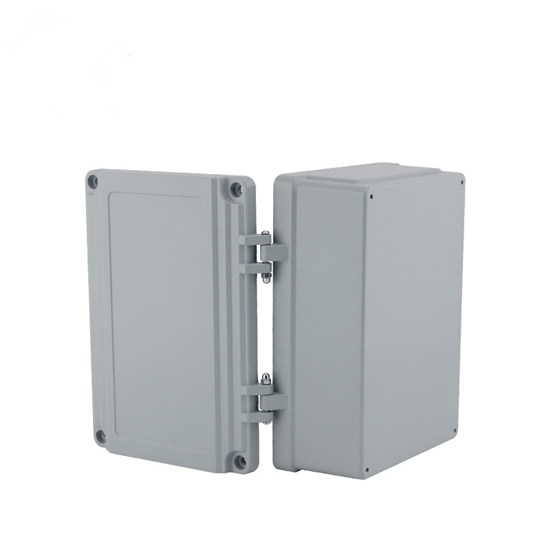

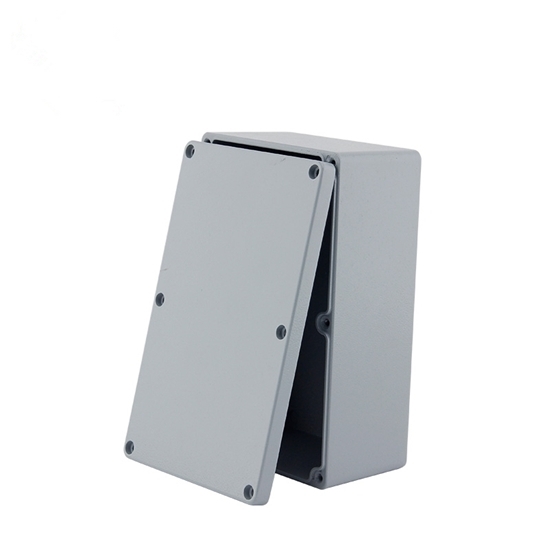

IP67 Aluminum Waterproof Electrical Junction Box Diagram

Tips: Selection of PC cover for waterproof electrical junction box.

Waterproof electrical junction box is mainly used for indoor and outdoor electrical, communication, fire-fighting equipment, steel smelting, petrochemical, electronics, electricity, large-scale factory equipment, etc. Material is available in ABS and ABS + PC transparent cover. So, how to determine whether you need to select a PC transparent cover?

Select according to aesthetic requirements. The waterproof junction box with PC transparent cover looks more beautiful, especially when the light inside is on.
Select based on purchase cost. Generally speaking, for waterproof junction boxes with same specifications, the box with PC transparent cover will be more expensive. Therefore, in an unnecessary situation, to save costs, users can select conventional ABS waterproof junction box.
Select according to product application. For example, when the waterproof junction box is used with button box and instrument box, such products may need to display the reading of internal instrument. If you do not use PC transparent cover, you will not see it.
