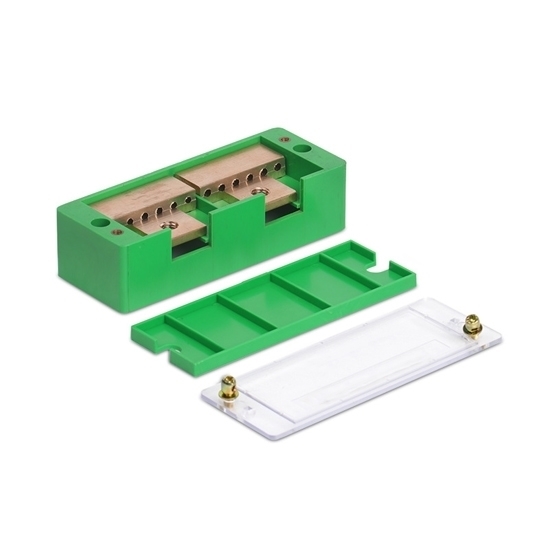

Low price 2 in 4/6/8/12-out wiring junction boxes with terminal blocks available online. The terminal junction box offers excellent safety protection, good insulation, resistance to aging and high temperature, ideal for various types of wire and cable connections.

Specifications

• Model: RDDLZ-FJ6
• Main Line Range: 4~35mm²
• Outlet Range: 0.75~10mm²
• Type: 2 in 4/6/8/12 out (Optional)
• Interface Form: Directly Plug
• Application: Communication Cable
• Insulation Voltage: 660V 50Hz/60Hz
• Insulation Resistance: 40MΩ
• Shell Material: Polycarbonate
• Conductor Material: Brass
• Working Temperature: -40~120℃

Features

• The wiring terminal box and junction box have excellent electrical conductivity and high tensile strength.
• It has good safety protection performance, good insulation, anti-aging and high temperature resistance.
• This terminal junction box has two independent copper parts built in, with a gap design in the middle, making it safe and reliable.
• The lift-type design of the large cable entry hole allows direct access to thick cables without additional assistance.

Dimensions (Unit: mm)

Applications

This terminal junction box is suitable for installation in various households and industrial places, such as: household appliances, electrical industry, distribution cabinets and distribution boxes, machinery equipment factories, shipyards, etc.

Tips:  Why choose a terminal junction box?

• Connection and Termination: Terminal junction boxes provide a secure and organized point for connecting and terminating electrical wires or cables. They allow for the efficient splicing of wires, connecting multiple circuits, or terminating cables from various sources.
• Safety and Hazard Mitigation: These boxes serve as a protective enclosure for electrical connections, reducing the risk of accidental contact with live wires. They also shield the connections from environmental factors such as dust, moisture, or physical damage, minimizing the chances of electrical hazards.
• Maintenance and Troubleshooting: Terminal junction boxes facilitate easier maintenance and troubleshooting of electrical circuits. By providing a centralized and accessible location for connections, they simplify the task of inspecting, repairing, or modifying the wiring, ensuring the system's reliability and longevity.
