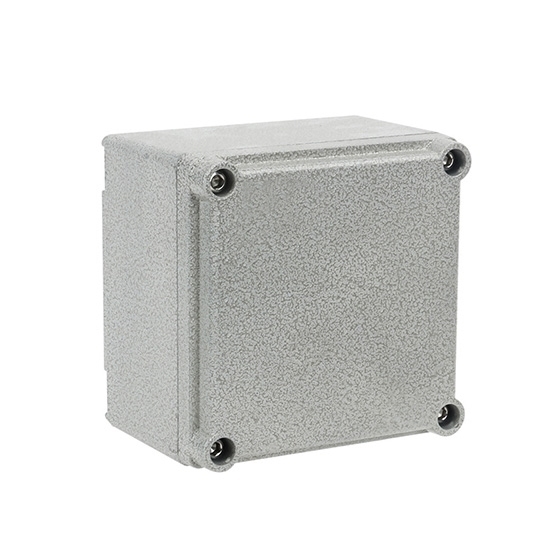

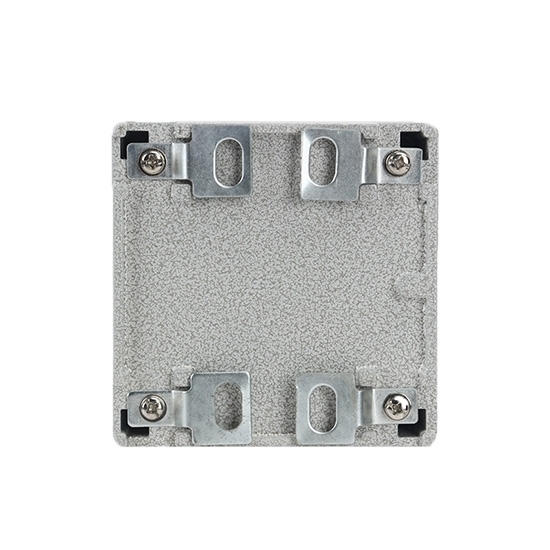

Ex-proof junction box is designed for use in hazardous environments, featuring a corrosion level of WF1 and is constructed from durable aluminum alloy. Ex e junction box operates effectively within a temperature range of -20°C to +40°C. This increased safety junction box is ideal for petroleum and chemical industries, offshore platforms, docks, and other locations where safety and reliability are paramount.

Features

• Explosion-proof junction box features a housing made of aluminum alloy die-casting or welded steel plate, with a high-pressure electrostatic spray finish.
• Inside, the junction box is equipped with terminal blocks, and the number of terminals can be customized according to requirements.
• The housing can have multiple entry points on all four sides, with the direction, specifications, and quantity of the entry points customizable based on specific needs.
• The introduction device can be equipped with BDM series explosion-proof cable glands or BTL series explosion-proof filling seals.
• The entry points typically use pipe threads and come with cable introduction devices.
• Increased safety junction box supports wiring via steel pipes or cables.

Specification

• Model: RDDLZ-BJX-01
• Protection Level: IP65
• Product Size: 135×135×97mm (For more options please contact us)
• Corrosion Level: WF1
• Material: Aluminum alloy
• Rated Voltage: 220/380V
• Rated Current: 20A
• Atmospheric pressure: 80KPa~110KPa
• Operating environment temperature: -20℃~+40℃
• Relative humidity: not more than 95% (+25℃)
• Inlet thread: G1/2"~G2" (Please contact us for specific dimensions)
• Cable outer diameter: 8~80mm (Please contact us for specific dimensions)
• Customization: Supported
• Explosion-proof Mark: Exe IIC T6Gb, Ex tD A21 IP65 T80℃
• Standards: GB3836.1-2010, GB3836.2-2010, GB12476.1-2013, GB12476.5-2013

Product size (mm)

Note: We can provide explosion proof junction boxes in the above sizes, with a full range of models available and customization options supported. Please feel free to contact us for a specific quotation if you need.

Tips: Installation of explosion-proof junction box

• Before installation, check whether the parameters listed on the nameplate meet the actual use conditions.
• Before installation, please carefully check the surface of the shell. If there is damage, deformation, looseness, etc., it is not allowed to be installed.
• During installation, the internal and external grounding screws must be reliably grounded.
• During installation, inspection and maintenance, the power supply must be disconnected before opening the cover, and the front power supply must be cut off first. It is strictly forbidden to open the cover with power on.
• After installation, the insulation resistance between the electrode and the shell should be checked before power is supplied. Power can only be supplied after it is normal.
• During installation and maintenance, attention should be paid to ensure that the sealing ring at the introduction device is pressed tightly, and the outer diameter of the inlet and outlet cables must meet the requirements of the sealing ring to prevent water from entering the shell or affecting the explosion-proof performance.
• Please check the sealing ring regularly and replace it in time if it is found to be aging.
