Note: This float valve cannot be used for drinking water.

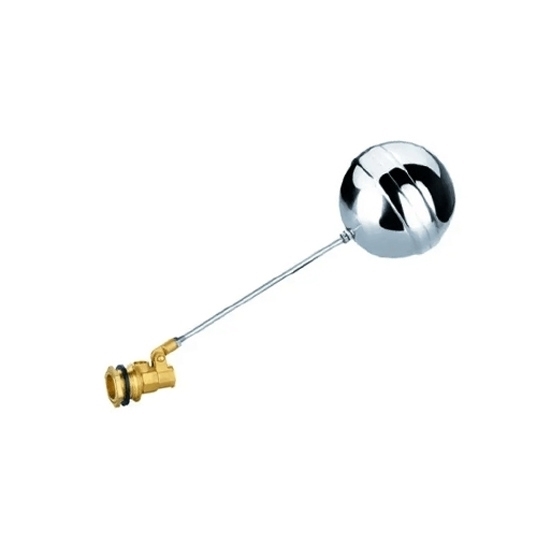

Reliable 1" (DN25) water tank float valve is used to control the water level in the tank. It is a simple mechanical device that works by opening and closing a valve as the water level in the tank rises and falls.

Specifications

• Model: RDDLZ-SS10080
• Nominal Diameter: 1 inch (DN25)
• Normal Pressure: 0.4MPa≤PW≤0.6MPa
• Connection Method: G Thread
• Working Medium: Water
• Working Temperature: 0°C≤T≤60°
• Material: Brass and Stainless Steel

Dimension (Unit: mm)

Applications

Stainless steel water tank float valve is specifically designed for use in water storage tanks to regulate the water level, typically used in residential, commercial, and industrial settings where a reliable and consistent water supply is required, also used in irrigation systems, livestock waterers, and fire protection systems.

Tips: What can a water tank float valve be used for?

A water tank float valve is a type of valve used to control the level of water in a tank or reservoir. Here are some common applications of water tank float valves:

• Water storage tanks: Water tank float valves are commonly used in water storage tanks to maintain a consistent water level. The float valve opens when the water level drops below a certain point, allowing water to flow into the tank until it reaches the desired level.
• Irrigation systems: Water tank float valves are also used in irrigation systems to regulate the water level in a holding tank or reservoir. This ensures that the water level remains constant, providing a reliable source of water for irrigation.
• Livestock watering: Water tank float valves are commonly used in livestock watering systems to provide a continuous supply of water for livestock. The float valve opens when the water level drops, allowing water to flow into the tank until it reaches the desired level.
• Cooling systems: Water tank float valves are also used in cooling systems to maintain the water level in a cooling tower. The float valve opens when the water level drops, allowing water to flow into the tower and maintain the desired water level.

In general, water tank float valves are an essential component of many water storage and processing systems, ensuring that the water levels are maintained at the desired level for optimal performance and safety.
