Note: This float valve cannot be used for drinking water.

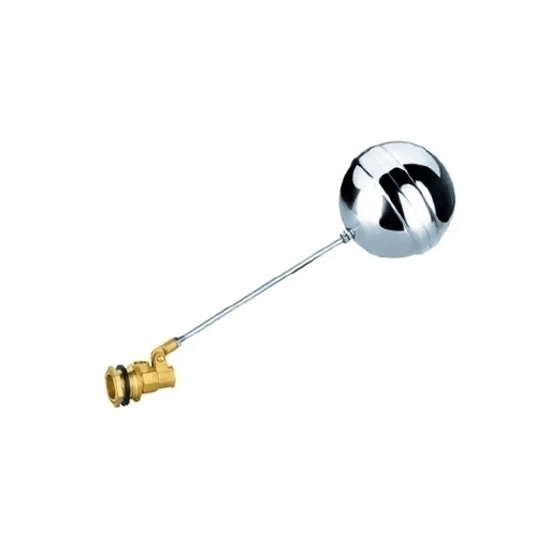

Cheap 2 inch (DN50) floating ball valve for sale online. High quality water tank float valve is commonly used in domestic water tanks, livestock watering systems, irrigation systems, and industrial water storage tanks.

Specifications

Model: RDDLZ-SS10080
Nominal Diameter: 2 inch (DN50)
Normal Pressure: 0.4MPa≤PW≤0.6MPa
Connection Method: G Thread
Working Medium: Water
Working Temperature: 0°C≤T≤60°
Material: Brass and Stainless Steel

Dimension (Unit: mm)

DN	L	B	D	Weight
50	146	30	280	1.1kg

Applications

Stainless steel water tank float valve is specifically designed for use in water storage tanks to regulate the water level, typically used in residential, commercial, and industrial settings where a reliable and consistent water supply is required, also used in irrigation systems, livestock waterers, and fire protection systems.

Tips: Float Valve vs. Ball Valve

Float valves and ball valves are two different types of valves used in plumbing systems. Here are some key differences between the two:

Function: A float valve is used to control the level of a liquid in a tank, while a ball valve is used to turn the flow of liquid on or off.
Design: A float valve has a float that rises or falls with the level of liquid in the tank, opening or closing a valve to regulate the flow of liquid. A ball valve has a ball inside the valve body that rotates to control the flow of liquid.
Application: Float valves are commonly used in water tanks, aquariums, and other liquid storage systems where it is important to maintain a consistent liquid level. Ball valves are used in a wide range of applications, including water supply systems, gas pipelines, and industrial processes.
Material: Float valves can be made from plastic, brass, stainless steel, and other materials. Ball valves are commonly made from brass, stainless steel, or PVC.

In summary, while both float valves and ball valves are used in plumbing systems, they serve different functions and have different designs and applications. Float valves are used to control liquid levels in tanks, while ball valves are used to control the flow of liquid in pipelines and other systems.
